Xerox WorkCentre 7225 User Manual

Maintenance
Xerox
®
WorkCentre
®
7220/7220i/7225/7225i Color Multifunction Printer 195
User Guide

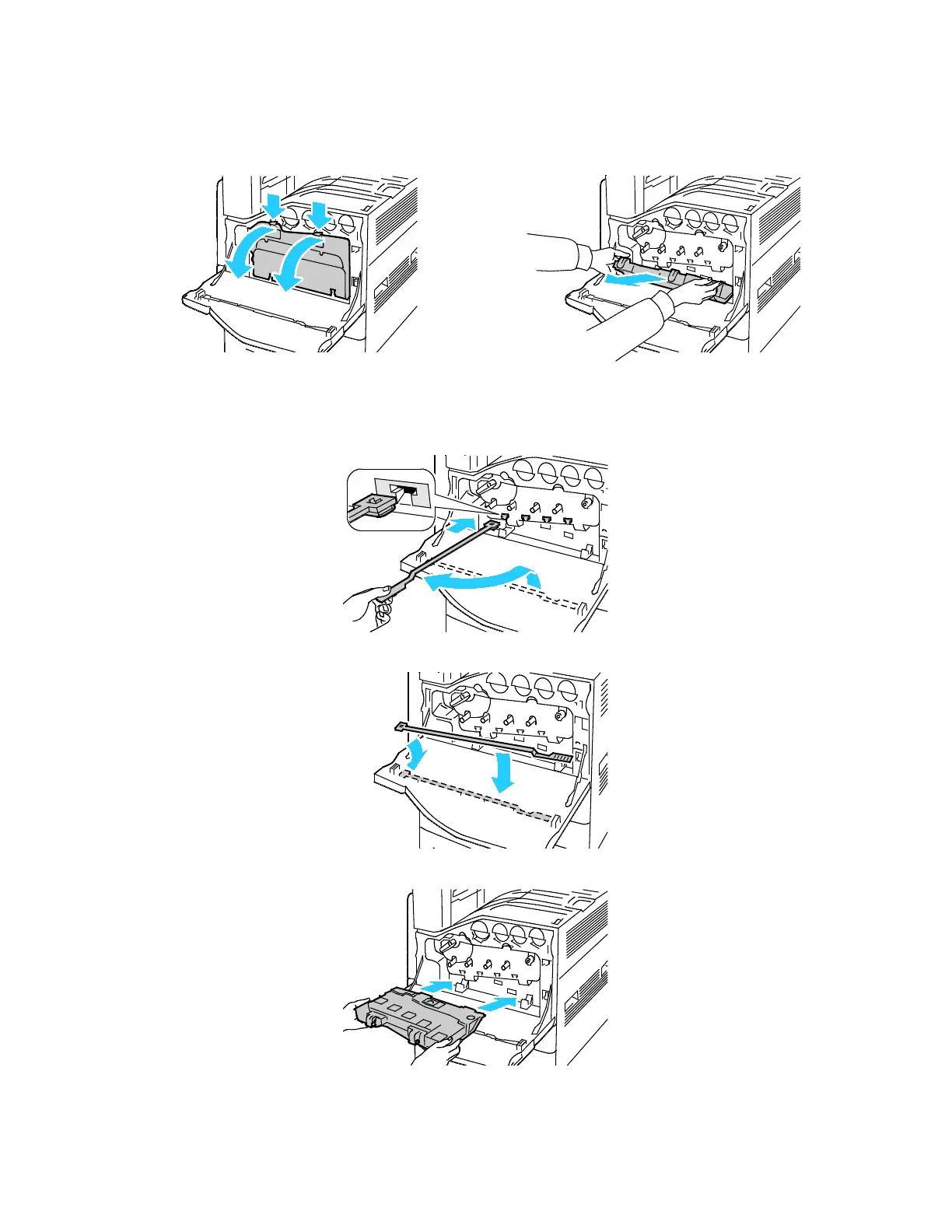

4. Remove the waste container by pushing down the orange tabs and pulling the waste container
toward you.
5. Remove the laser window cleaning wand from inside the front door.
6. Insert the laser window cleaning wand slowly into each slot until it stops, then slide out the tool.
Repeat for each laser lens.
7. Store the laser window cleaning wand in the front door.
8. Align the bottom of the waste container with the tabs.

Xerox WorkCentre 7225 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Duplex Printing	Standard
Functions	Print, Copy, Scan, Fax
Memory	2 GB
Fax Speed	33.6 Kbps
Print Speed	Up to 25 ppm
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Hard Drive	160 GB
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	640 x 670 x 1135 mm (with optional feeder)
