MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide 123
UG257 (v1.1) December 5, 2007 www.xilinx.com
Six-Pin Accessory Headers
R
Six-Pin Accessory Headers
The 6-pin accessory headers provide easy I/O interface expansion using the various
Digilent Peripheral Modules (see “Related Resources,” page 126). The location of the 6-pin
headers is provided in Figure 15-1, page 115.
Header J1
The J1 header, shown in Figure 15-8, is the top-most 6-pin connector along the right edge of
the board. It uses a female 6-pin 90° socket. Four FPGA pins connect to the J1 header,
J1<4:1>. The board supplies 3.3V to the accessory board mounted in the J1 socket on the
bottom pin.
Header J2
The J2 header, shown in Figure 15-9, is the bottom-most 6-pin connector along the right
edge of the board. It uses a female 6-pin 90° socket. Four FPGA pins connect to the J2
header, J2<4:1>. The board supplies 3.3V to the accessory board mounted in the J4 socket
on the bottom pin.

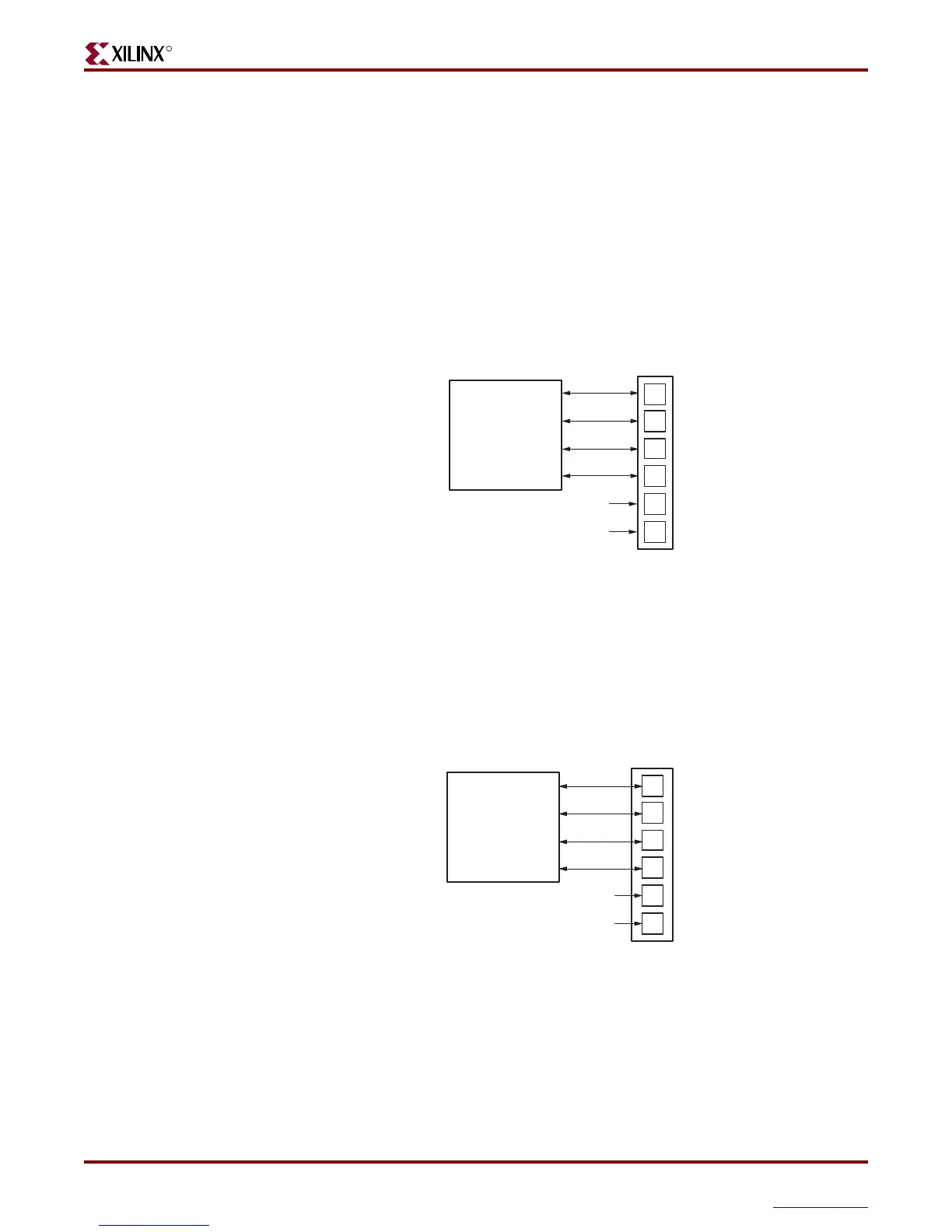

Figure 15-8: FPGA Connections to the J1 Accessory Header
J1
(V7)
J1<0>
J1<1>
J1<2>
J1<3>
(E15)
(N14)
(N15)
Spartan-3E FPGA
GND
3.3V
UG257_15_08_082907
Figure 15-9: FPGA Connections to the J2 Accessory Header
J2
(P12)
J2<0>
(N12)
J2<1>
(V6)
J2<2>
(V5)
J2<3>
Spartan-3E FPGA
GND
3.3V
UG257_15_09_082907
