Rotary Push-Button Switch
R
In some applications, the BTN_SOUTH push-button switch is also a soft reset that
selectively resets functions within the FPGA.
UCF Location Constraints
Figure 2-5 provides the UCF constraints for the four push-button switches, including the
I/O pin assignment and the I/O standard used, and defines a pull-down resistor on each
input.
Rotary Push-Button Switch
Locations and Labels
The rotary push-button switch is located in the center of the four individual push-button
switches, as shown in Figure 2-3. The switch produces three outputs. The two shaft
encoder outputs are ROT_A and ROT_B. The center push-button switch is ROT_CENTER.
Operation
The rotary push-button switch integrates two different functions. The switch shaft rotates
and outputs values whenever the shaft turns. The shaft can also be pressed, acting as a
push-button switch.
Push-Button Switch
Pressing the knob on the rotary/push-button switch connects the associated FPGA pin to
3.3V, as shown in Figure 2-6. Use an internal pull-down resistor within the FPGA pin to
generate a logic Low. Figure 2-9 shows how to specify a pull-down resistor within the UCF.
There is no active debouncing circuitry on the push button.

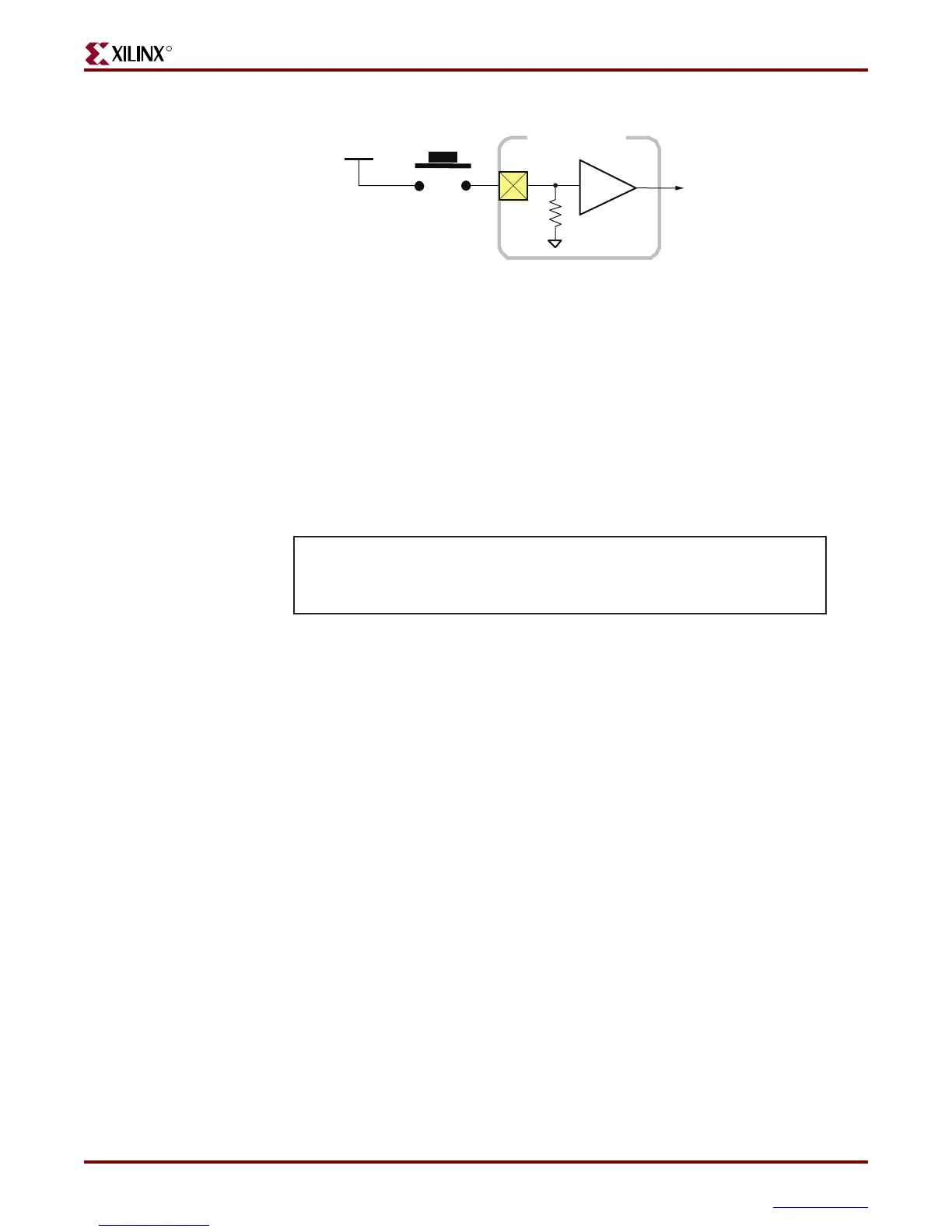

Figure 2-4: Push-Button Switches Require an Internal Pull-Down Resistor in FPGA
Input Pin
UG227_02_04_060206
BTN_* Signal
Push Button
3.3V
FPGA I/O Pin
Figure 2-5: UCF Constraints for Push-Button Switches
NET "BTN_EAST" LOC = "H13" | IOSTANDARD = LVTTL | PULLDOWN ;
NET "BTN_NORTH" LOC = "V4" | IOSTANDARD = LVTTL | PULLDOWN ;
NET "BTN_SOUTH" LOC = "K17" | IOSTANDARD = LVTTL | PULLDOWN ;
NET "BTN_WEST" LOC = "D18" | IOSTANDARD = LVTTL | PULLDOWN ;
UG257_02_05_060206
