QDR4 Interface Clock
[Figure 2, callout 12]
The VCU128 evaluaon board has a SiTime 100 MHz xed frequency low-jier 3.3V LVDS
dierenal oscillator (U96) connected to FPGA U1 HP bank 69 QDR4 interface GC pins BJ4 (P)
and BK3 (N) and is series capacitor coupled.
• Fixed frequency oscillator: SiTime SIT9120AI-2D3-33E100.0000 (100 MHz)
• 0.6 ps RMS phase jier (random) over 12 kHz to 20 MHz bandwidth
• 3.3V LVDS dierenal output

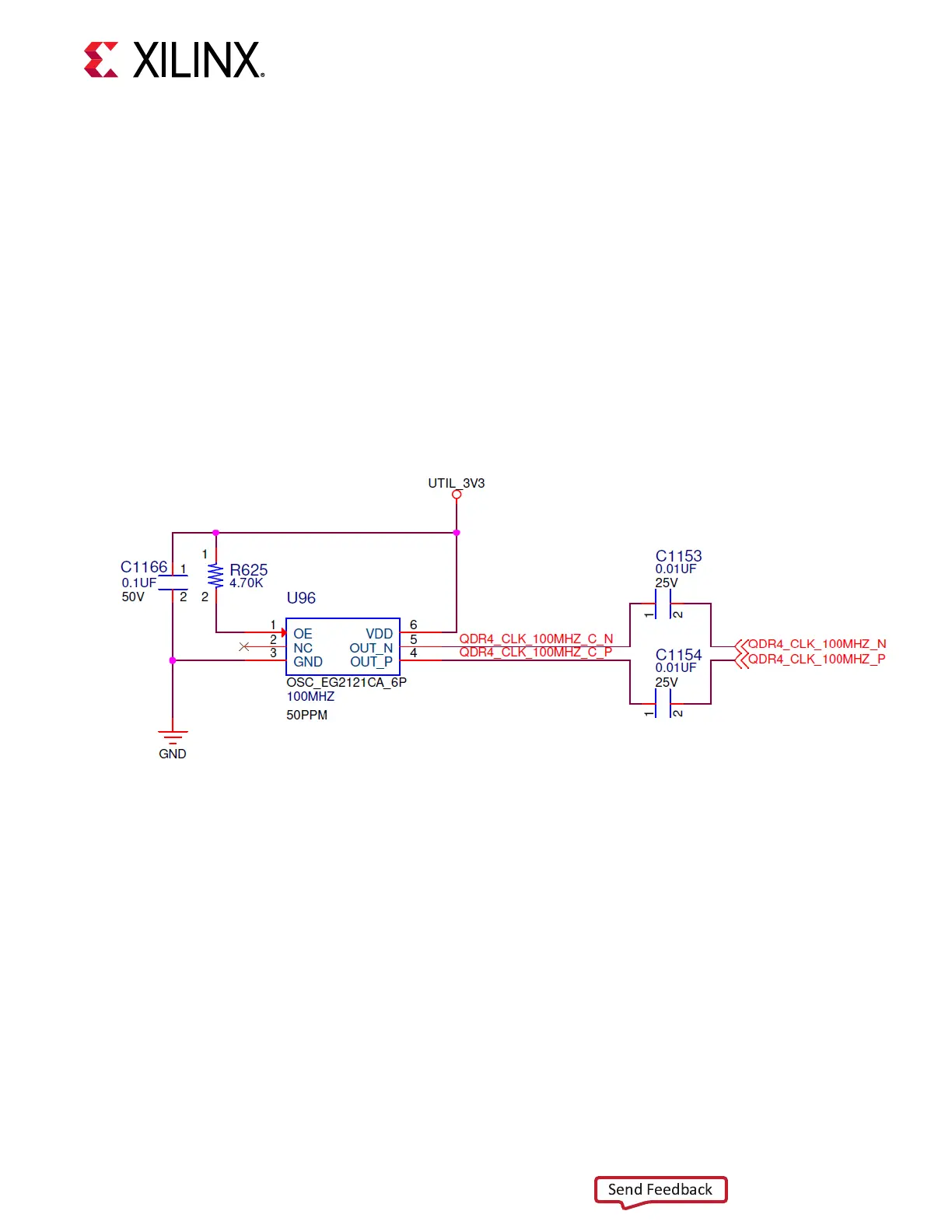

The QDR4 interface xed frequency clock circuit is shown in the following gure.
Figure 11: QDR4 Interface Clock
X21961-111918
