RLD3 Interface Clock
[Figure 2, callout 11]
The VCU128 evaluaon board has a SiTime 100 MHz xed frequency low-jier 3.3V LVDS
dierenal oscillator (U45) connected to FPGA U1 HP bank 74 RLD3 interface GC pins F35 (P)
and F36 (N) and is series capacitor coupled.
• Fixed frequency oscillator: SiTime SIT9120AI-2D3-33E100.0000 (100 MHz)
• 0.6 ps RMS phase jier (random) over 12 kHz to 20 MHz bandwidth
• 3.3V LVDS dierenal output
The RLD3 interface xed frequency clock circuit is shown in the following gure.
The SiTime SiT9120AI data sheet is available on the SiTime Corp. website.

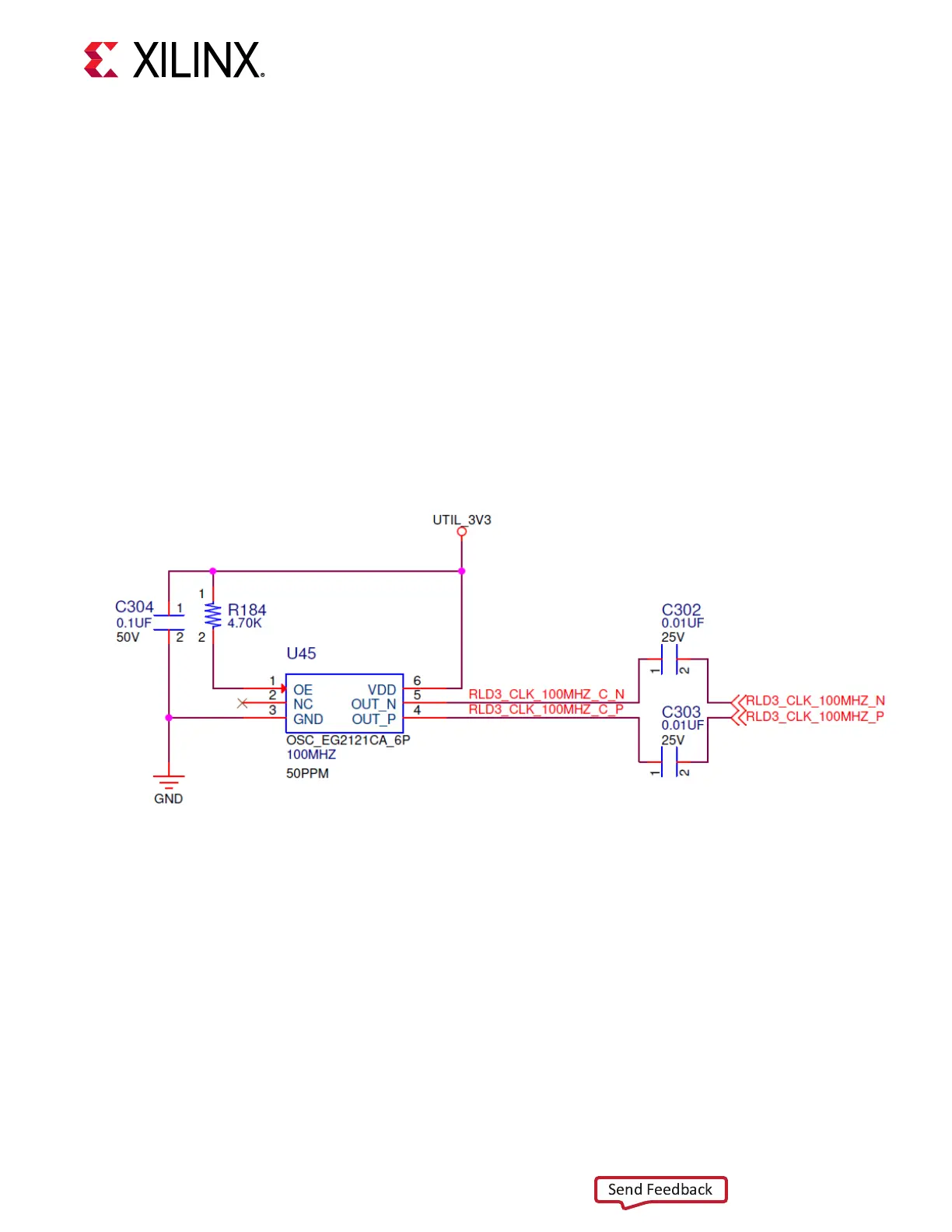

Figure 12: RLD3 Interface Clock
X21962-111918
Chapter 3: Board Component Descriptions
UG1302 (v1.0) December 21, 2018 www.xilinx.com
VCU128 Board User Guide 42
