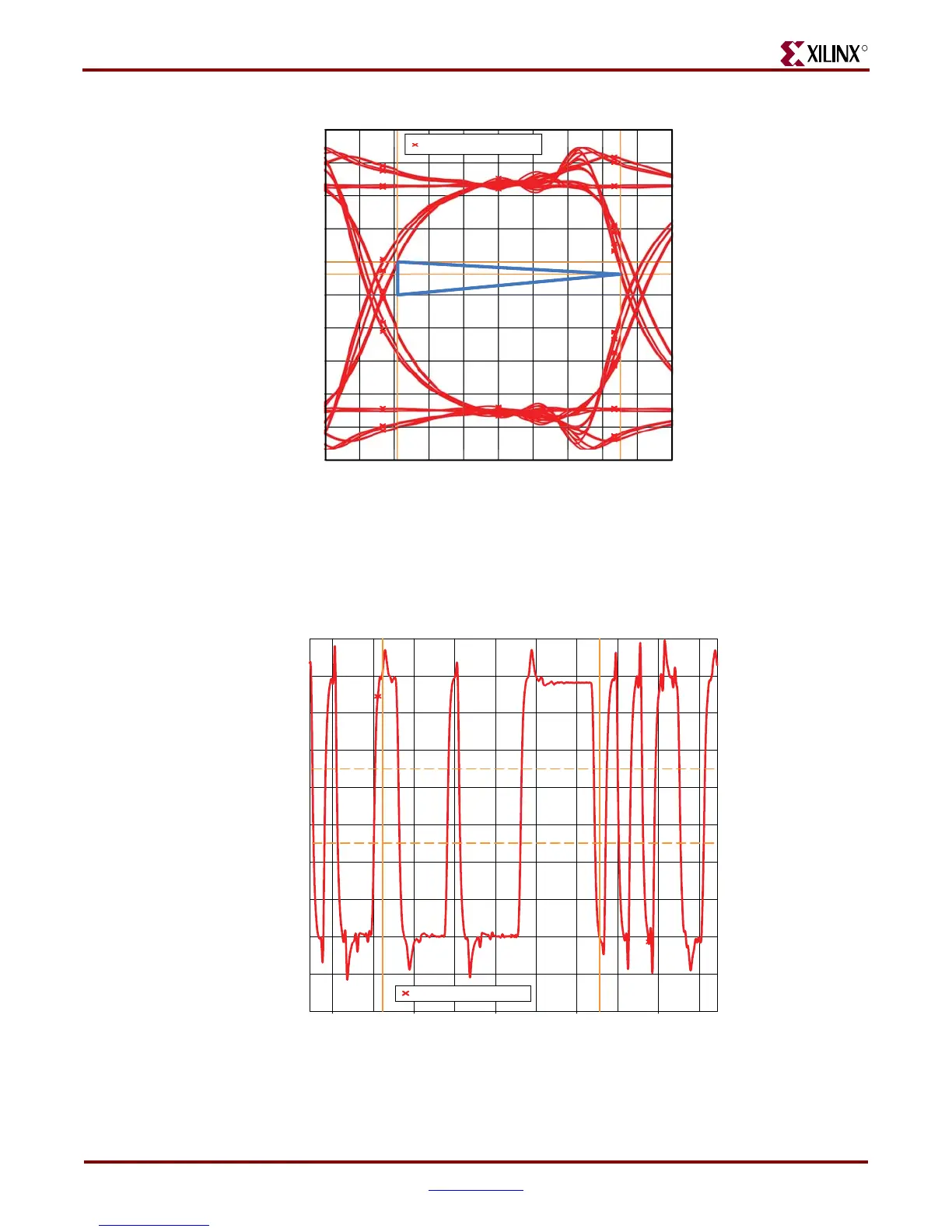

Figure 7-17: DDR2 Component Read Extrapolation - Eye Scope Shot at Receiver IOB (Slow Corner)
800.0 1200.0 1600.0 2000.0 2400.0 2800.0
-100.0
100.0
300.0
500.0
700.0
900.0
1100.0
1300.0
1500.0
1700.0
1900.0
UG199_c7_17_071007
Time (ps)
Voltage (mV)
Probe 1:U7.P25 (at die)
♦ 333 MHz, Slow, PRBS6, 85.5% UI
♦ Cursor 1: 1.0988V, 1.2170 ns
♦ Cursor 2: 1.0254V, 2.5029 ns
♦ Delta Voltage = 73.4 mV, Delta Time = 1.2859 ns (85.5% UI)
Figure 7-18: DDR2 Component Read Extrapolation - Waveform Scope Shot at Receiver IOB (Slow Corner)
-200.0
0.000
200.0
400.0
600.0
800.0
1000.0
1200.0
1400.0
1600.0
1800.0
65.000 75.000 85.000 95.000 105.000
Probe 1:U7.P25 (at die)
Voltage (mV)
Time (ns)
UG199_c7_18_071007
