Chapter 2: Creating the GTH IBERT Core
6. In the IP Catalog window, open the Debug & Verification folder, then open the
Debug folder, and double-click IBERT 7 Series GTH (Figure 2-4).
X-Ref Target - Figure 2-4

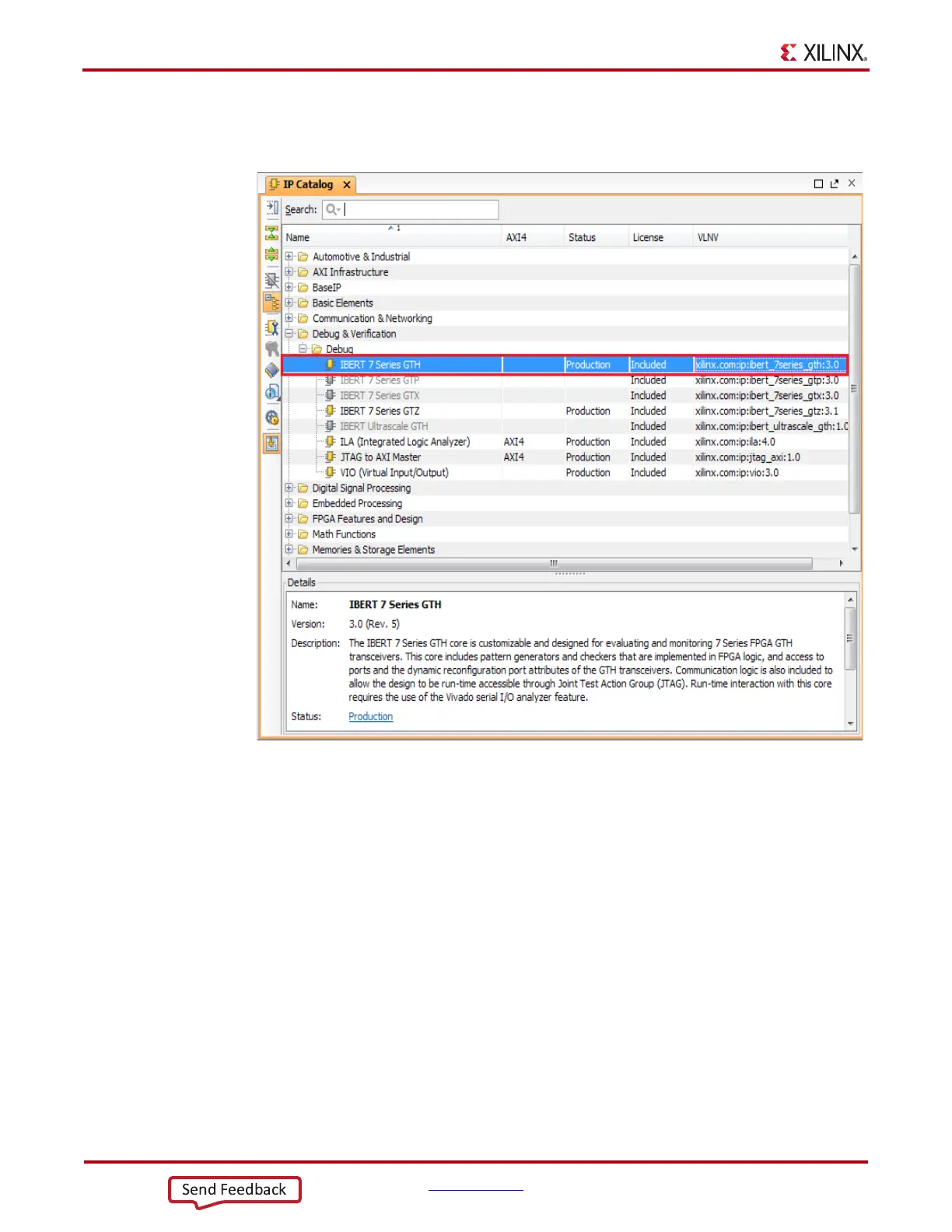

Figure 2-4: IP Catalog
