7. A Customize IP window opens. In the Protocol Definition tab, change
LineRate(Gbps) to 13.0. Use the drop-down menu to change the Refclk(MHz)
to 325.00. Do not change other defaults (Figure 2-5).
X-Ref Target - Figure 2-5

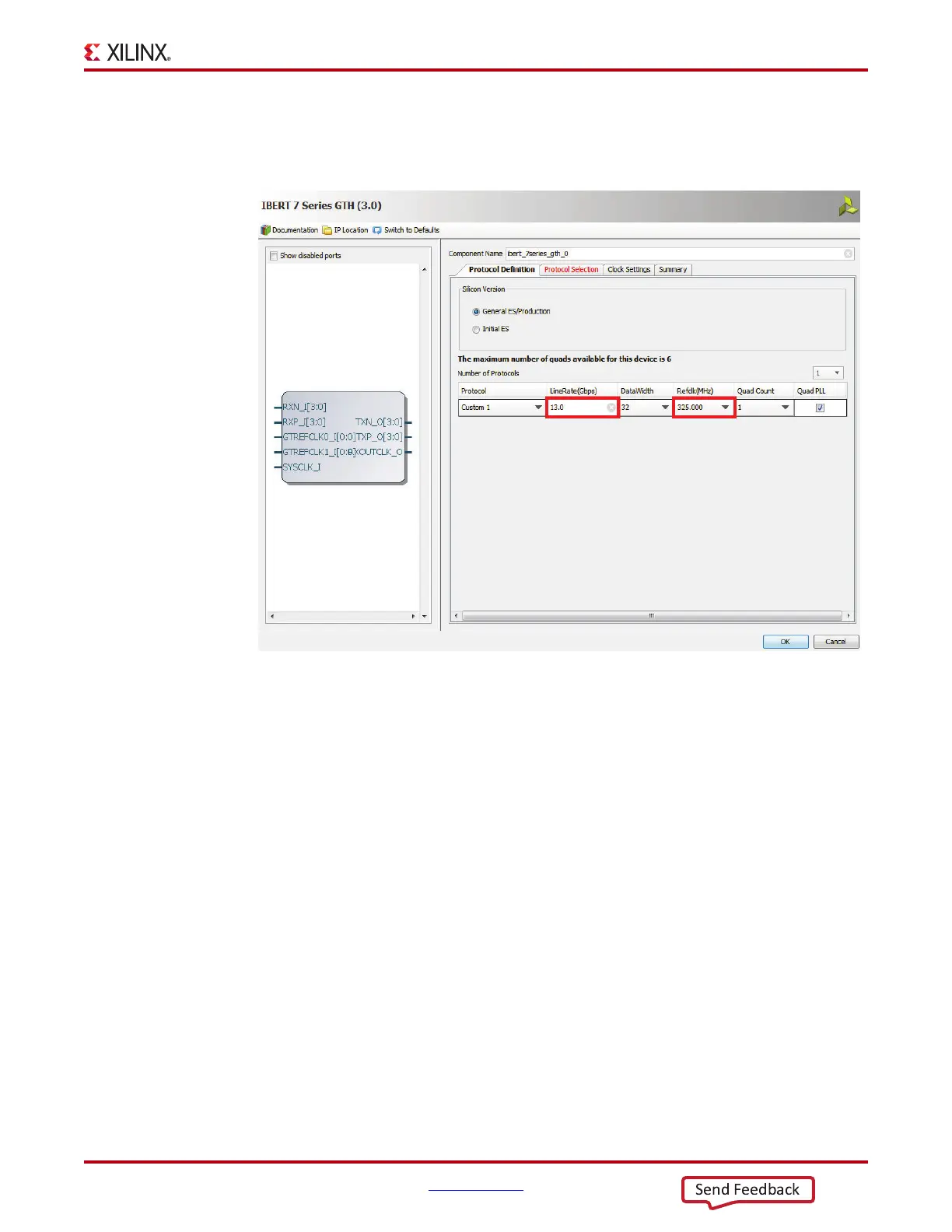

Figure 2-5: Customize IP - Protocol Definition
