Chapter 2: Creating the GTH IBERT Core
8. In the Protocol Selection tab, use the Protocol Selected drop-down menu next to
QUAD_115 to select Custom 1/13.0 Gbps (Figure 2-6).
X-Ref Target - Figure 2-6

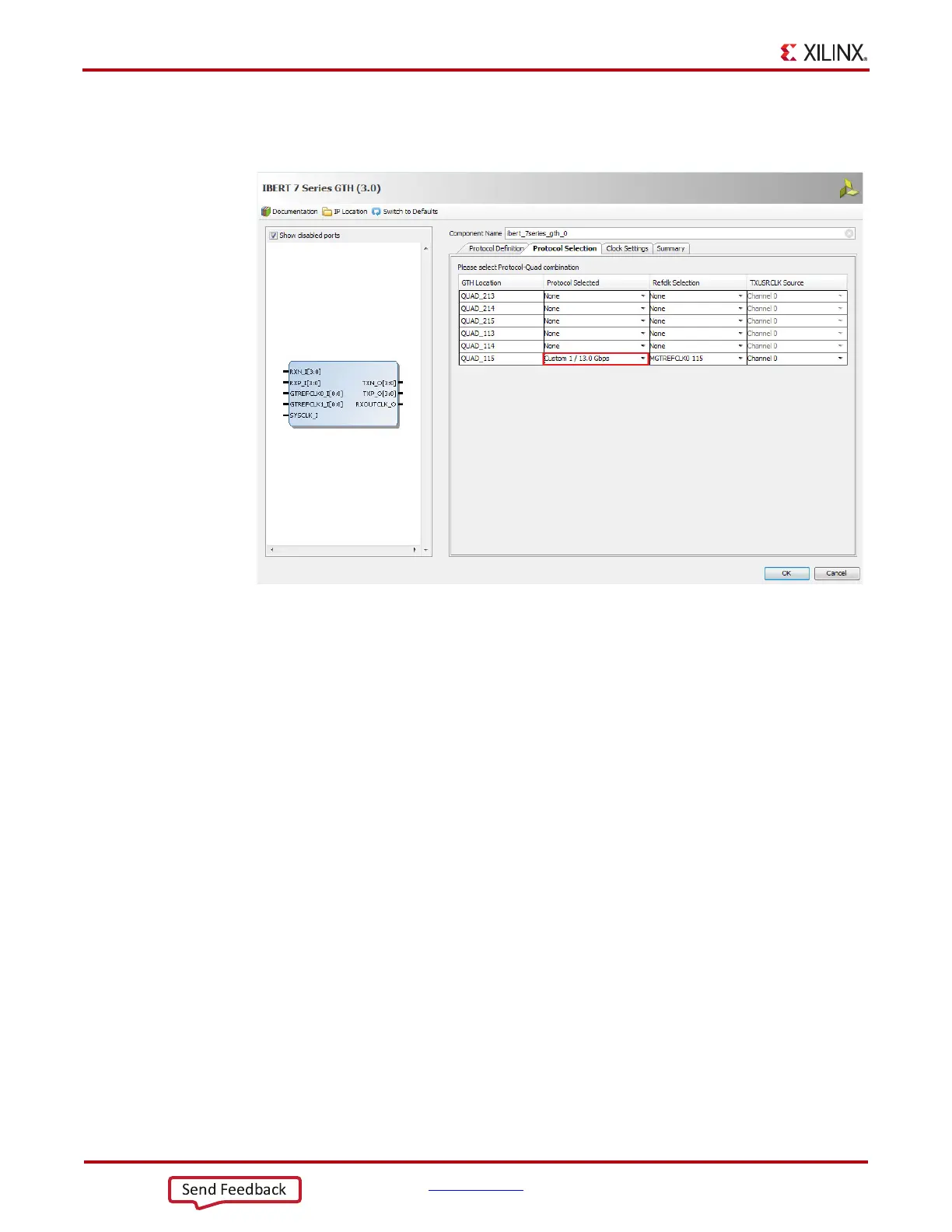

Figure 2-6: Customize IP - Protocol Selection
