Chapter 2: Creating the GTH IBERT Core
14. Click Run Synthesis in the Flow Navigator to synthesize the design
(Figure 2-12.
15. When synthesis is done, a Synthesis Complete window pops up. Select Open
Synthesized Design and click OK (Figure 2-13).
X-Ref Target - Figure 2-12

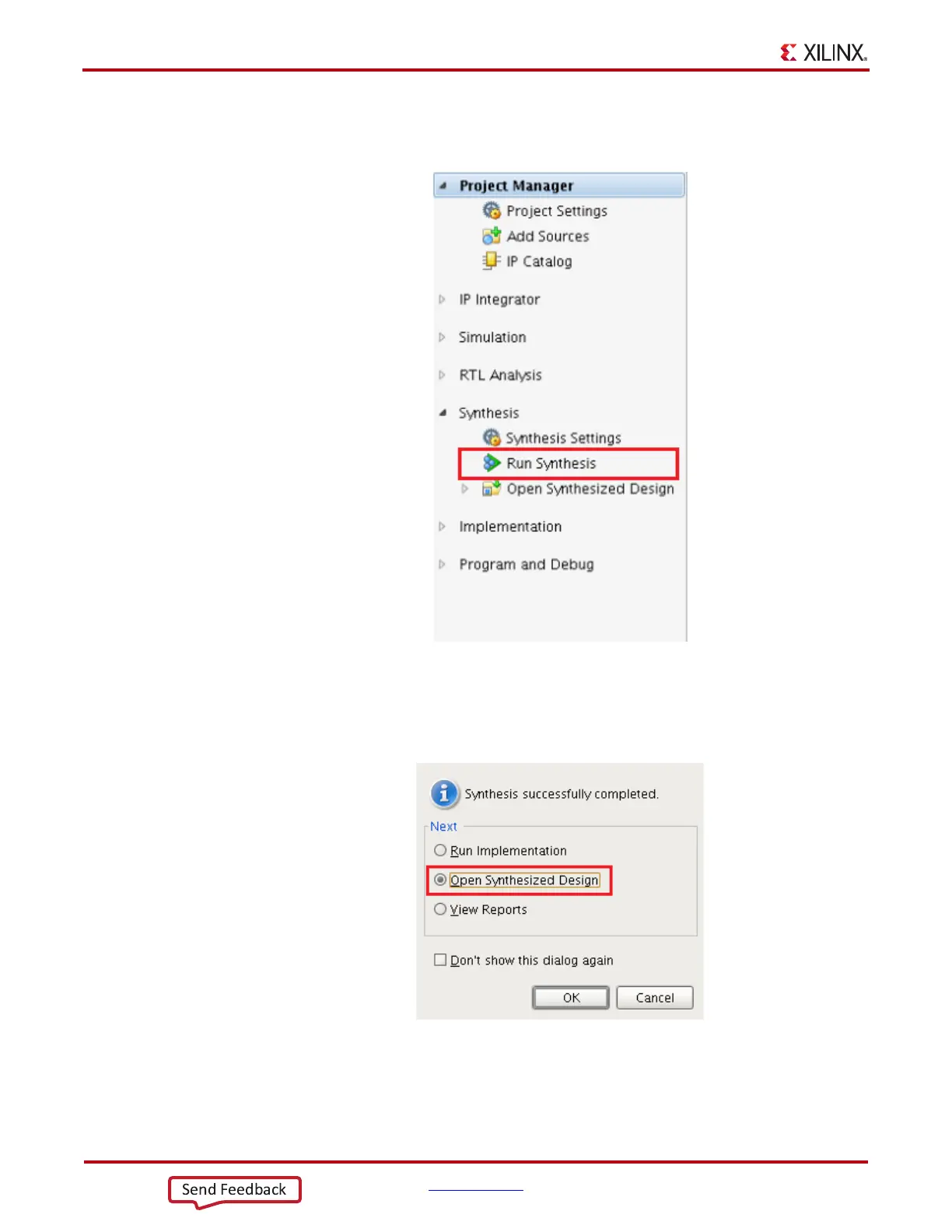

Figure 2-12: Run Synthesis
X-Ref Target - Figure 2-13
Figure 2-13: Synthesis Completed
