5. In the new window select Tools > Run Tcl Script. In the Run Script window,
navigate to add_scm2.tcl in the extracted files and press OK. The SuperClock-2
Module Design Sources and Constraints are added to the example design (Figure 3-6).
X-Ref Target - Figure 3-6

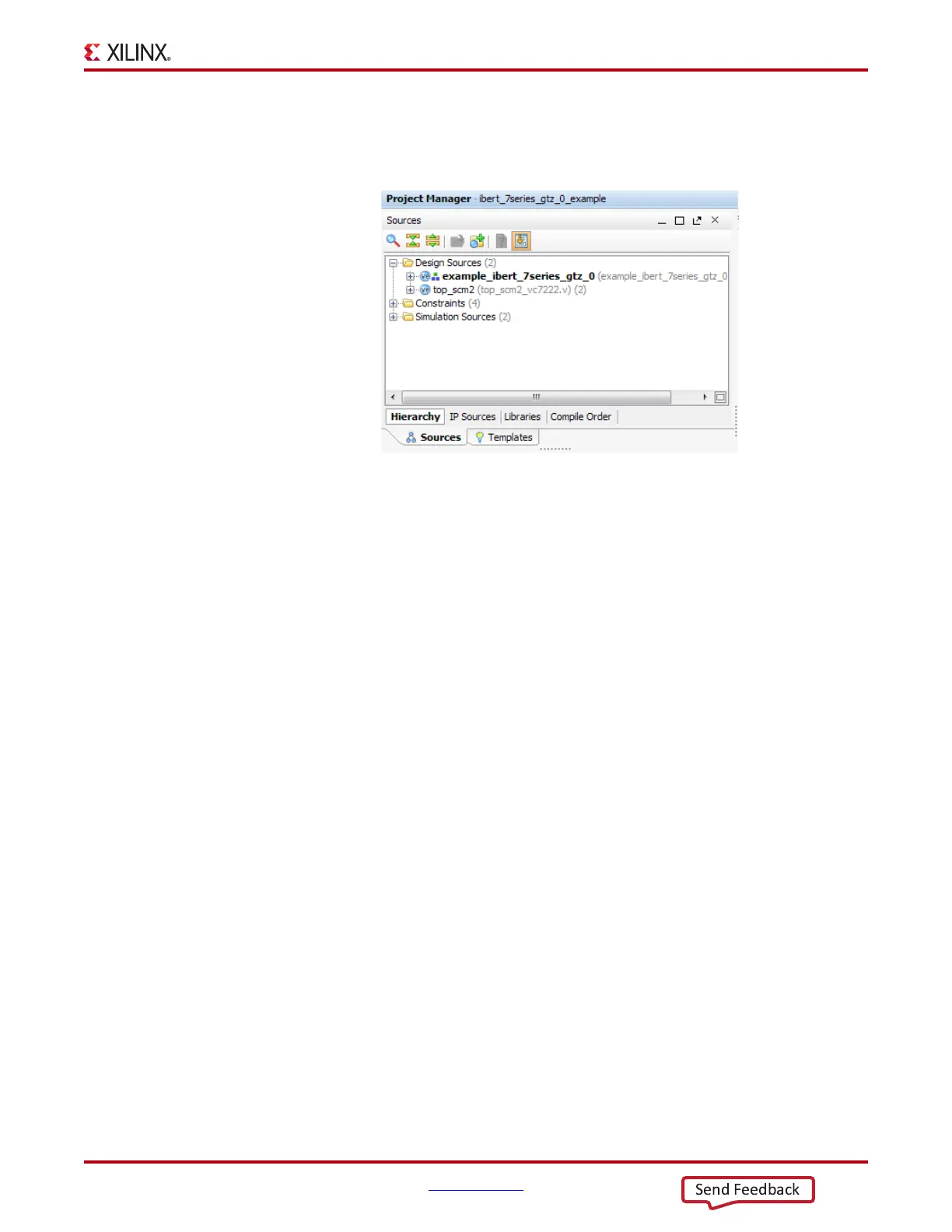

Figure 3-6: Sources after Running add_scm2.tcl
