ZCU102 Evaluation Board User Guide www.xilinx.com 106
UG1182 (v1.2) March 20, 2017
Chapter 3: Board Component Descriptions
On first use of the SCUI, go to the FMC > Set VADJ > Boot-up tab and click USE FMC
EEPROM Voltage. The SCUI buttons grey-out during command execution and return to
their original appearance when ready to accept a new command.
See the System Controller Tutorial (XTP433) and the ZCU102 Software Install and Board
Setup Tutorial (XTP435) for more information on installing and using the System Controller
utility.
The MSP430 uses ID resistor encoding to allow the System Controller utility awareness of
which board type is active. See Table 3-54 for the configuration of the ID encoding resistors
R516 and R517.
Note:
The MSP430 firmware might be updated in the event new capability is added in the future.
The MSP430 upgrade header, J164, is reserved for this purpose. Xilinx will provide information on the
update procedure via future updates to XTP433 [Ref 11].
X-Ref Target - Figure 3-40

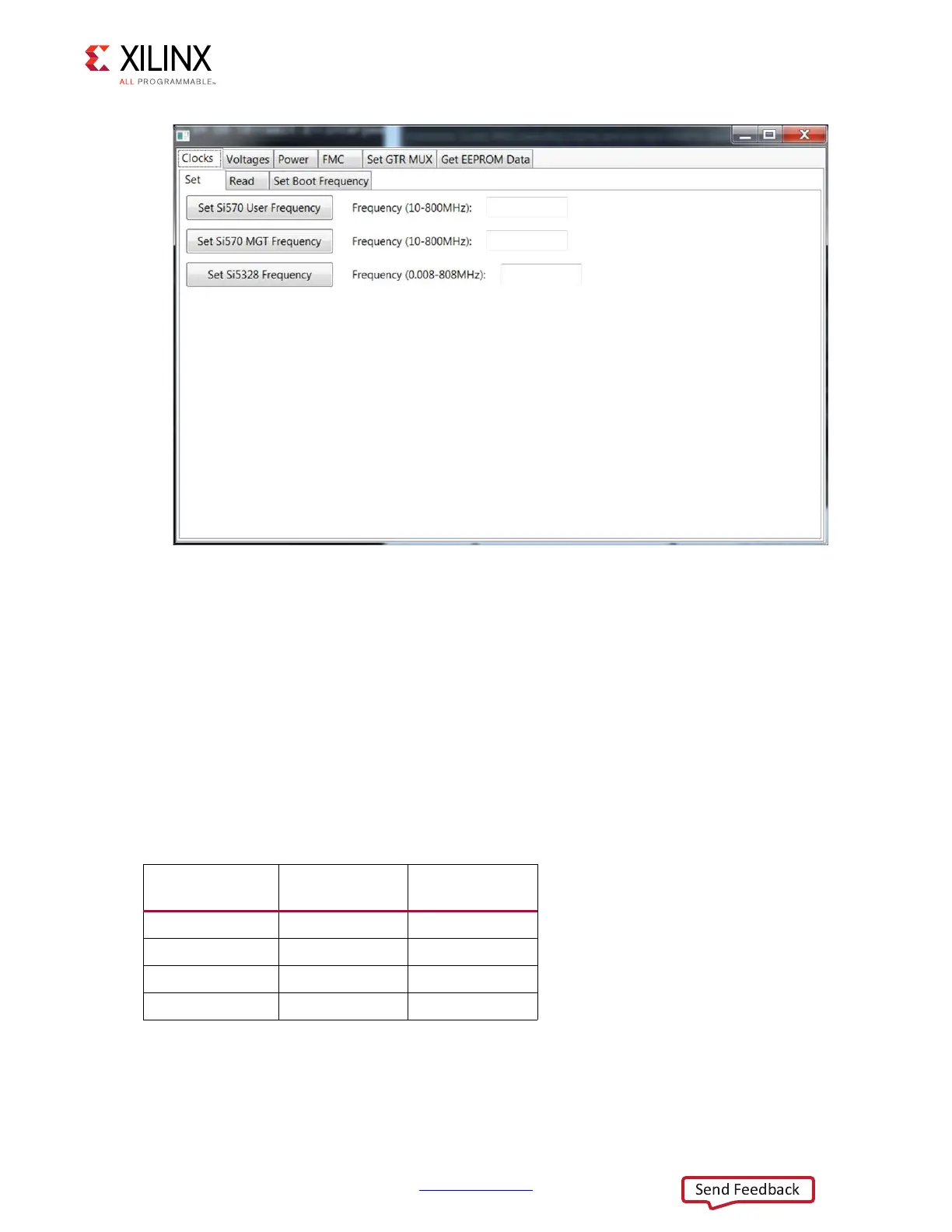

Figure 3-40: SCUI Graphical User Interface
Table 3-54: MSP430 Board ID Encoding
Zynq UltraScale+
Board
R516 R517
ZCU102
DNP DNP
ZCU106
DNP 10K
Reserved
10K DNP
Reserved
10K 10K
