Table 20: Power and Status LEDs (cont'd)
Ref. Des.
Schematic Net
Name
LED
Color
Description
DS47 LED_1 Green USER GPIO LED_1
DS48 LED_2 Green USER GPIO LED_2
DS49 LED_3 Green USER GPIO LED_3
DS50 LED_4 Green USER GPIO LED_4
DS51 LED_5 Green USER GPIO LED_5
DS52 LED_6 Green USER GPIO LED_6
DS53 LED_7 Green USER GPIO LED_7

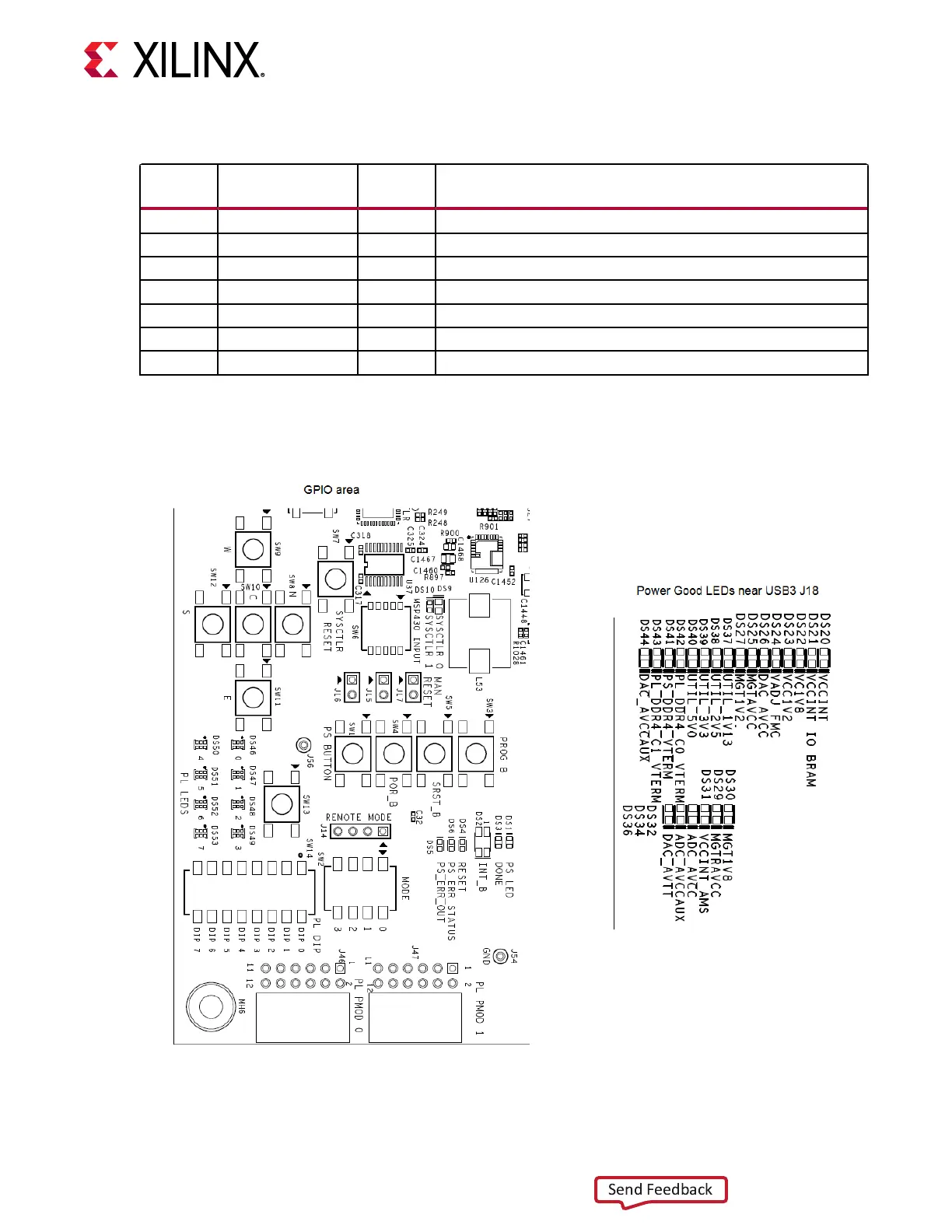

The following gure shows the GPIO and power status LED areas of the board.
Figure 17: GPIO and Power Status LED areas
Chapter 3: Board Component Descriptions
UG1410 (v1.0) July 8, 2020 www.xilinx.com
ZCU208 Board User Guide 51
