Table 29: Mounting Screws and Standoff Details
Parameters Screw Standoff
Part number JSO-0415-01 Keystone 1894
Length 4 mm board stack height 0.625" + rubber bumper
Ordering part number JSO-0415-01 1894
Description Jack screw press-in standoff #4-40 0.625" aluminum standoff
Data sheet See the Samtec website –
Functional Description
Cables/SMAs
XM655
Cables: Carlisle Core HC2 8 Channel – Male, 3.5 mm TM40-0157-00

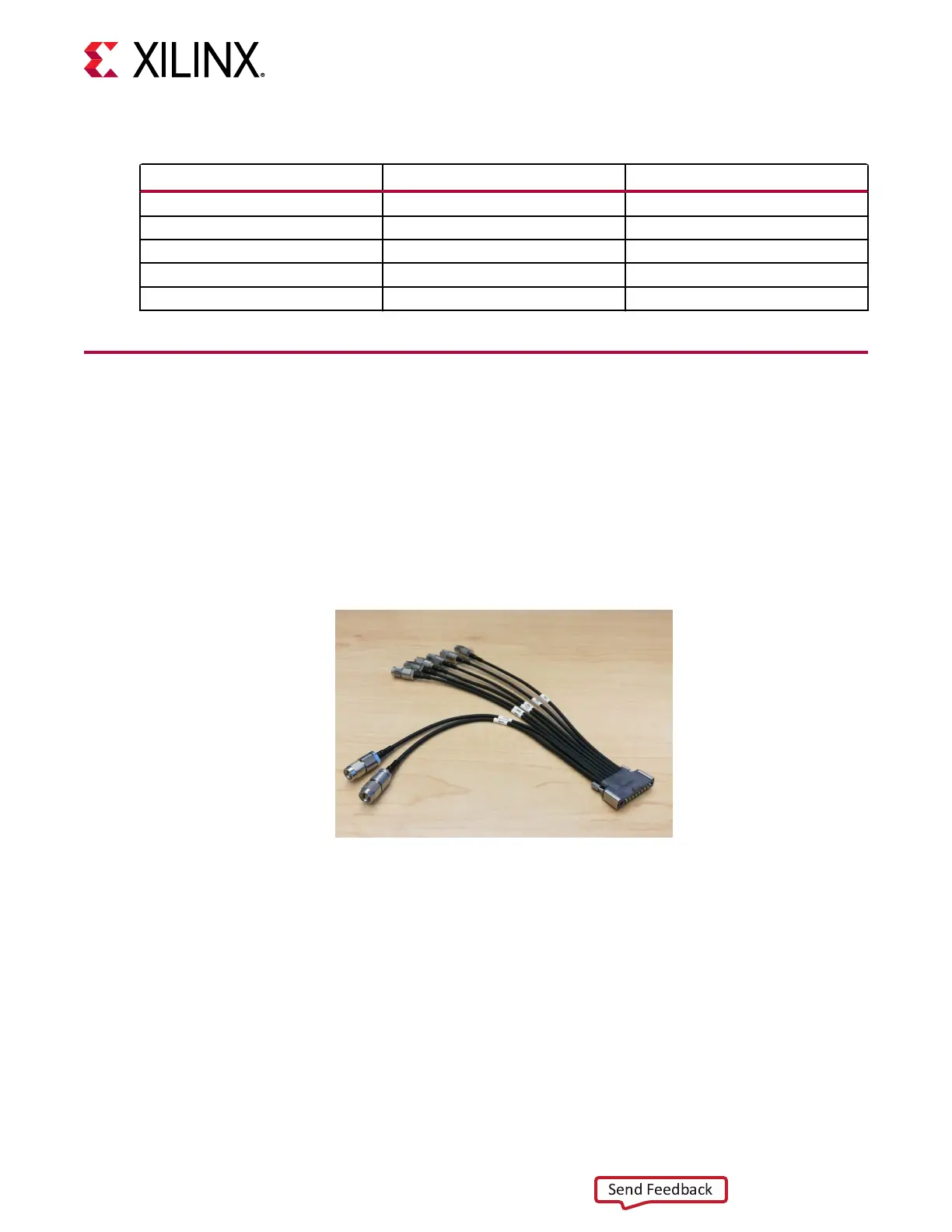

Figure 31: Carlisle Core HC2 8 Channel–Male Cable
Appendix C: HW-XM650/655 Balun Daughter Cards for Gen 3 RFSoC EVM
UG1410 (v1.0) July 8, 2020 www.xilinx.com
ZCU208 Board User Guide 80
