Xilinx Zynq UltraScale+ ZCU208 User Manual

Connector
Table 28: RFMC 2.0 Connector Parameters
Parameter Value
Part number LPAM-50-01.0-L-08-2-K-TR
Data rate 18 Gb/s
Connector type LP array (.050"/1.27 mm pitch)
I/O pins 8x50
Stack height .157"/4.00 mm (Mated with LPAF-50-03.0-L-08-2-K-TR)
Make SAMTEC
Description Low profile open pin field array, male connector
Data sheet See the Samtec website

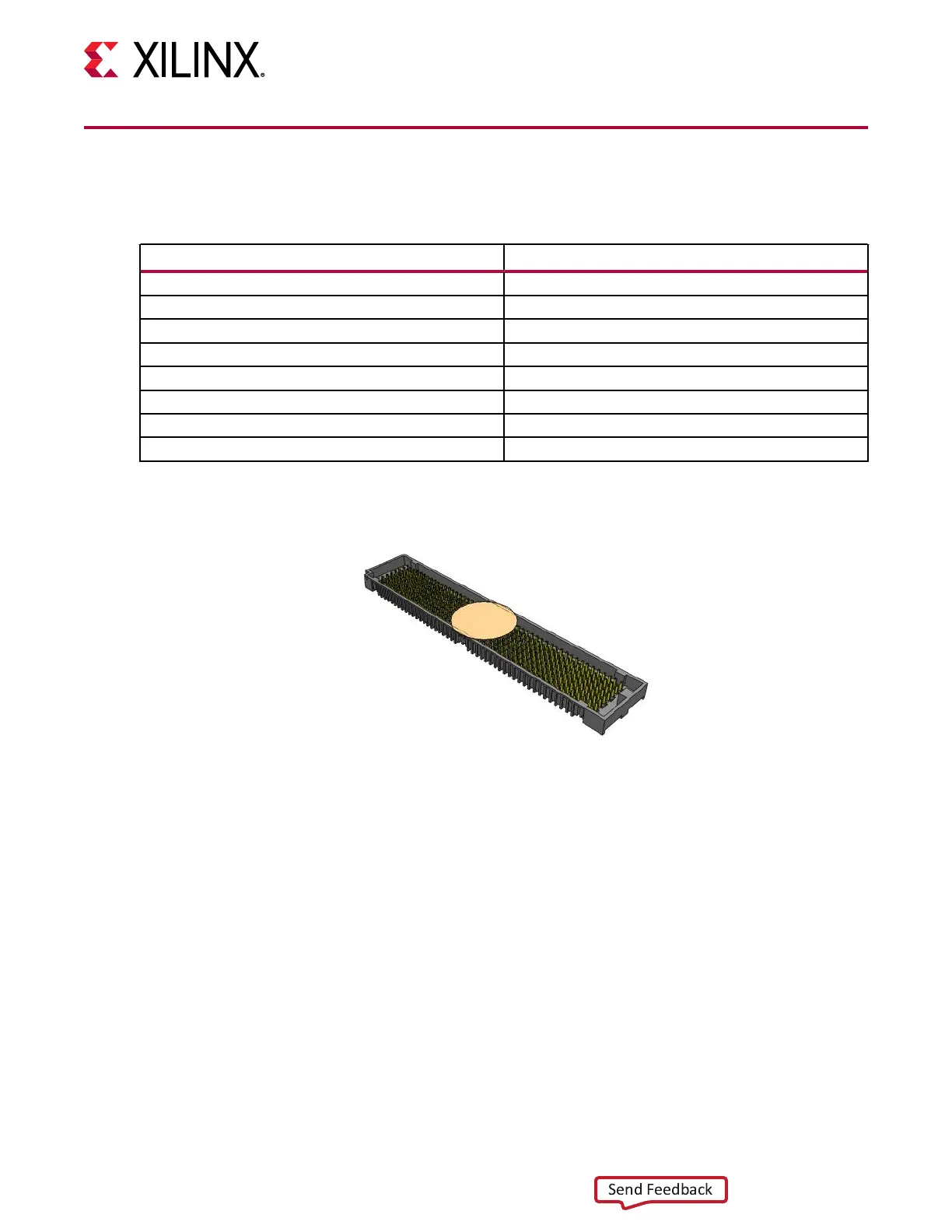

Figure 25: LPAM-50-01.0-L-08-2-K-TR 3D View
