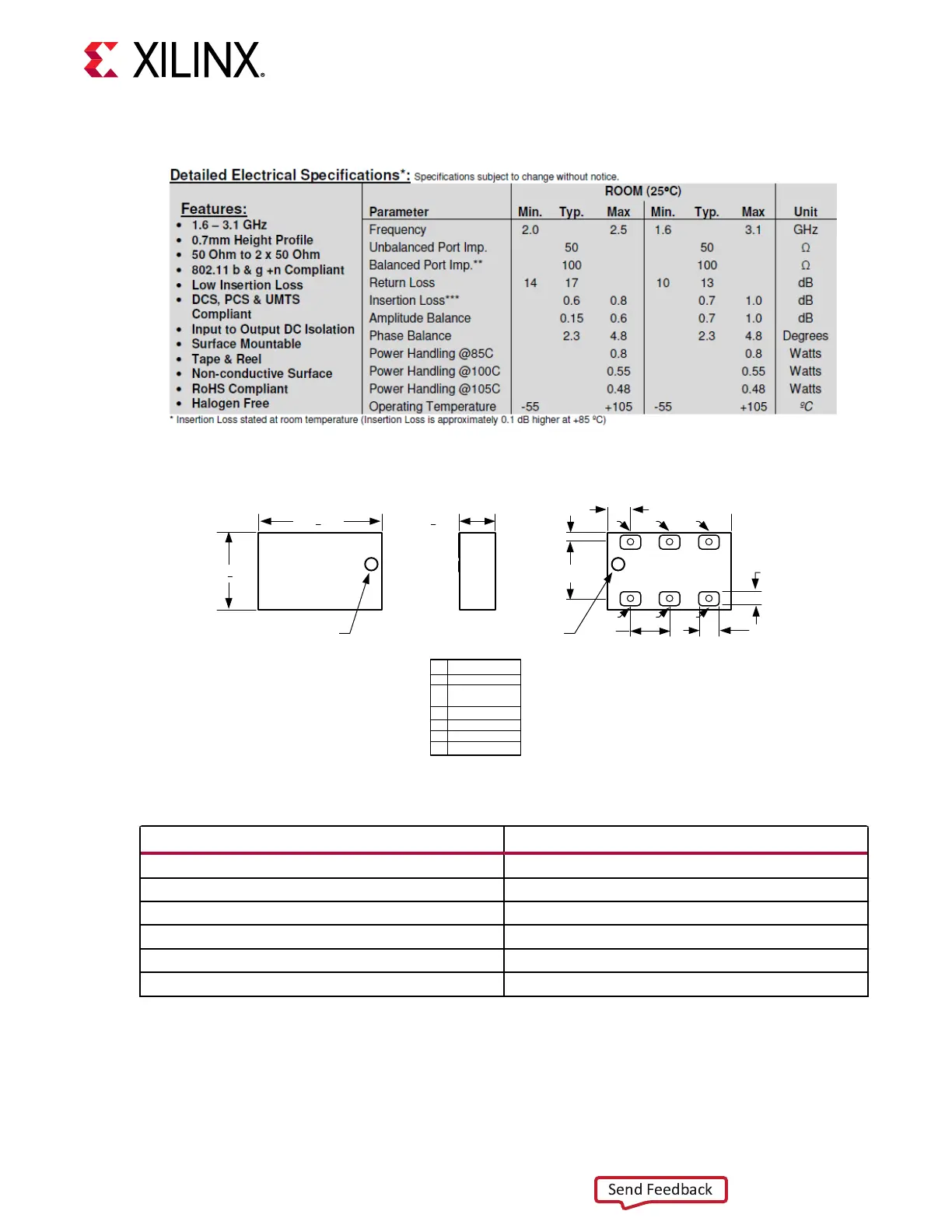

Figure 36: Medium Frequency Balun Specifications
Figure 37: Medium Frequency Balun Drawing
0.68+0.072.04+0.10
1.29+0.10
Orientation Marker
Denotes Pin Location
TOP VIEW (Near Side) SIDE VIEW
6x 0.98
BOTTOM VIEW (Far Side)
2x 0.15
1
4x 0.37
2 3
6 5 4
6x 0.22
6x 0.30
4x 0.65
Pin
1
2
3
4
5
6
Designation
Unbalanced
GND/DC Feed
+RF GND
Balanced Port
Balanced Port
GND
NC
Orientation Marker
Denotes Pin Location
Mechanical Outline
-Dimensions are in Millimeters
X23662-012320
Table 34: High Frequency Balun (4-5 GHz) Part Number
Parameter Value
Part number BD3150N50100AHF
Manufacturer Anaren
Order P/N 1173-1069-2-ND
Vendor Digikey
Description Balun 3.1 GHZ-5 GHZ 50/100 0404
Data sheet See the Anaren website
Appendix C: HW-XM650/655 Balun Daughter Cards for Gen 3 RFSoC EVM
UG1410 (v1.0) July 8, 2020 www.xilinx.com
ZCU208 Board User Guide 85
