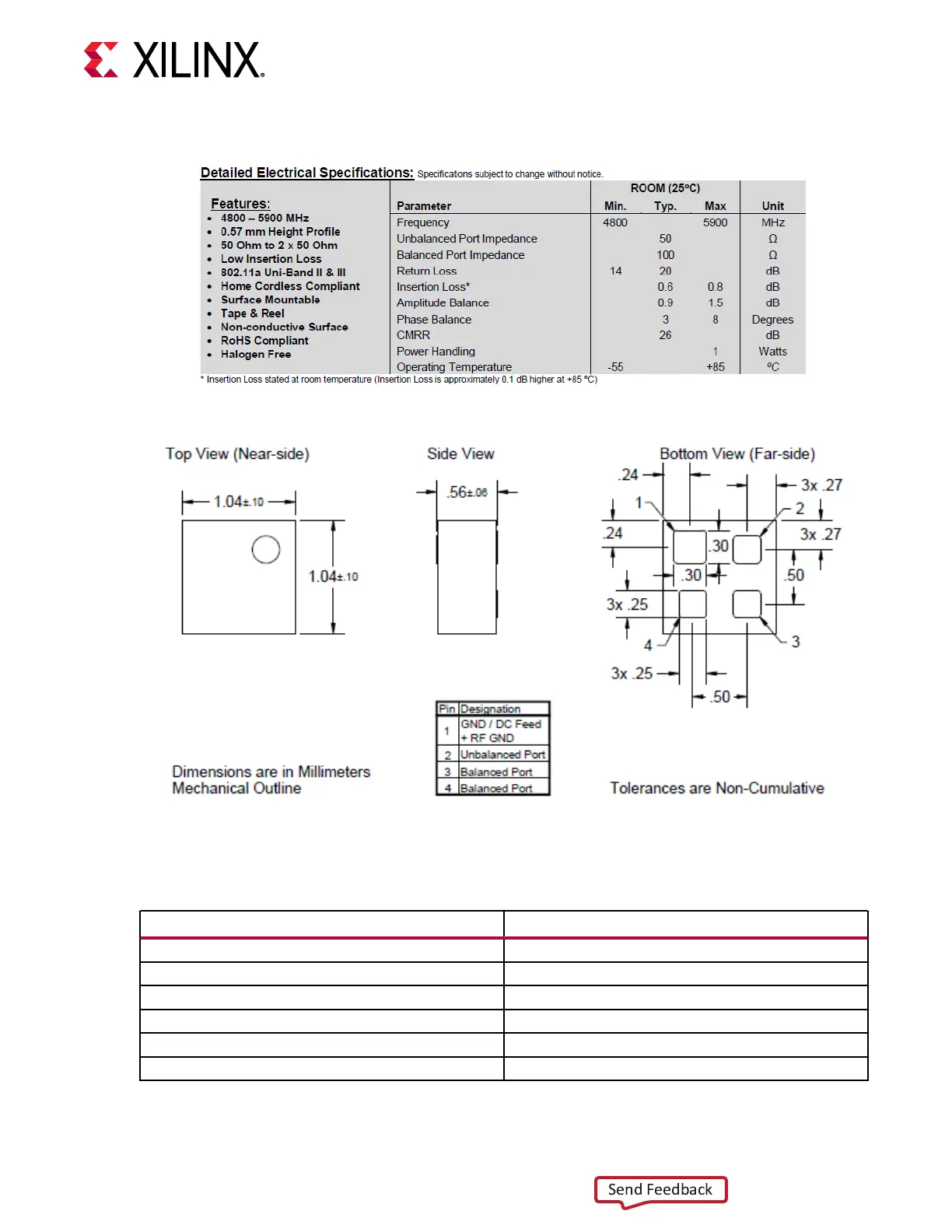

Figure 40: High Frequency Balun Specifications
Figure 41: High Frequency Balun Drawing
RF Cages
Table 36: RF Cages
Parameter Value
Part number LT-7925
Manufacturer Leader Tech
Order P/N LT-7925
Vendor Leader Tech
Description EMI cage
Data sheet See the Leader Tech website
Appendix C: HW-XM650/655 Balun Daughter Cards for Gen 3 RFSoC EVM
UG1410 (v1.0) July 8, 2020 www.xilinx.com
ZCU208 Board User Guide 87
