Xinje DS5B Series User Manual

R
S
T
.
U
V
W
P+
D
C
P-
.

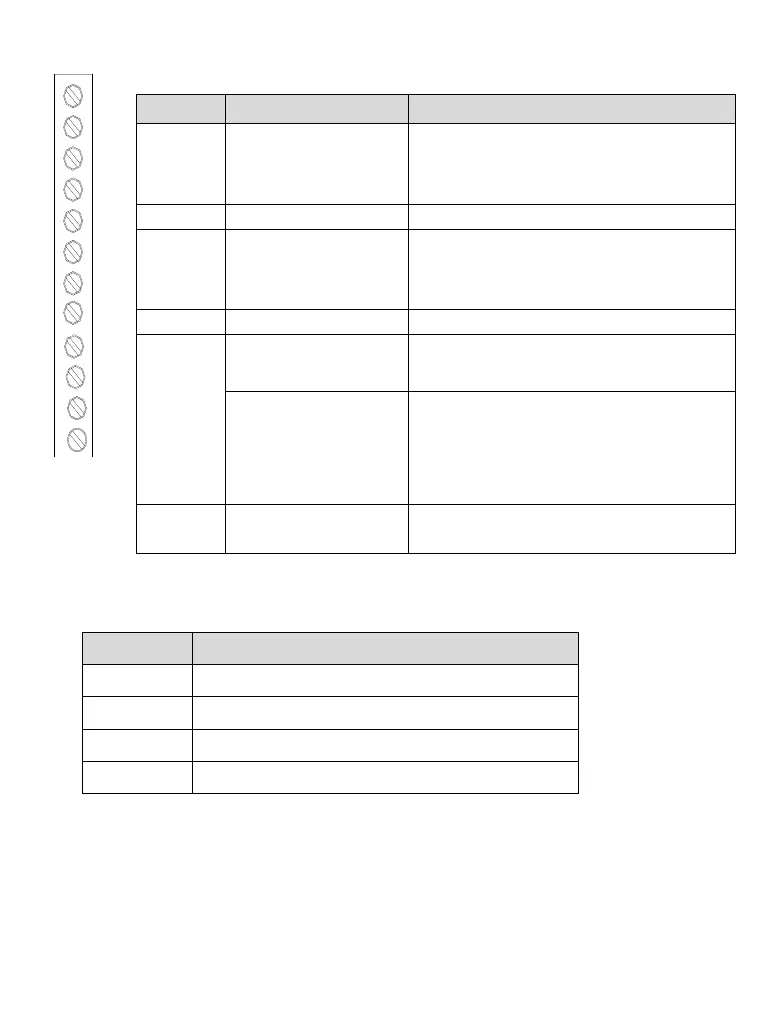

 DS5B-43P0/45P5/47P5-PTA
Terminal
Function
Explanation
R/S/T
Power supply input of
main circuit
3-phase AC360~400V, 50/60Hz
●
Vacant
-
U、V、
W
Motor terminals
Connect the motor
(Note: the ground line is on the cooling
fin, please check it before power on!)
●
Vacant
-
P+、D、
C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C, set
P0-24=0
External regenerative
resistor
Connect regenerative resistor between P+
and C, disconnect P+ and D, set P0-24=1,
P0-25= power value, P0-26= resistor
value
P+/P-
Bus terminal
Real-time check the bus voltage, please
take attention of this terminal
 Wiring terminals of servo motor
Signal
40, 60, 80, 90, 110, 130, 180 series motor
PE
4-yellow green
U
1-brown
V
3-black
W
2-blue
