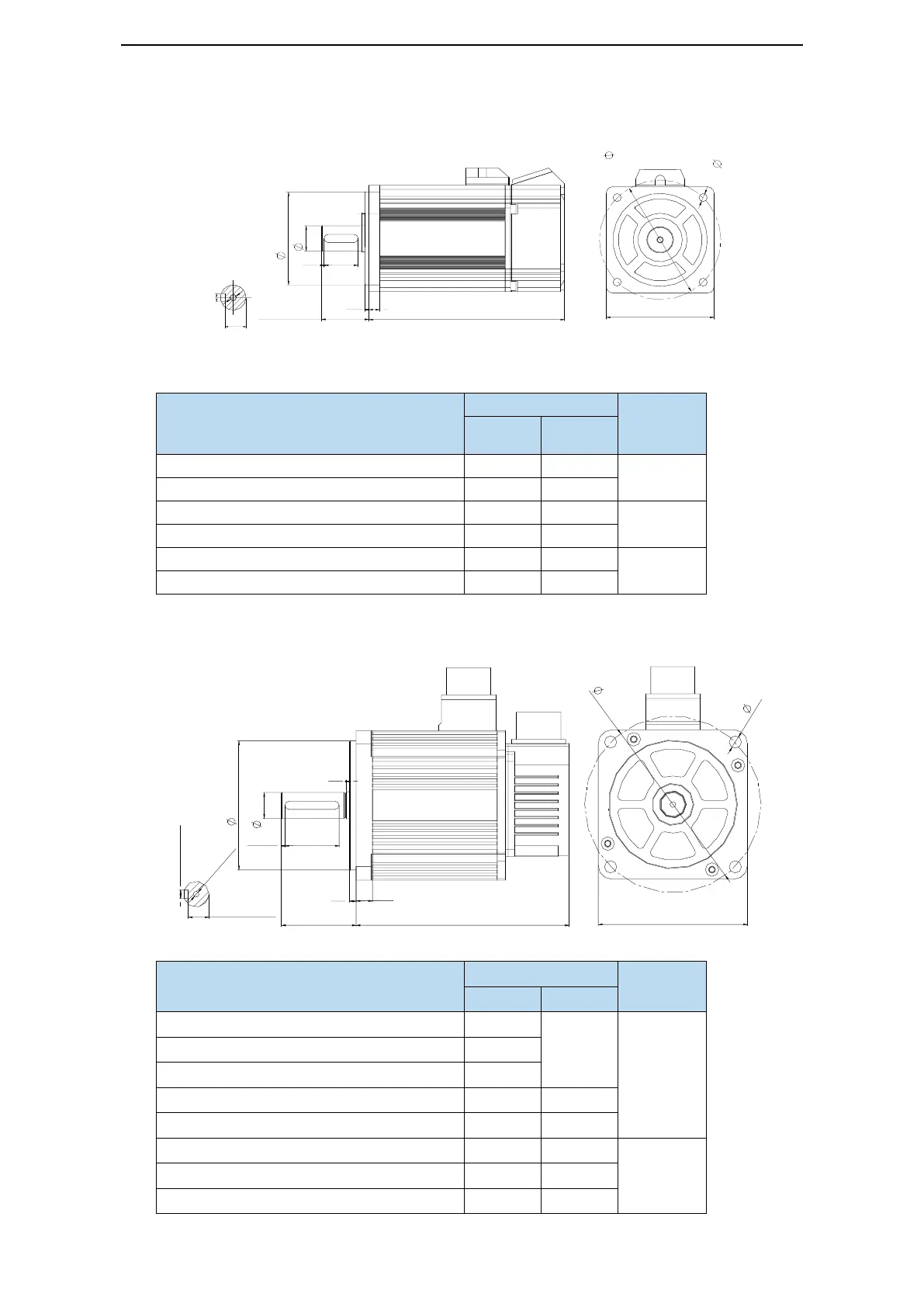

 80 series motor installation dimensions Unit: mm
90
a80
4-
6
70h7
6
0
-0.02
M5深8
15,5
0
-0,1
3 8
35±0.5
25
19h6
2
2
LA
Motor model
LA±1
Inertia
level
Normal
With
brake
MS5S-80ST-CS02430□□-20P7-S01/S02
107
144
Low
inertia
MS5S-80ST-CS03230□□-21P0-S01/S02
128
165
MS5H-80ST-CS02430□□-20P7-S01/S02
119
156
High
inertia
MS5H-80ST-CS03230□□-21P0-S01/S02
140
177
MS-80ST-T02430□□-20P7
150
199
-
MS-80ST-T03520□□-20P7
179
219
 110 series motor installation dimensions Unit: mm
LA
125
2
402.5
55±0.5
19h6
95h7
a110
130
4-
9
15.5
0
-0.1
6
0
-0.018
M5深25
Motor model
LA±1
Inertia level
Normal
With brake
MS5S-110ST-CS03230□□-21P0-S01
157
-
Low inertia
MS5S-110ST-CS04830□□-21P5-S01
166
MS5S-110ST-CS06430□□-22P0-S01
181
MS5S-110ST-TL03230□□-21P0-S01
157
205
MS5S-110ST-TL04830□□-21P5-S01
166
214
MS-110ST-TL06430□□-22P0-S01
181
229
-
MS-110ST-T04030B-21P2
189
263
MS-110ST-T05030B-21P5
181
229
