Xinje DS5E Series User Manual

21

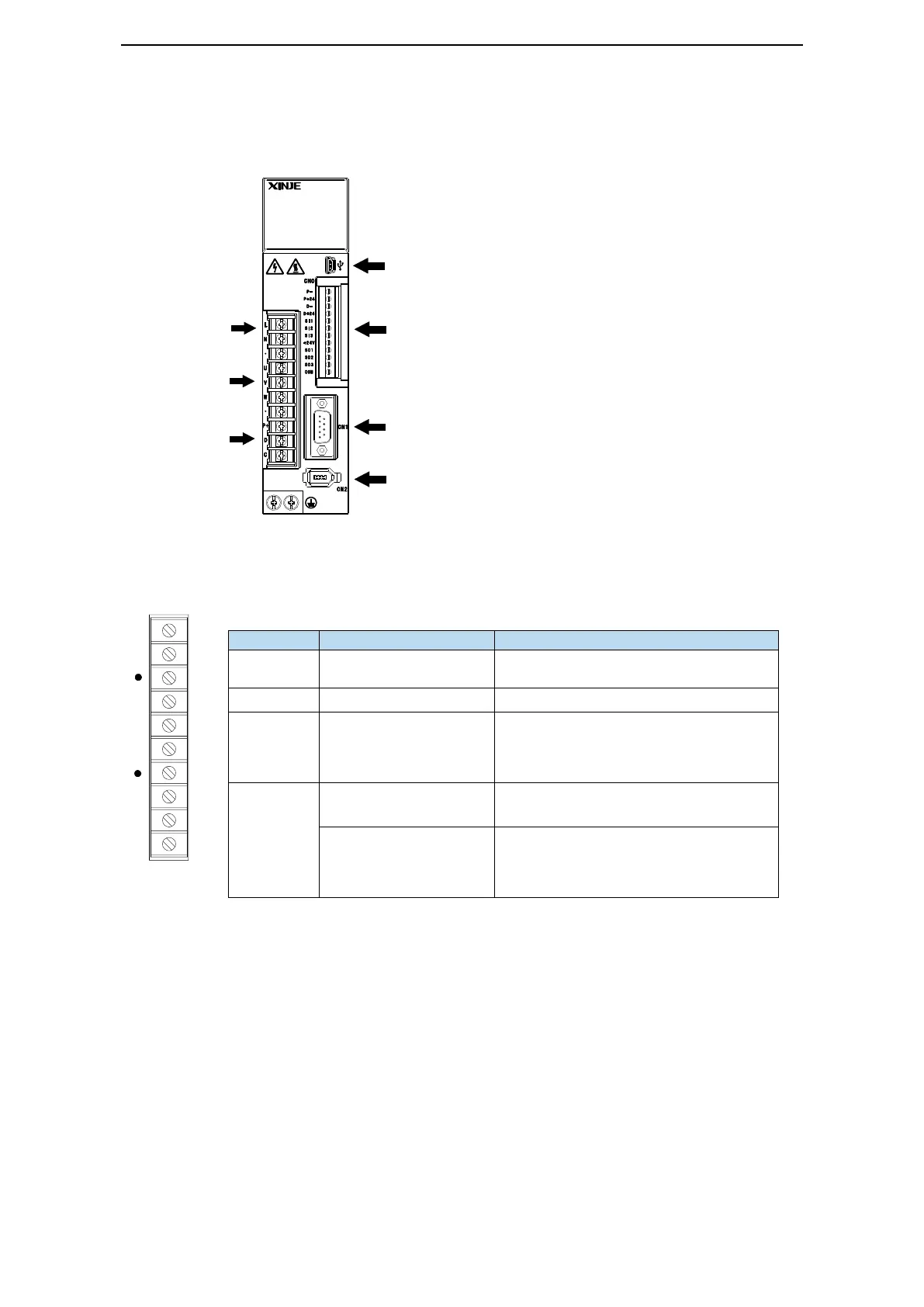

3.1 Main circuit wiring
3.1.1 Servo driver terminal arrangement
3.1.2 Main circuit terminals and explanations
W
U
V
N
L
D
P+
C
 DS5E/L-20P1-PTA, DS5E/L-20P2-PTA, DS5E/L-20P4-PTA, DS5E/L-20P7-PTA
Terminal
Function
Explanation
L/N
Power supply input of
main circuit
Single phase AC 200~240V, 50/60Hz
●
Vacant terminal
-
U, V, W
Motor terminals
Connect the motor
Note: the ground wire is on the cooling
fin, please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between
P+ and C, disconnect P+ and D, P0-25=
power value, P0-26= resistor value
RS232 port
CN0: pulse, direction
I/O signal
CN1:insert module for filedbus function
CN2: encoder cable of driver
Power supply
Motor wiring
Regenerative
resistor
