Xinje DS5E Series User Manual

32
 U0-22 input signal 2 distribution
Segment
code
Description
Segment
code
Description
11
/C-SEL control mode selection
12
/ZCLAMP zero clamp
13
/INHIBIT instruction pulse
prohibition
14
/G-SEL gain switch
15
/CLR pulse clear
16
/CHGSTP change step
17
Reserved
18
Reserved
19
Reserved
20
Reserved
Note: When reading through communication, the binary numbers read from right to left correspond to
the position of / C-SEL, / ZCLAMP, 0 means that the position signal is not input, 1 means that the
position signal has input. Example: 0x0001 means / C-SEL has input, 0x0041 means / C-SEL and /
G-SEL have input.

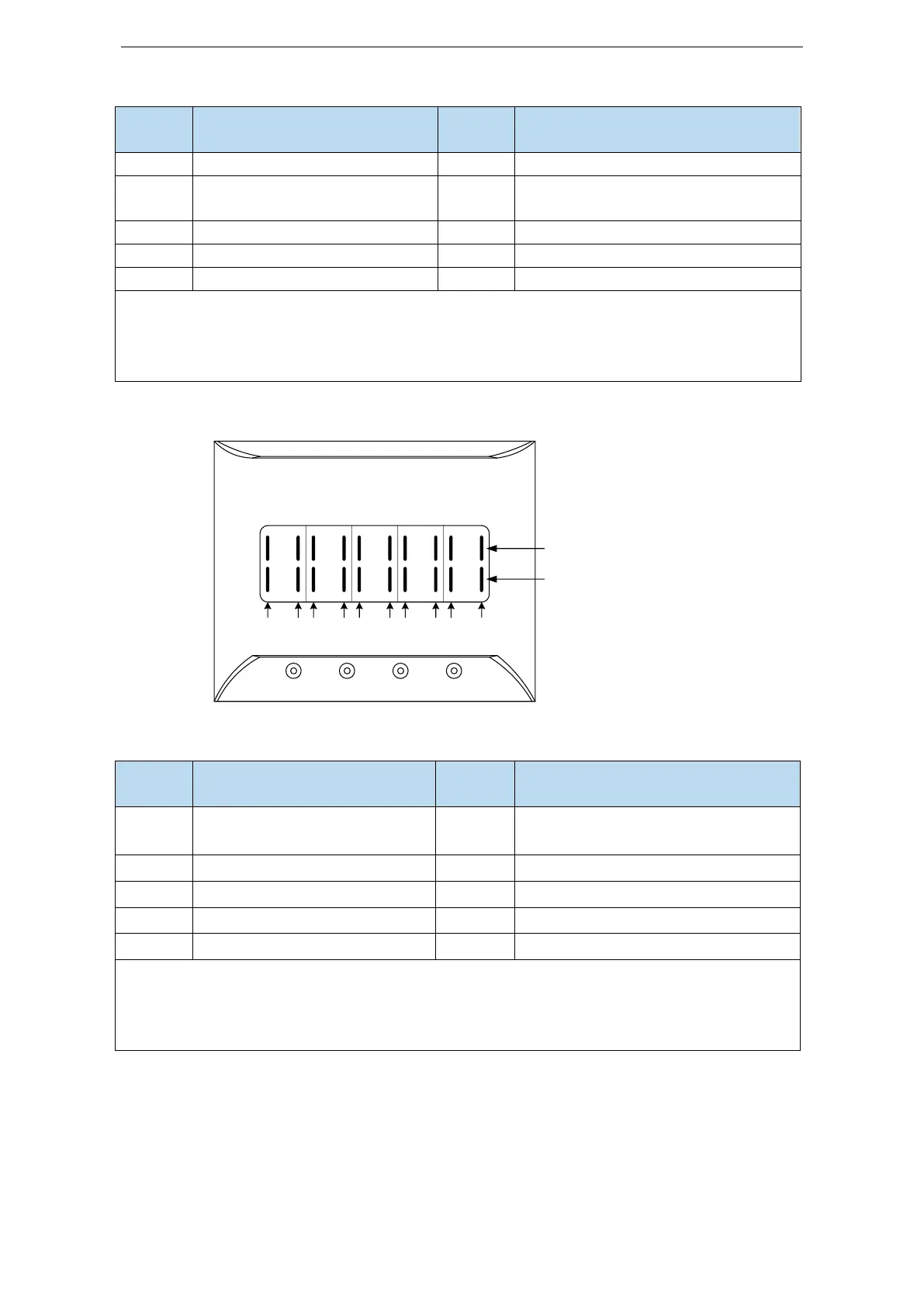

 U0-23 output signal status
STA/ESC
INC
DEC ENTER
12345678910
Lighting means that the corresponding
item has signal output
Lighting means that the corresponding
item has no signal output
 U0-23 output signal 1 distribution
Segment
code
Description
Segment
code
Description
1
Positioning completion hold
（/COIN_HD）
2
Positioning completion（/COIN）
3
Same speed detection（/V-CMP）
4
Rotate detection（/TGON）
5
Ready （/S-RDY）
6
Torque limit（/CLT）
7
Speed limit detection（/VLT）
8
Break lock（/BK）
9
Warn （/WARN）
10
Output near（/NEAR）
Note: When reading through communication, the binary numbers read from right to left correspond to
the position of / COIN_HD, / COIN, 0 means that the position signal is not output, 1 means that the
position signal has output. Example: 0x0001 means / COIN_HD has output, 0x0201 means /
COIN_HD and / NEAR has output.
