Xinje VH5 Series - Page 68

68

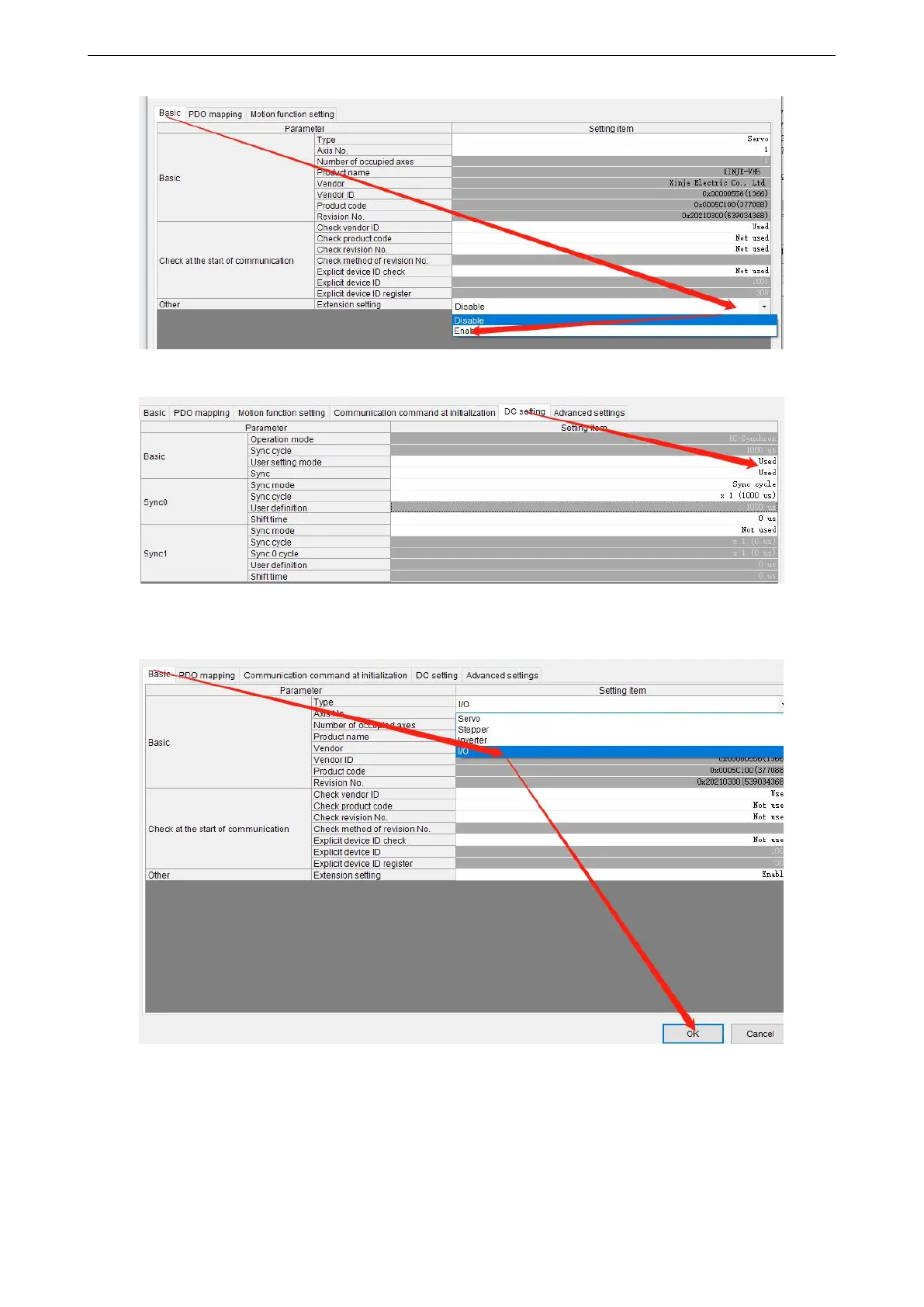

DC setting-choose DC mode
Select the operation mode supported by the slave station of the EtherCAT connection object.
5)Add PDO mapping
Add the required PDO parameters, including input and output, as shown in the figure below.
