Xinje XC3 Series User Manual

5 input specifications and wiring methods
Under this mode, the HSC value increase or decrease according to the two difference signal
(A phase or B phase). According to the times number, we have also one-time frequency mode
and four-time frequency mode. The default mode is four-time frequency mode.

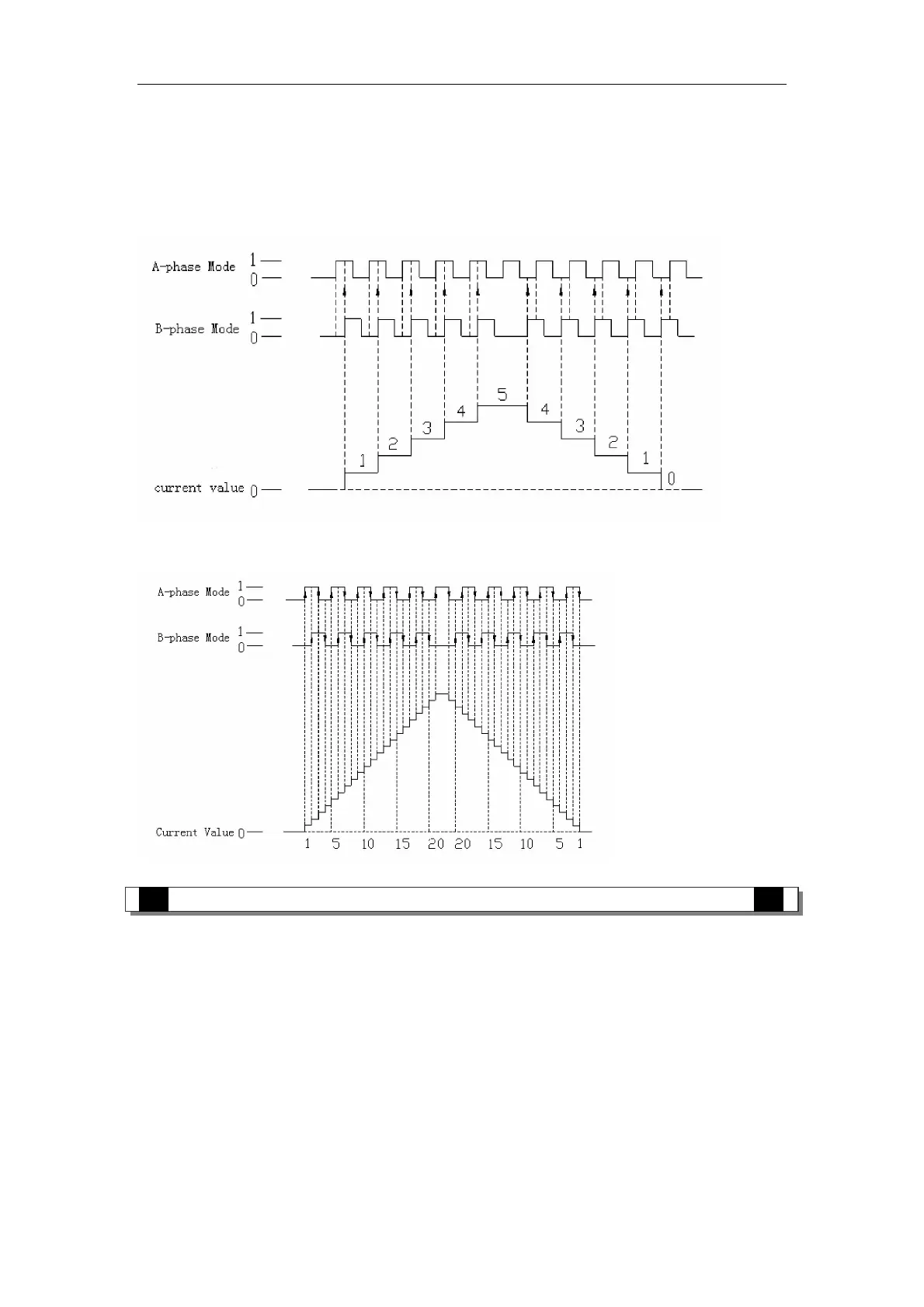

One-time Frequency Mode
Four-time Frequency Mode
5-3-2． High Speed Count Range
The HSC’s count range is: K-2,147,483,648 ~ K+2,147,483,647. If the count value exceeds
this range, up-flow or down-flow appears;
The up-flow means: the count value jumps from K+2,147,483,647 to be K-2,147,483,648,
then continue to count; The up-flow means: the count value jumps from K-2,147,483,648 to be
K+2,147,483,647, then continue to count;

Xinje XC3 Series Specifications

General

Series	XC3
Type	PLC
Communication Ports	RS232, RS485
Power Supply	24V DC
CPU Type	32-bit
Programming Software	XCP Pro
Operating Temperature	55°C
Analog Inputs	Optional, depends on expansion modules
Analog Outputs	Optional, depends on expansion modules
