Xinje XC3 Series User Manual

5 input specifications and wiring methods

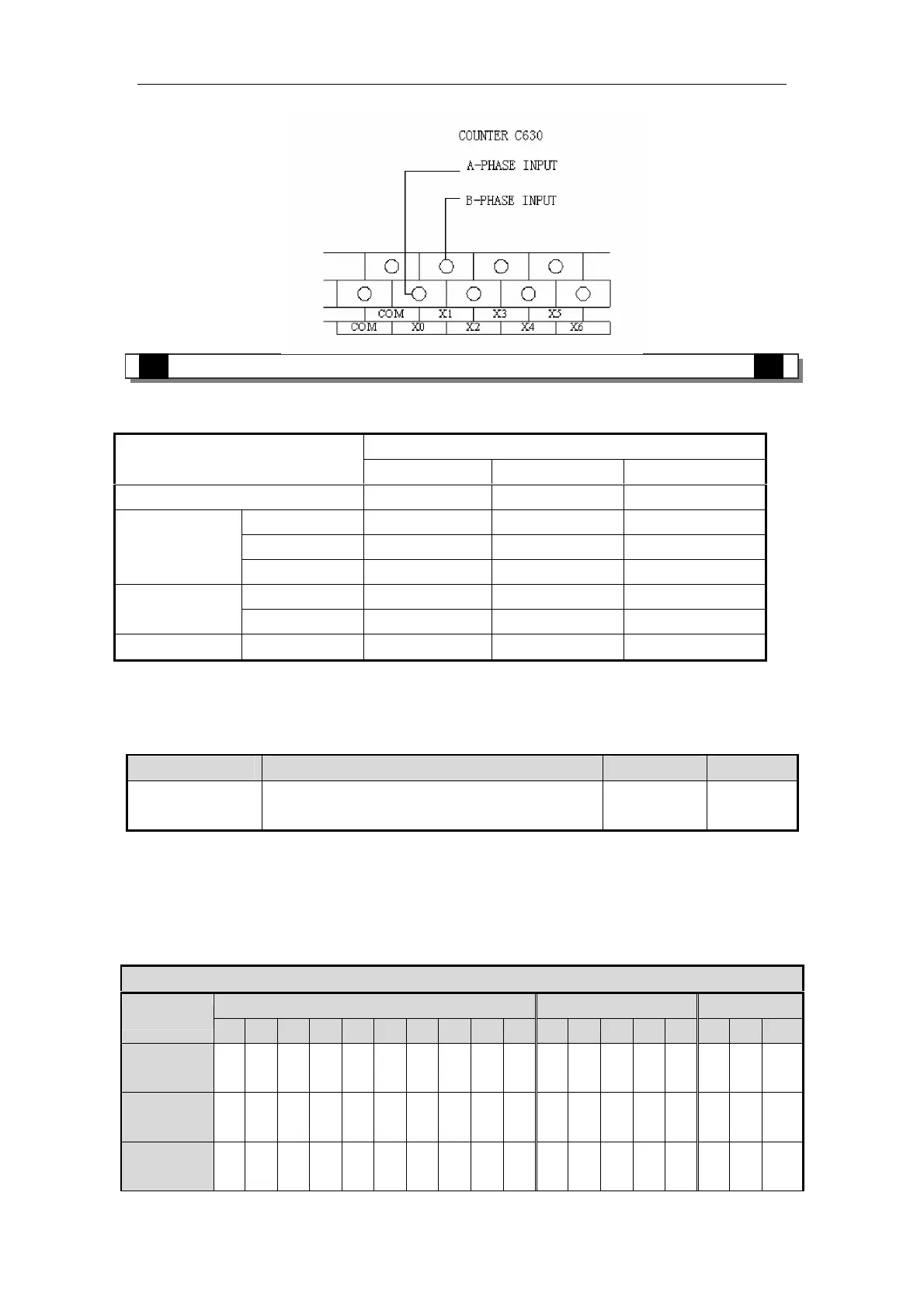

5-3-3．Input Terminals Assignment
1、High Speed counters Assignment of XC series PLC:
2、Input Terminals of HSC:
Each letter’s description:
U Dir A B
Counter's pulse input Counter's direction judgment
(OFF: increment counter, ON: decrement counter)
A phase input B
phase input
Normally, X0, X1 terminals’ input frequency can reach 80KHz under single-phase and AB
phase mode; the other terminal’s input frequency can reach 10KHz under single-phase mode and
5KHz under AB phase mode. If X input terminals are not used as high speed input port, they can
be used as common input terminals. The detailed port assignment is shown below:
XC2 whole series PLC
Increment Mode Pulse + direction mode AB phase mode
C600 C602 C604 C606 C608 C610 C612 C614 C616 C618 C620C622 C624 C626 C628 C630C632 C634
Highest
frequency
80K
80K 10K 10K 10K 80K 10K 80K 5K
4 times
frequency
√
Counter
interruption
√ √ √ √ √ √ √
PLC's equipped high speed counters assignment
PLC Model
Increasing Mode Pulse+Direction AB Phase Mode
XC2 Whole Series 5 2 2
14I/O 4 2 2
24I/O, 32I/O 6 3 3
XC3 Series
48I/O, 60I/O 4 2 2
24I/O, 32I/O 2 1 1
XC5 Series
4I/O, 60I/O 6 3 3
XCM Series 24I/O, 32I/O 2 1 1

Xinje XC3 Series Specifications

General

Series	XC3
Type	PLC
Communication Ports	RS232, RS485
Power Supply	24V DC
CPU Type	32-bit
Programming Software	XCP Pro
Operating Temperature	55°C
Analog Inputs	Optional, depends on expansion modules
Analog Outputs	Optional, depends on expansion modules
