Xinje XC3 Series User Manual

8 expansion devices

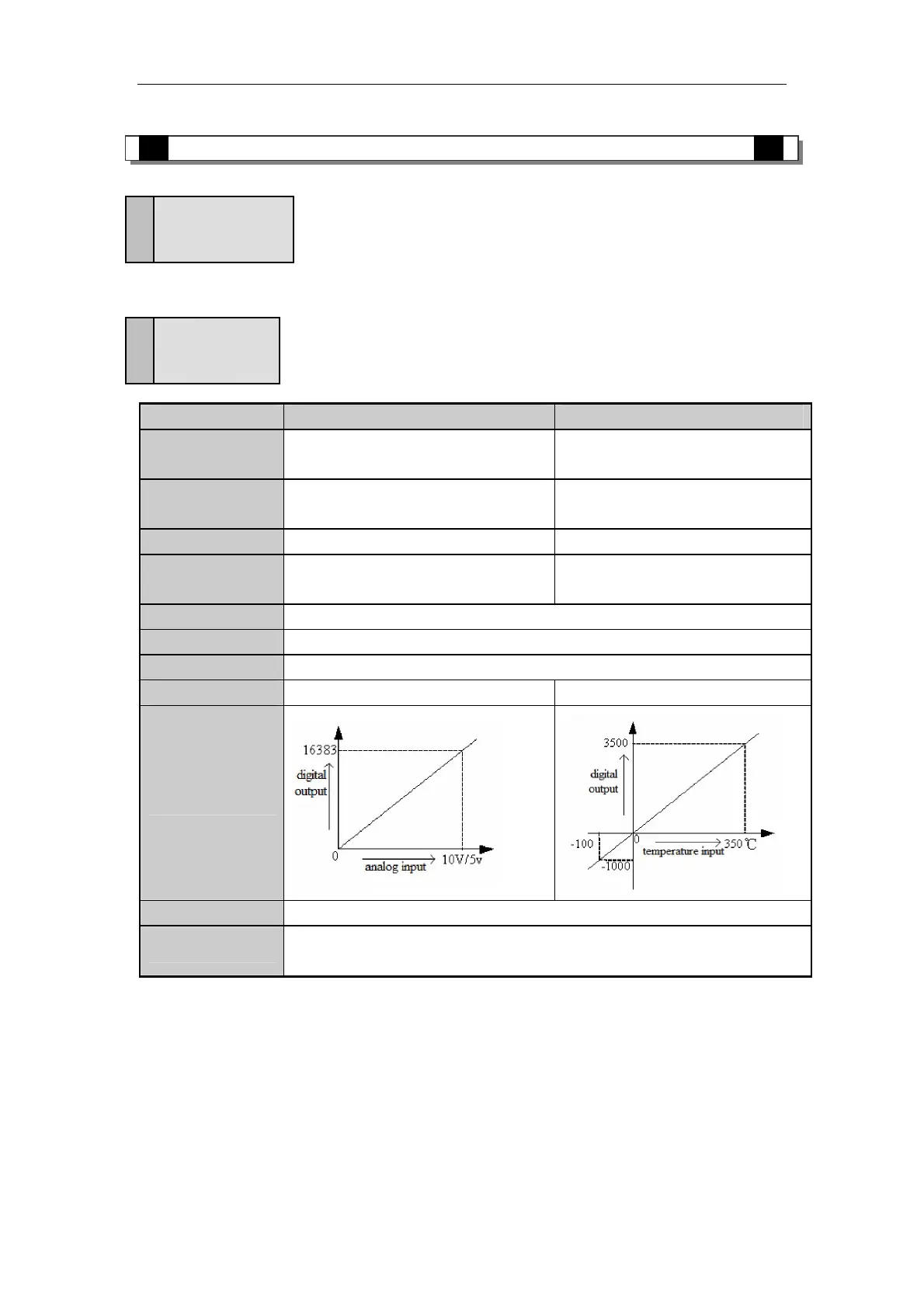

8-4-1．XC-2AD2PT-BD
Items Voltage Input Temperature Input
Analogue input
signal
DC0~5V、0~10V (the input resistor is
300kΩ)
Pt resistor Pt100 (2-line)
Temperature
testing range
- -100~350℃
Distinguish 0.15mV（10/16383） 0.1℃
Digital output
range
0~16383 -1000~3500
Integral precision ±0.8% of the full scale
Convert time 15ms×4CH
PID output value 0~K4095
Default value 0 3500
Input Specialty
Isolation No isolation among PLC’s each channel
I/O occupation
0 I/O (as operate via data register, so I/O is not limited by PLC’s standard I/O
limitation) （
Specifications 1
Specification 2
l 14 bits high precision analogue input
l 2CH voltage 0~10V、0~5V selectable; 2CH temperature input;
l Pt temperature resistor sensor input (Pt100 2-line form)

Xinje XC3 Series Specifications

General

Series	XC3
Type	PLC
Communication Ports	RS232, RS485
Power Supply	24V DC
CPU Type	32-bit
Programming Software	XCP Pro
Operating Temperature	55°C
Analog Inputs	Optional, depends on expansion modules
Analog Outputs	Optional, depends on expansion modules
