Xinje XC3 Series User Manual

6 output specification and wiring methods
Constitution of output
circuit
3

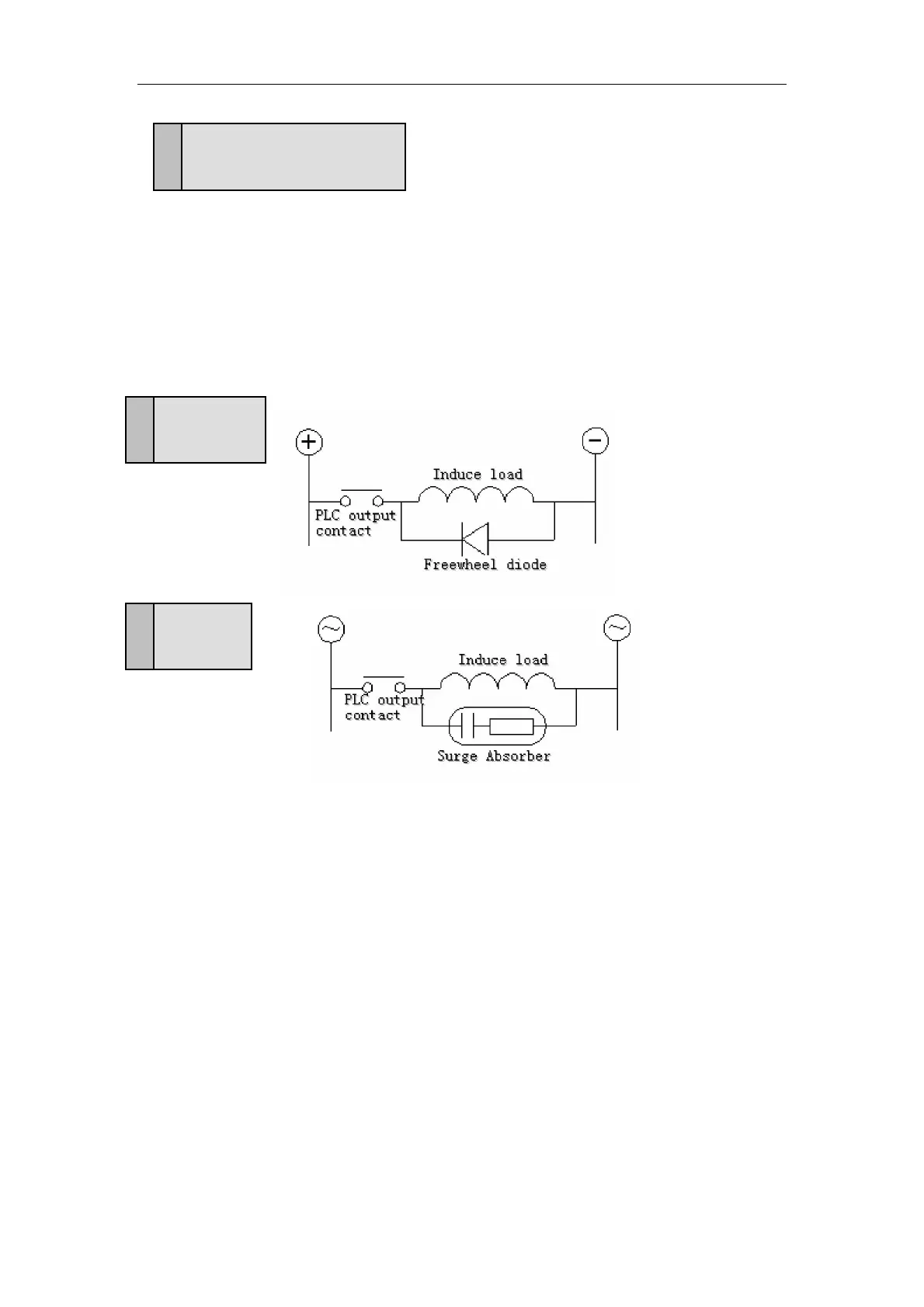

l For DC induce load, please parallel connect with commutate diode. If not
connect with the commutate diode, the contact’s life will be decreased
greatly. Please choose the commutate diode which allow inverse voltage
endurance up to 5~10 times of the load’s voltage, ordinal current exceeds
load current.
l Parallel connect AC induce load with surge absorber can reduce noise.
DC Load 4
AC Load 5

Xinje XC3 Series Specifications

General

Series	XC3
Type	PLC
Communication Ports	RS232, RS485
Power Supply	24V DC
CPU Type	32-bit
Programming Software	XCP Pro
Operating Temperature	55°C
Analog Inputs	Optional, depends on expansion modules
Analog Outputs	Optional, depends on expansion modules
