3 Mechanical Installation
3.1 Precautions
Before starting work, make sure that the safety instructions in the chapter
Introduction and Safety on page 3 have been read and understood.

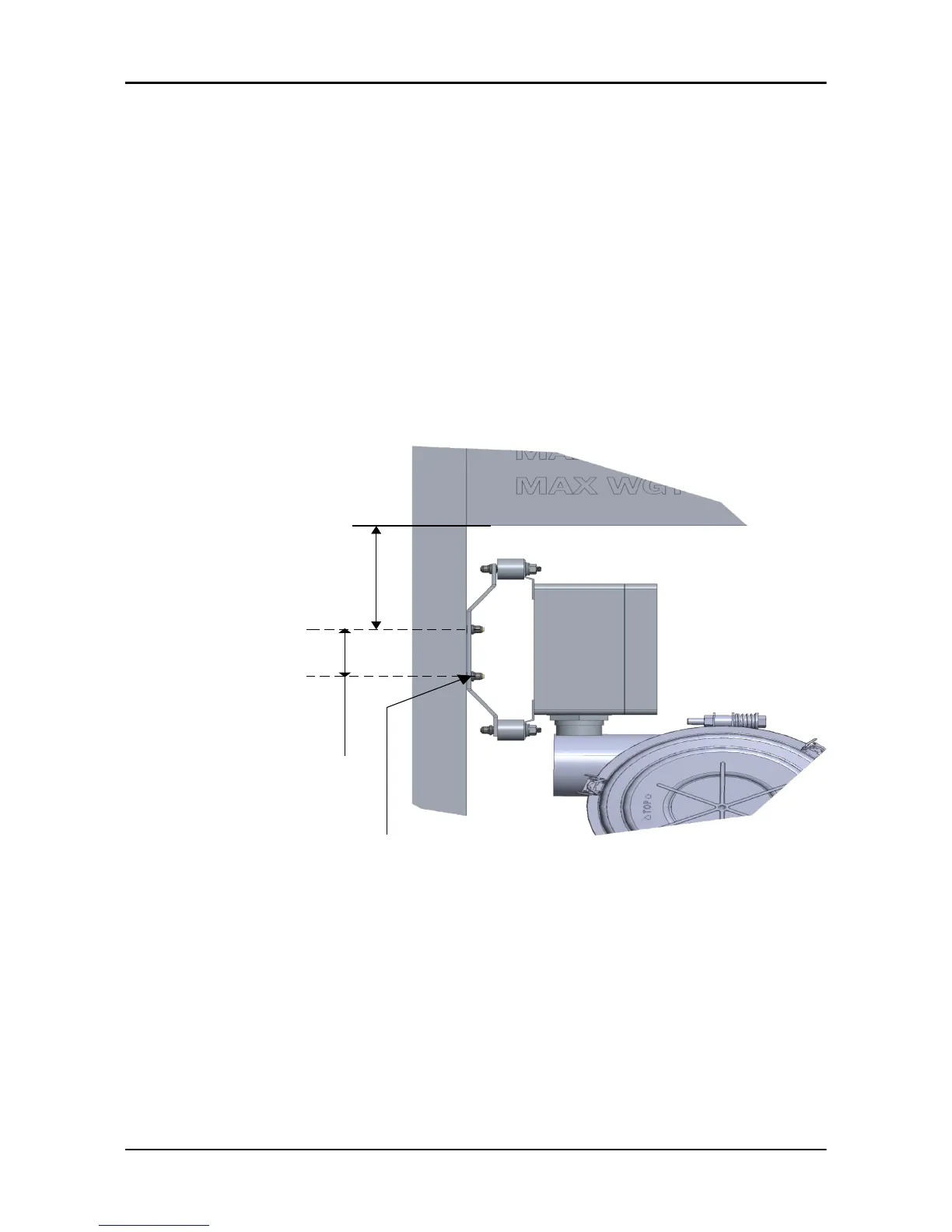

3.2 Prepare for an open engine unit
1. Drill a 6.35 mm (0.25 in) diameter hole at a distance of 127 mm (5 in) from
the lifting bail plate.
2. Drill one more 6.35 mm (0.25 in) diameter hole at a distance of
57.15 mm (2.25 in) from the first hole.
127 mm
(5 in)
57.15 mm
(2.25 in)
∅ 6.35 mm
(0.25 in)
WS011176A
3.3 Prepare for an enclosed engine unit
1. Drill two 6.35 mm (0.25 in) diameter holes as high as possible on the
enclosure.
3 Mechanical Installation
FST Installation, Operation, and Maintenance Manual 9
