Xylem FST User Manual

WS011189A

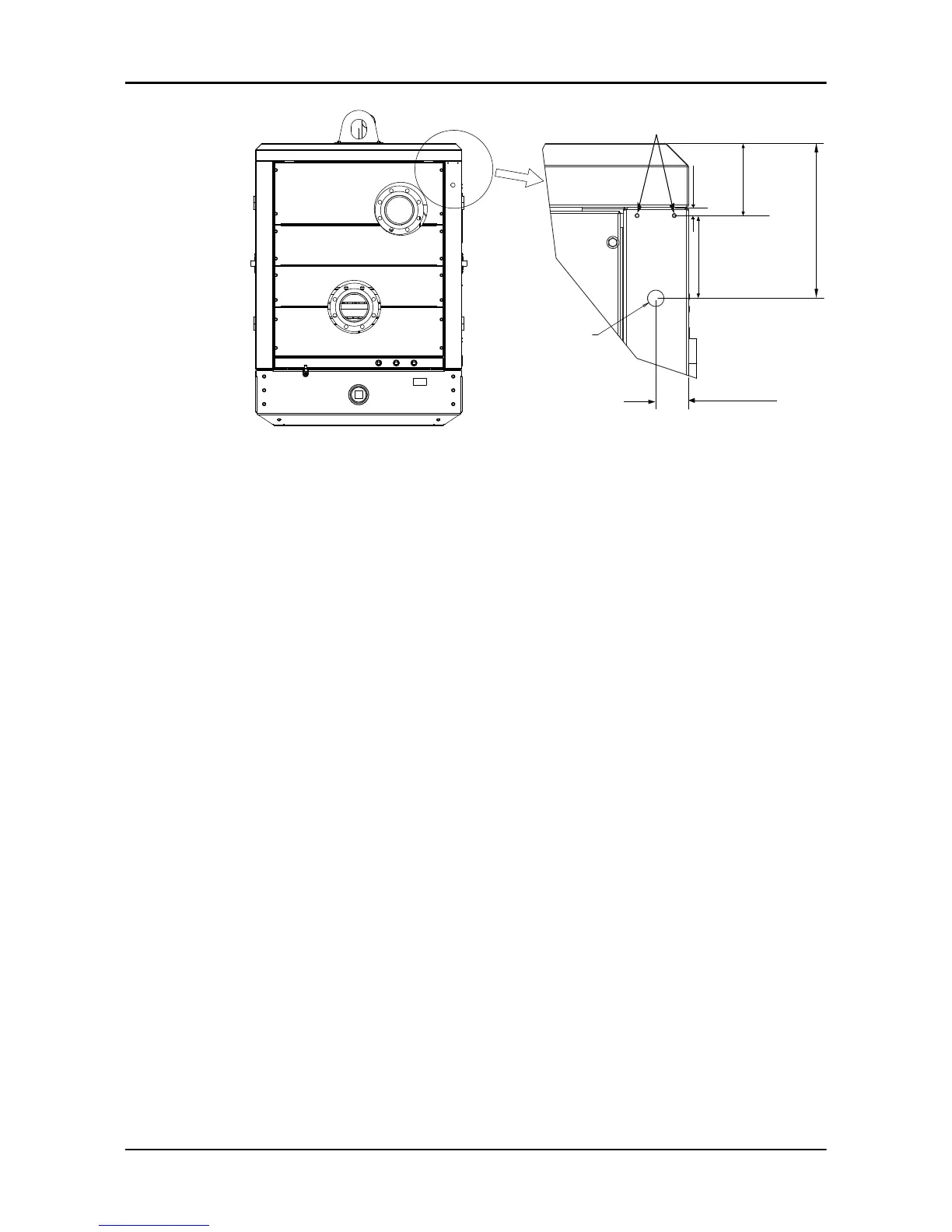

∅ 6.35 mm
(0.25 in)
127 mm
(5 in)
12.7 mm
(0.5 in)
50.8 mm
(2 in)
111.1 mm
(4.375 in)
238.1 mm
(9.375 in)
∅ 25.4 mm
(1 in)
2. Drill a 25.4 mm (1 in) diameter hole 127 mm (5 in) below the
6.35 mm (0.25 in) diameter holes.
3. Install a cable gland or a grommet on the 25.4 mm (1 in) diameter hole.
4. Route the cable harness through the 25.4 mm (1 in) hole.
3.4 Install the FST module
1. Install the following on the mounting frame:
– the mounting bracket
– the two flat washers
– the two hexagon head bolts
2. Install the four isolators on the mounting bracket.
3. Install the FST module on the four isolators.
4. Tighten the four hexagon nuts on the isolators.
3 Mechanical Installation
10 FST Installation, Operation, and Maintenance Manual
