Function
Terminal
Description
4-20 mA 1
16
VBAT fused, 50 mA
17
4-20 mA input 1
18
Ground (earth)
4-20 mA 2
19
VBAT fused, 50 mA
20
4-20mA input 2
21
Ground (earth)
RS-485
8
RS485 +
7
RS485 -
9
Ground (earth)
CAN bus
5
CANH
4
CANL
NC
Ground (earth)

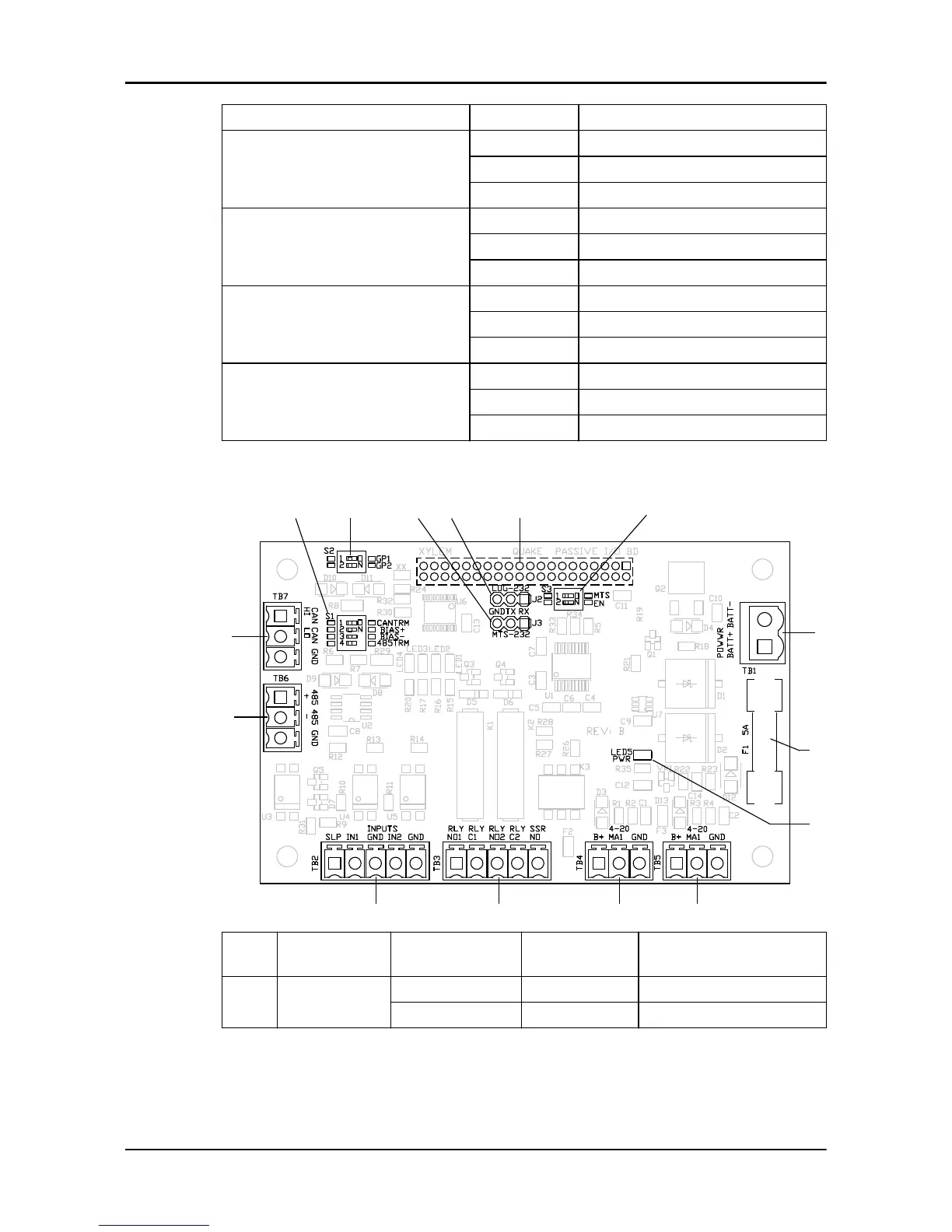

9.9 I/O board pin description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
WS011132A
Item
Name
PCB terminal
Circular connector
terminal
Description
1
Input power
TB1-1
1
+9 V to +30 V
TB1-2
2
Ground (earth)
9 Technical Reference
42
FST Installation, Operation, and Maintenance Manual
43
45
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction and Safety
5
Introduction
5
Safety Terminology and Symbols
5
User Safety
6
Power Lock-Out
7
Qualification of Personnel
7
End of Life Product Disposal
7
Spare Parts
8
Warranty
8
Support
8
2 Product Description
9
Introduction
9
Features
9
Parts
9
Extra Parts
10
3 Mechanical Installation
11
Precautions
11
Prepare for an Open Engine Unit
11
Prepare for an Enclosed Engine Unit
11
Install the FST Module
12
4 Electrical Installation
15
Precautions
15
Battery
15
Cables
15
Connect the Wiring Harness to the Control Panel
16
Connect the I/O Extension Cable
17
Connect a Flowmeter to the Control Panel
18
Connect the Suction Pressure Transducer
19
Connect the Discharge Pressure Transducer
20
Connect a Fuel Level Transducer
21
Connect the Sump Level Transducer
24
Connect Devices to IO Extension Cable
24
5 System Setup
27
Set the Communication Parameters
27
Set the Miscellaneous Parameters
27
Set the Digital Input Parameter
27
Set the Analog Input Parameters
27
6 Operation
30
Home
30
View the Device Data
30
Customer Portal
30
Download Customer Documents
30
Fleet Management
31
Change Device Details
31
Service Plans
31
Configure a Service Plan
31
Alarms
31
Acknowledge an Alarm
31
View Service Advisor
32
Remote View
32
Location Filter
32
Filter the Locations
32
Settings
32
User Administration
32
Device Administrator
34
Location Administration
34
Input Output
36
Alarm Administration
37
Right Navigation Pane
37
Control Panel
37
Data Log
38
7 Maintenance
39
Precautions
39
Battery
39
Check the Unit for General Condition
39
Replace a Damaged Unit
39
8 Troubleshooting
40
Precautions
40
Battery
40
LED Status
40
9 Technical Reference
42
Dimensions
42
Weight
42
Environmental Requirements
42
Standards
42
Approvals
42
Electrical Data
42
Communications
43
Connector Terminals
43
I/O Board Pin Description
44
