Page 98 FT-2000D OPERATING MANUAL
CONVENIENT MEMORY FUNCTIONS
The FT-2000D contains ninety-nine regular memories, labeled “
0101
0101
01” through “
9999
9999
99,” nine special programmed limit memory
pairs, labeled “
P-1LP-1L
P-1LP-1L
P-1L/
1U1U
1U1U
1U” through “
P-9LP-9L
P-9LP-9L
P-9L/
9U9U
9U9U
9U,” and five QMB (Quick Memory Bank) memories, labeled “
C-1C-1
C-1C-1
C-1” through
“
C-5C-5
C-5C-5
C-5.” Each stores various settings, not only the Main band’s (VFO-A) frequency and mode (See below). By default, the 99
regular memories are contained in one group; however, they can be arranged in up to six separate groups, if desired.
QUICK POINT:
The FT-2000D’s memory channels store the following data (not just the operating frequency):
Frequency
Mode
Clarifier status and its Offset Frequency
ANT status
ATT status
IPO status
VRF status
Roofing filter status and its Bandwidth
Noise Blanker status
CONTOUR status and its Peak Frequency
DSP Noise Reduction (DNR) status and its Reduction algorithm selection.
DSP Notch filter (NOTCH) status
NAR bandwidth status
DSP Auto Notch filter (DNF) status
Repeater Shift Direction and CTCSS Tone Frequency

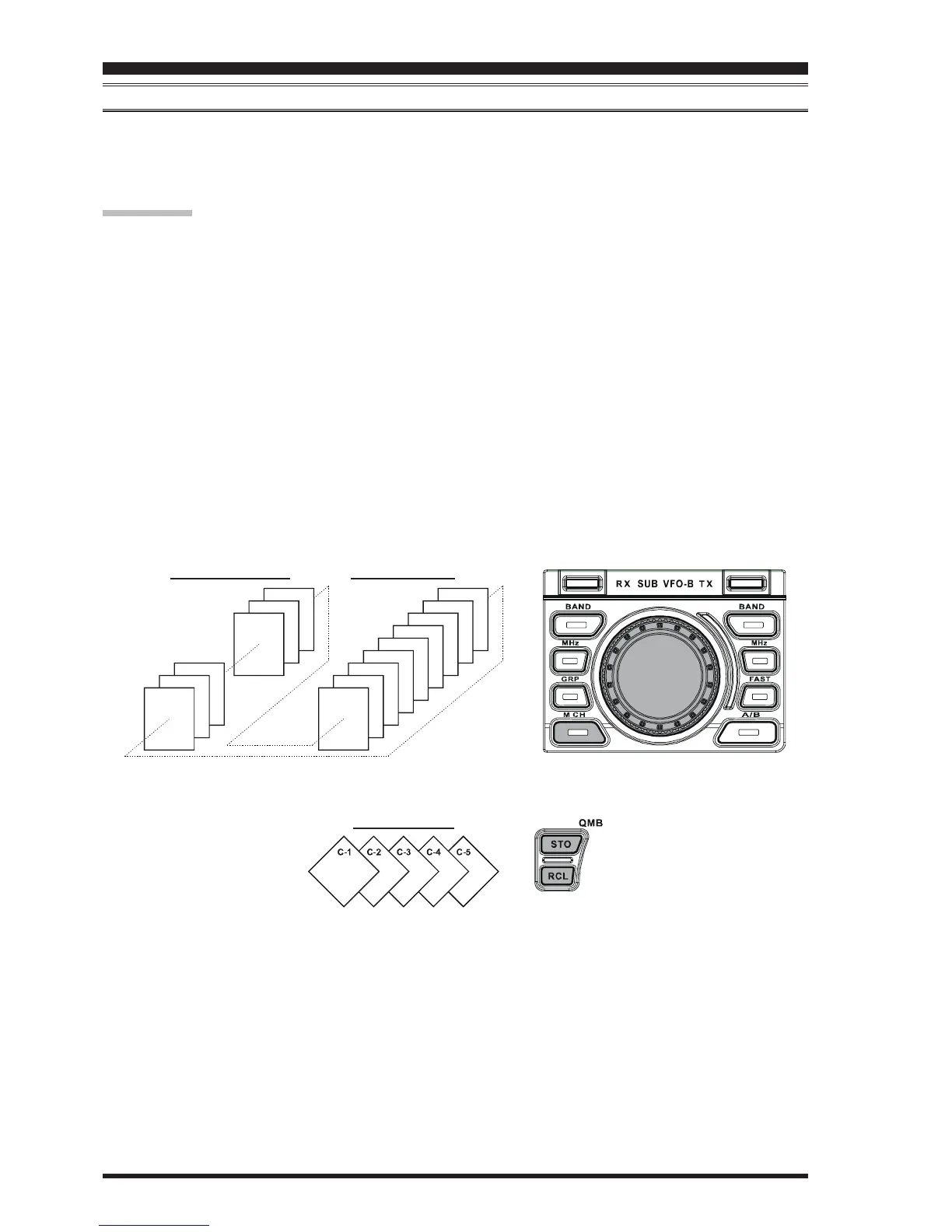

MEMORY OPERATION
QMB MEMORY CHANNEL
01
97
P-7L/7U
P-6L/6U
P-5L/5U
P-4L/4U
02
98 P-8L/8U
03
99 P-9L/9U
P-1L/1U
P-2L/2U
P-3L/3U
REGULAR MEMORY CHANNELS PMS MEMORY CHANNELS
