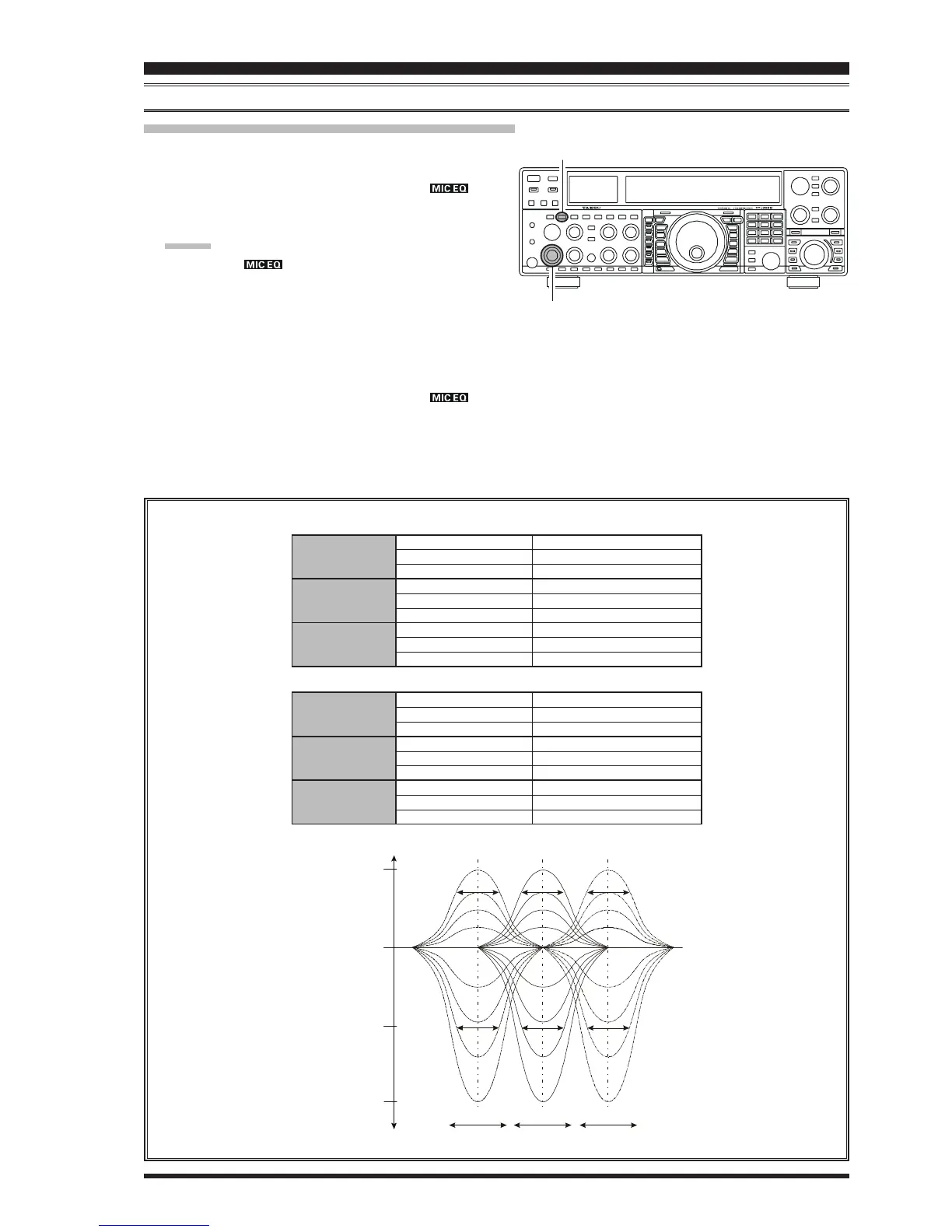

Page 71FT-2000D OPERATING MANUAL
ACTIVATING THE PARAMETRIC MICROPHONE EQUALIZER
ENHANCING TRANSMIT SIGNAL QUALITY
PARAMETRIC MICROPHONE EQUALIZER
(
SSB/AM/FM MODES
)
1. Adjust the
[
MIC
]
(gain) knob for SSB use, as described
on page 64.
2. Press the
[
PROC
]
button momentarily. The “ ”
icon will appear in the display, confirming that the
Parametric Microphone Equalizer is engaged.
ADVICE
A blinking “ ” icon indicates the Parametric
Microphone Equalizer menu settings have all been set
to “
OFFOFF
OFFOFF
OFF” (“125 tAUd EQ1 FRQ,” “128 tAUd EQ2
FRQ,” “131 tAUd EQ3 FRQ”).
3. Press the PTT switch on the microphone, and speak
into the microphone in a normal voice level.
4. To switch the Parametric Microphone Equalizer off,
press the
[
PROC
]
button repeatedly until the “ ”
icon disappears.
[
PROC
]
Button
[
MIC
]
Knob
3-STAGE PARAMETRIC EQUALIZER ADJUSTMENTS
(
SPEECH PROCESSOR: “OFF”
)
Center Frequency “125 tAUd EQ1-FREQ” “100”
(
Hz
)
~ “700”
(
Hz
)
“128 tAUd EQ2-FREQ” “700”
(
Hz
)
~ “1500”
(
Hz
)
“131 tAUd EQ3-FREQ” “1500”
(
Hz
)
~ “3200”
(
Hz
)
Parametric Gain “126 AUd EQ1-LVL”
(
Low
)
“–20”
(
dB
)
~ “+10”
(
dB
)
“129 tAUd EQ2-LVL”
(
Mid
)
“–20”
(
dB
)
~ “+10”
(
dB
)
“132 tAUd EQ3-LVL”
(
High
)
“–20”
(
dB
)
~ “+10”
(
dB
)
Q
(
Bandwidth
)
“127 tAUd EQ1-BW”
(
Low
)
“1” ~ “10”
“130 tAUd EQ2-BW”
(
Mid
)
“1” ~ “10”
“133 tAUd EQ3-BW”
(
High
)
“1” ~ “10”
3-STAGE PARAMETRIC EQUALIZER ADJUSTMENTS
(
SPEECH PROCESSOR: “ON”
)
Center Frequency “134 tAUd PE1-FREQ” “100”
(
Hz
)
~ “700”
(
Hz
)
“137 tAUd PE2-FREQ” “700”
(
Hz
)
~ “1500”
(
Hz
)
“140 tAUd PE3-FREQ” “1500”
(
Hz
)
~ “3200”
(
Hz
)
Parametric Gain “135 tAUd PE1-LVL”
(
Low
)
“–20”
(
dB
)
~ “+10”
(
dB
)
“138 tAUd PE2-LVL”
(
Mid
)
“–20”
(
dB
)
~ “+10”
(
dB
)
“141 tAUd PE3-LVL”
(
High
)
“–20”
(
dB
)
~ “+10”
(
dB
)
Q
(
Bandwidth
)
“136 tAUd PE1-BW”
(
Low
)
“1” ~ “10”
“139 tAUd PE2-BW”
(
Mid
)
“1” ~ “10”
“142 tAUd PE3-BW”
(
High
)
“1” ~ “10”
QQ
QQQ
f3f2f1
100 700Hz ～ 700 1500Hz ～ 1500 3200Hz ～
Q
+10dB
-10dB
-20dB
Parametric Gain
0 dB
