Stereo Pair Aux Send Block Diagram 105
01V—Owner’s Manual

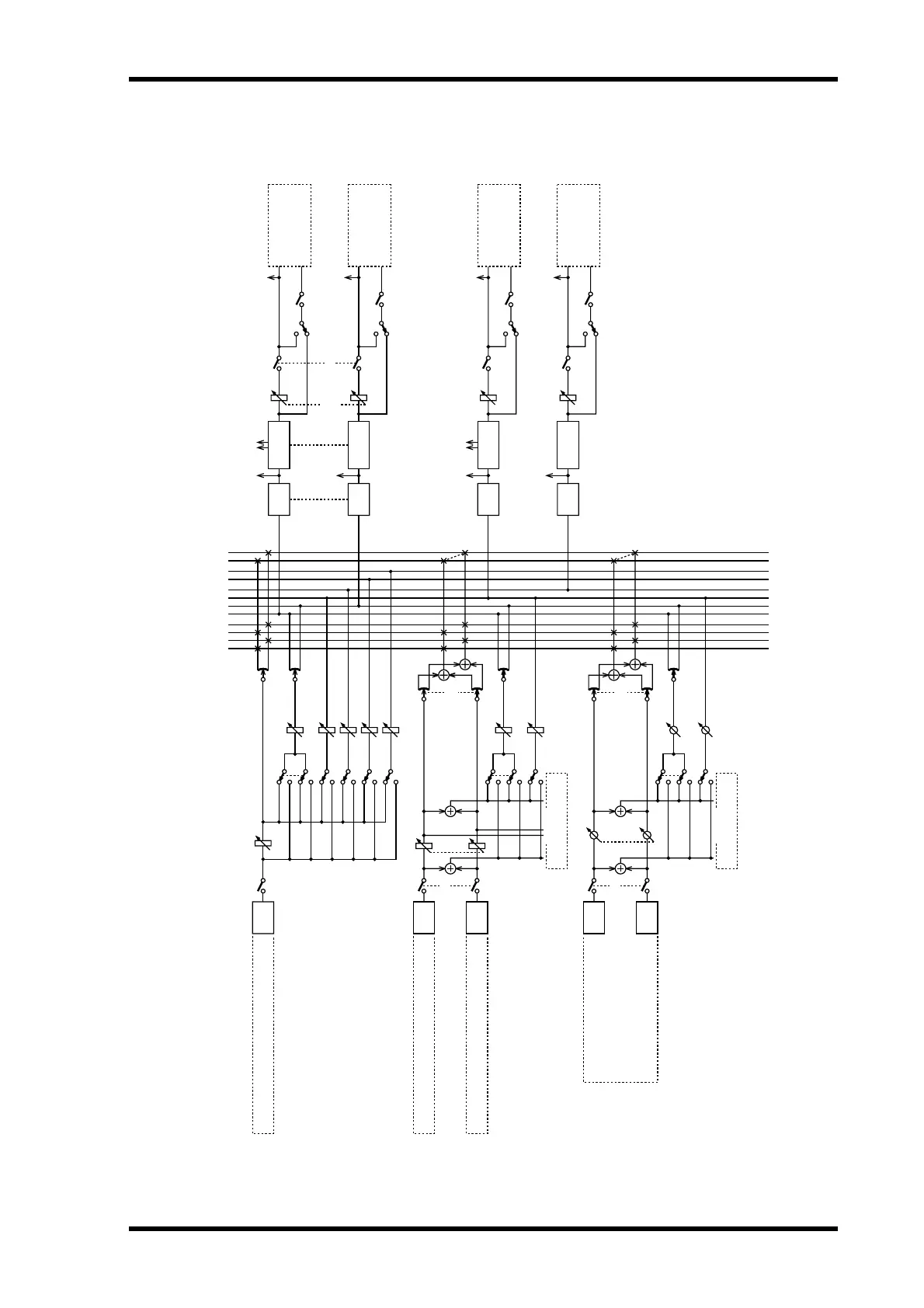

Stereo Pair Aux Send Block Diagram
Unchanged
Unchanged
EFF1, 2
CH INPUT 14, 16 CH INPUT 13, 15
4-Band
PEQ PEQ
4-Band
PAN*
ON
Unchanged
Unchanged Unchanged DELAY
DELAY DELAY
Unchanged
ON
PAN*
AUX 2 AUX 1
AUX 2 AUX 1
CH INPUT 1-12
RL
STEFFAUX
121234
BUS
4321
Meter
ON
LISTEN LISTEN
Meter
Unchanged Unchanged
4-Band
PEQ
Dynamics
Meter
Meter Meter
Dynamics
PEQ
4-Band
CH Fader
CH Fader
AUX1/2
AUX1/2 AUX1/2
AUX3
AUX3 AUX3
AUX4
EFF1 EFF2
AUX/EFF
PRE/POST
PAN
AUX1/2 PAN
AUX1/2 PAN AUX1/2 PAN
*PAN: INDIVIDUAL/GANG/INV. GANG
EFF RTN
Rotary
AUX 1/2
master fader
AUX 4 AUX 3
AUX 4 AUX 3
Meter
ON ON
LISTEN LISTEN
Meter
Unchanged Unchanged
4-Band
PEQ
Dynamics
Meter
Meter Meter
Dynamics
PEQ
4-Band
AUX 3
master fader
AUX 4
master fader
Aux send panpots are available on input channels 1 through 16 when aux sends are paired. In this diagram, aux sends 1 and 2 are paired.
