126 Chapter 12—Effects

01V—Owner’s Manual

For Input Channels 17–24

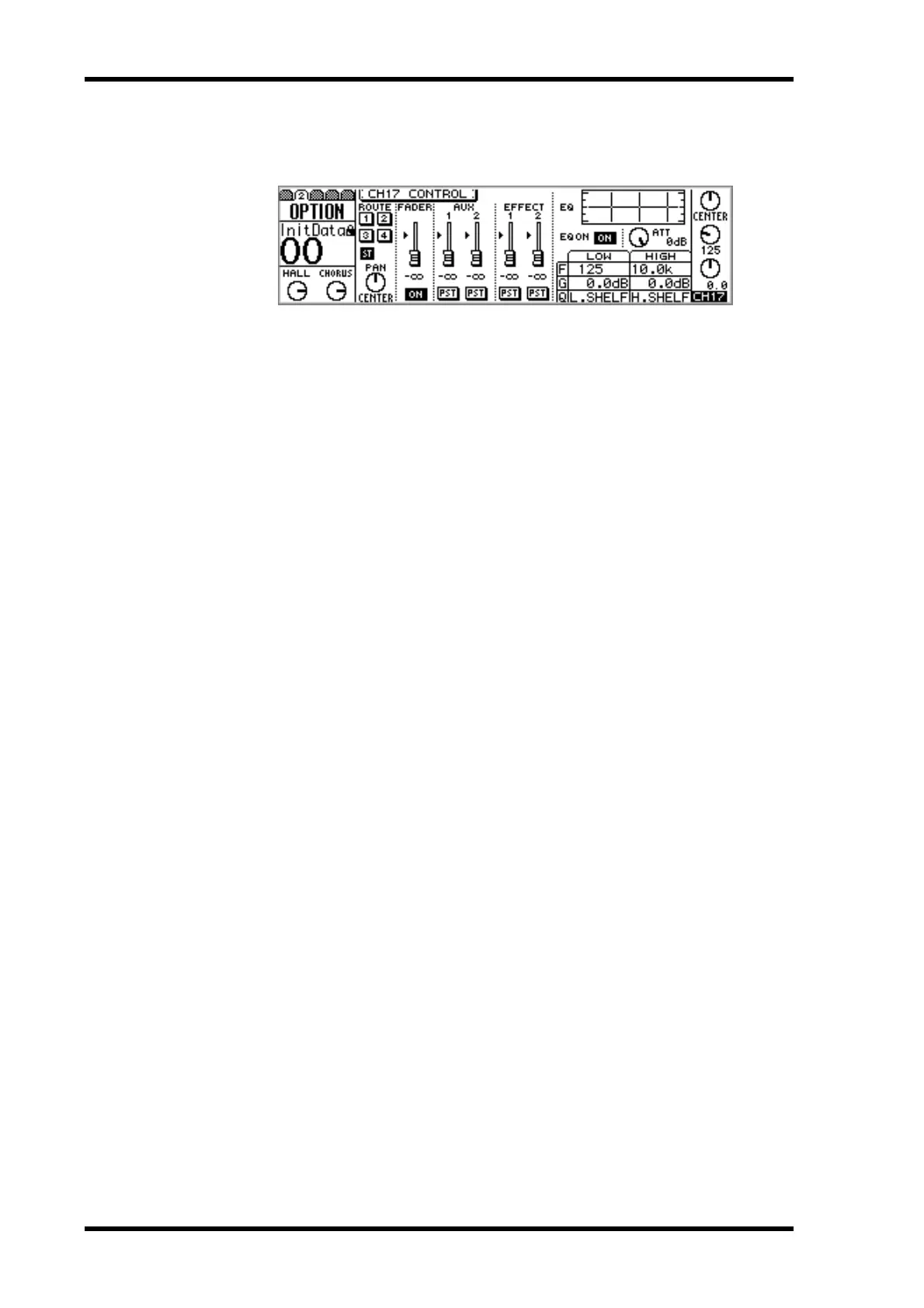

1. Use the [OPTION I/O] button to locate OPTION page 2, as shown below.

2. Use [SEL] buttons 17 through 24 to select channels.

3. Use the cursor buttons to select the EFFECT PRE/POST switches, and the

PARAMETER wheel or [–1/DEC] and [+1/INC] buttons to set them.
