Inputs & Outputs 21
01V—Owner’s Manual
C 2TR IN
These are phono jacks with a –10 dBV nominal input level.
Signals input here can be monitored via the monitor out and
phones when the MONITOR–2TR IN switch is set to
2TR IN. The stereo outputs of a master recorder can be con-
nected here for confidence monitoring and master playback.
By setting the 15/16–2TR IN switch to 2TR IN, 2TR IN sig-
nals can be fed to input channels 15 and 16 for mixing with
other signals.
D 2TR OUT
These are phono jacks with a –10 dBV nominal output level.
The 2TR OUT signal is the same as the stereo out signal. A
cassette deck, DAT, or MiniDisc deck connected here can be
used to record the stereo mix.
E PHONES
This is a stereo (TRS) phone jack, to
which a pair of stereo headphones can be
connected for monitoring. The phones
signal is the same as the monitor out sig-
nal, and the level is set using the phones
level control.

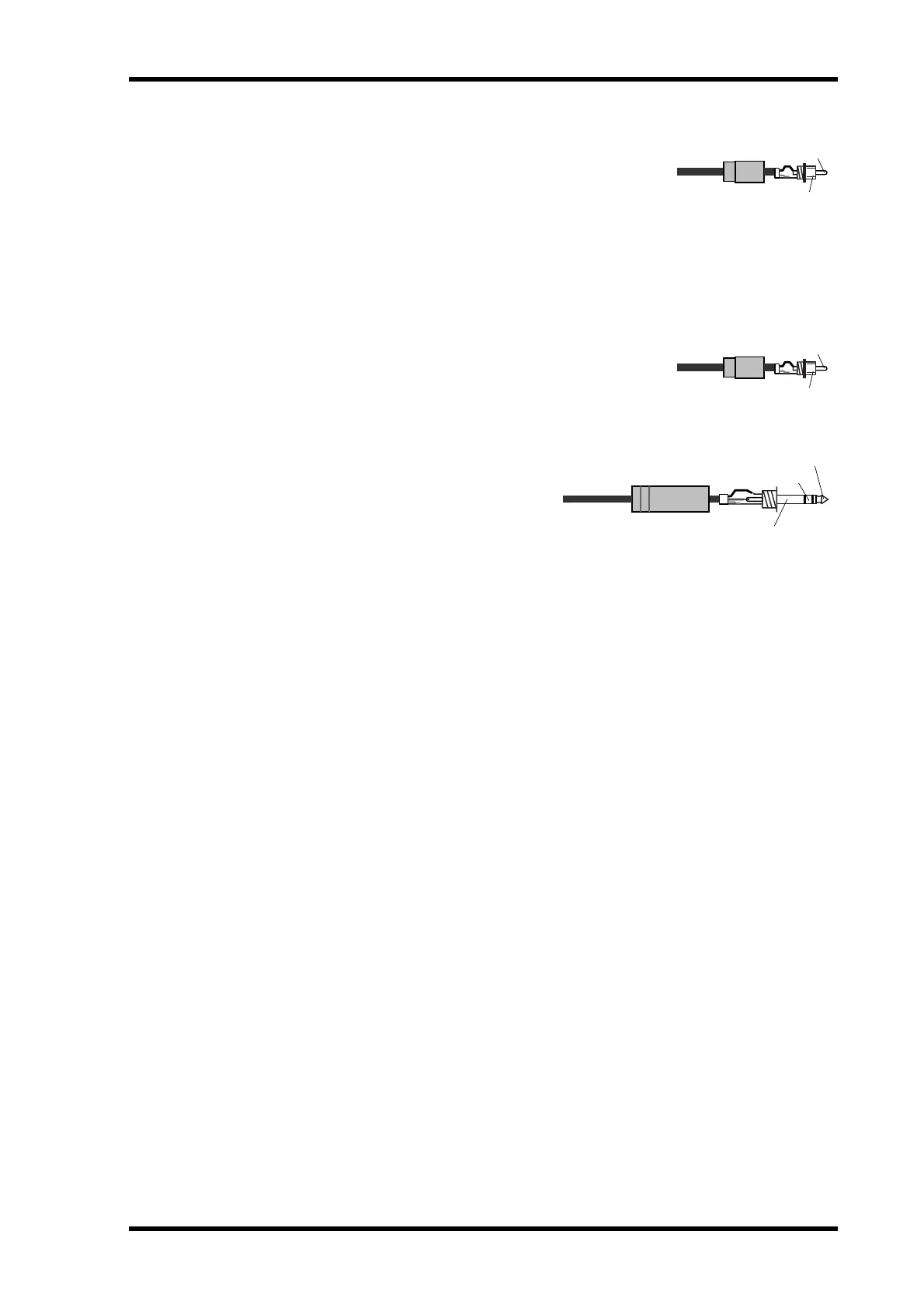

Phono plug
Tip
Sleeve
Phono plug
Tip
Sleeve
1/4" TRS phone plug
Tip (left)
Ring (right)
Sleeve (ground)
