54 Chapter 5—Input Channels

01V—Owner’s Manual

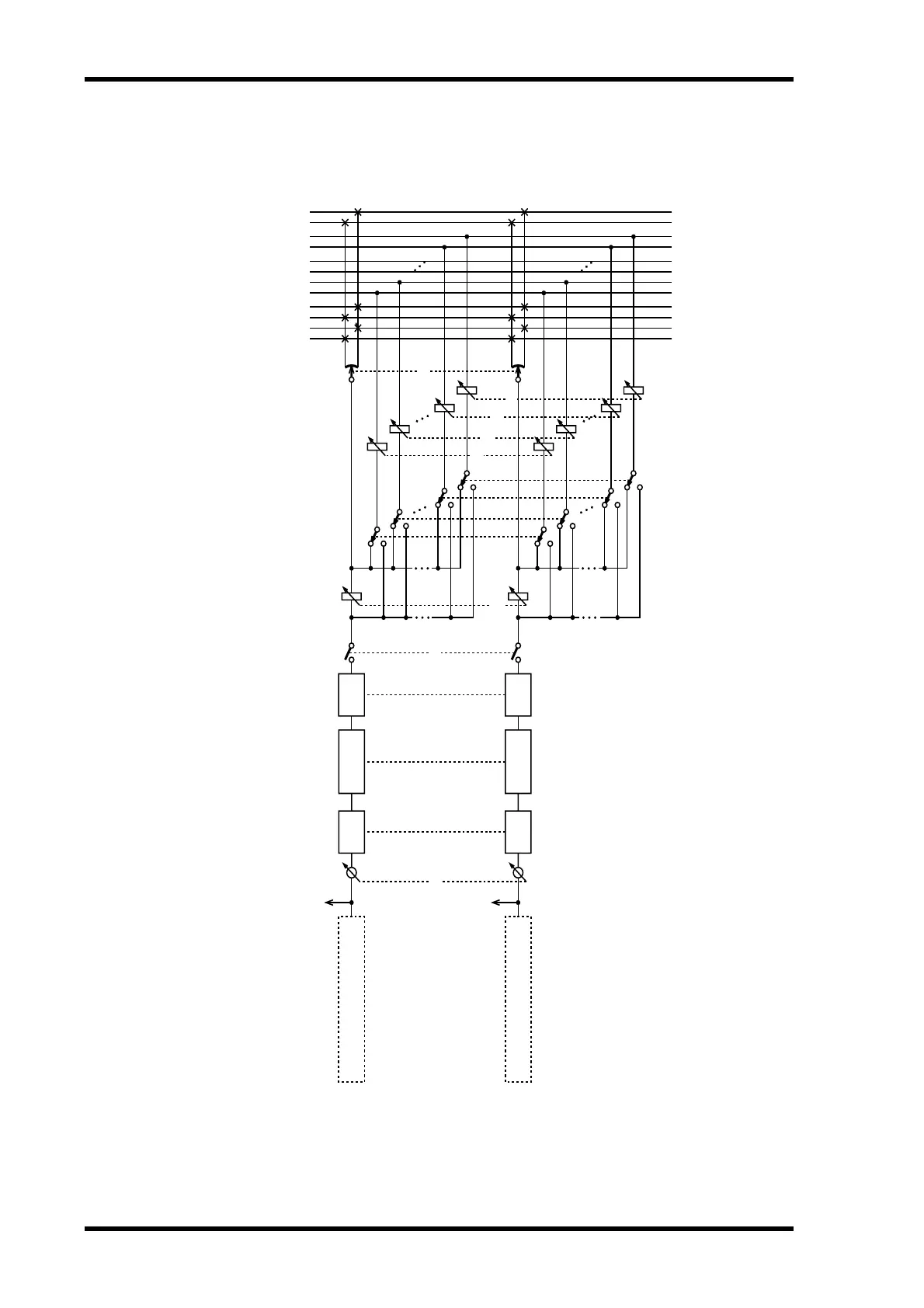

Input Channel Pair Block Diagram

Delay

Meter

Delay

Meter

CH INPUT 2, 4...12

(even channels)

CH INPUT 1, 3...11

(odd channels)

ATT

*PAN: INDIVIDUAL/GANG/INV. GANG

PAN*

ON

Unchanged

Unchanged

1234

BUS

432121

AUX EFF ST

LR

Dynamics

4-Band

PEQ

Dynamics

4-Band

PEQ

CH Fader

CH Fader

AUX1

AUX2

EFF1

EFF2

AUX/EFF

PRE/POST
