Yamaha DM2000 Service Manual

25
DM2000
ROUTING
12
34
56
78
STEREOFOLLOW PAN DIRECT
DISPLAY
q
w
e r
t

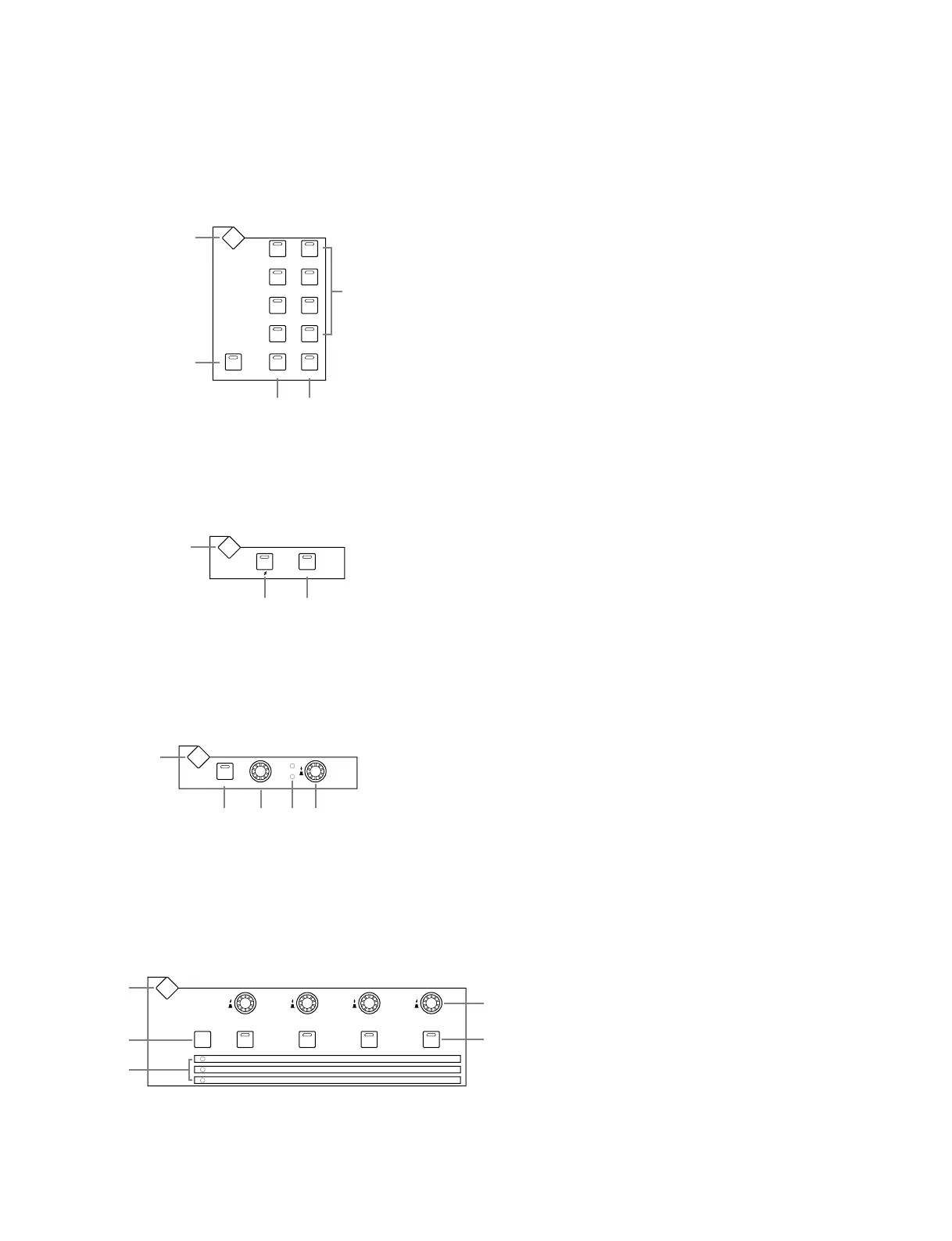

ROUTING
q ROUTING [DISPLAY] button
w [FOLLOW PAN] button
e [STEREO] button
r [DIRECT] button
t ROUTING [1]–[8] buttons
PHASE/INSERT
q PHASE/INSERT [DISPLAY] button
w Phase [ø] button
e [INSERT ON] button
PHASE / INSERT
INSERT ON
DISPLAY
q
w e
DELAY
ON
TIME
FB
MIX
DISPLAY
q
w e r t
DELAY
q DELAY [DISPLAY] button
w [ON] button
e [TIME] control
r [FB/MIX] indicators
t [FB/MIX] control
AUX / MATRIX SEND
LEVEL
ON
LEVEL
ON
LEVEL
ON
LEVEL
ON
AUX 1 / MATRIX 1
AUX 5
AUX 9
AUX 2 /MATRIX 2
AUX 6
AUX 10
AUX 3 / MATRIX 3
AUX 7
AUX 11
AUX 4 /MATRIX 4
AUX 8
AUX 12
BANK
DISPLAY
q
r
t
w
e
AUX/MATRIX SEND
q AUX/MATRIX SEND
[DISPLAY] button
w [BANK] button
e Bank indicators
r [LEVEL] controls
t [ON] buttons

Yamaha DM2000 Specifications

General

Type	Digital Mixing Console
Channels	96
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Aux Sends	12
Matrix	8 x 8
EQ Bands	4-band parametric
Word Clock	Yes
Effects	Internal Effects Processors
Digital I/O	AES/EBU, ADAT
Display	LCD
