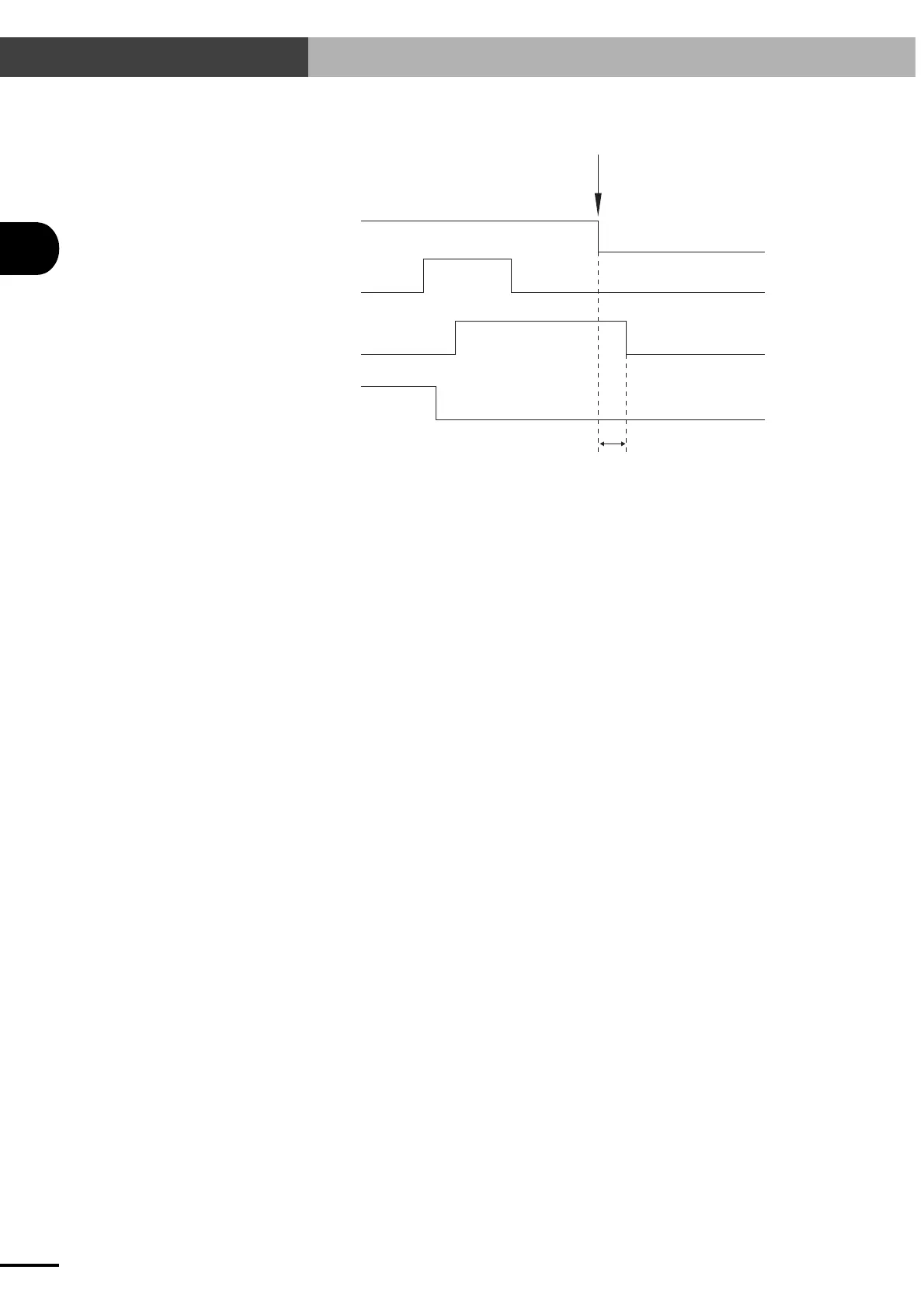

3-6-3 When interlock signal is input
LOCK
BUSY
END
Interlock
Dedicated
command
Differs according to execution command
■ When a interlock signal is input while a dedicated command is being executed, the BUSY
signal turns off. The READY and END signals remain unchanged.
3-6 I/O Control Timing Charts
