DSP-AX620
DSP-AX620
13
1. DSP THROUGH
There are 6 sub menu items.
Details of DIAG menu
Note: (SDOxx) represents a terminal name of AC3D3.
The shaded square ( ) means that the element included in it does not operate.

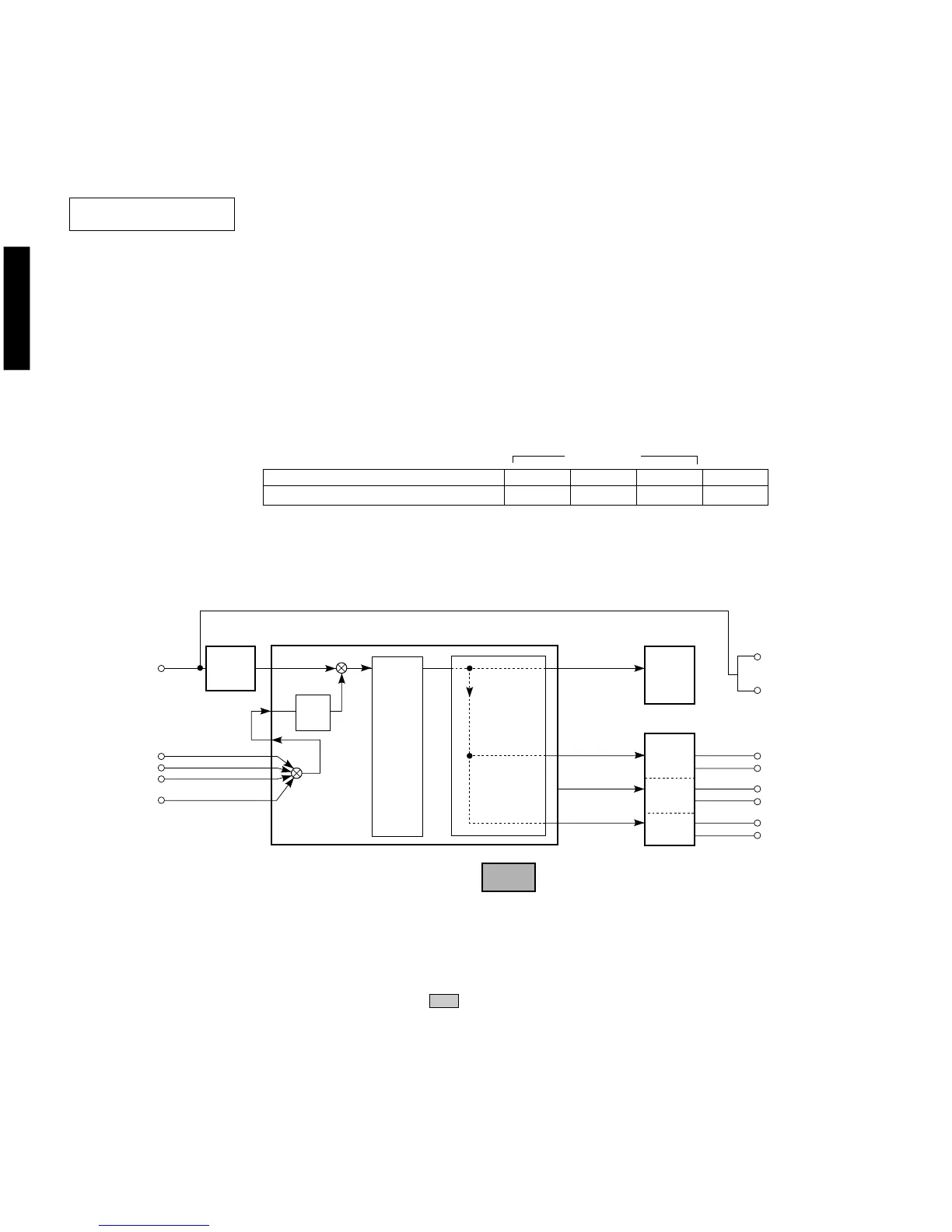

ANALOG BYPAS [Remote control code: 7A88(PRG 1)]
The input mode is fixed to use the analog (A/D) system.
The L/R signal is output through the analog bypass without using the DSP section.
C/SWFR and RL/RR signals are output through DSP (see the signal path in the figure
below) without using the external DRAM. (Head margin included)
SWFR
RL
RR
FL
FR
C
D/A
AK4382
CODEC
(D/A)
AK4527
L/R
L/R
L/R
L/R
SDOB0
SDOB2
SDOB1
SDOB3
CODEC
(A/D)
AK4527
DIR
PCM THR
MAIN
DSP
(Decoder)
SUB DSP
DIGITAL
ANALOG
AC3D3 YSS928
4M DRAM
0dB
0dB/-20dB
Mute
-12dB
L
R
Head margin
CENTER: 0 dBFS
FL/FR: Mute
RL/RR: -12 dBFS
SWFR: Add L/R signal at -20 dBFS.
1.ANALOG BYPAS
Condition
Both ch, -26 dBV, volume 0dB
MAIN L/R
16 dBV
CENTER
- dBV
REAR L/R
- dBV
SWFR
- dBV
Reference
INPUT : DVD ANALOG
SWFR: 50Hz, Others: 1kHz
SPEAKERS
