Yamaha DSP-AX620 Service Manual

DSP-AX620
DSP-AX620
5

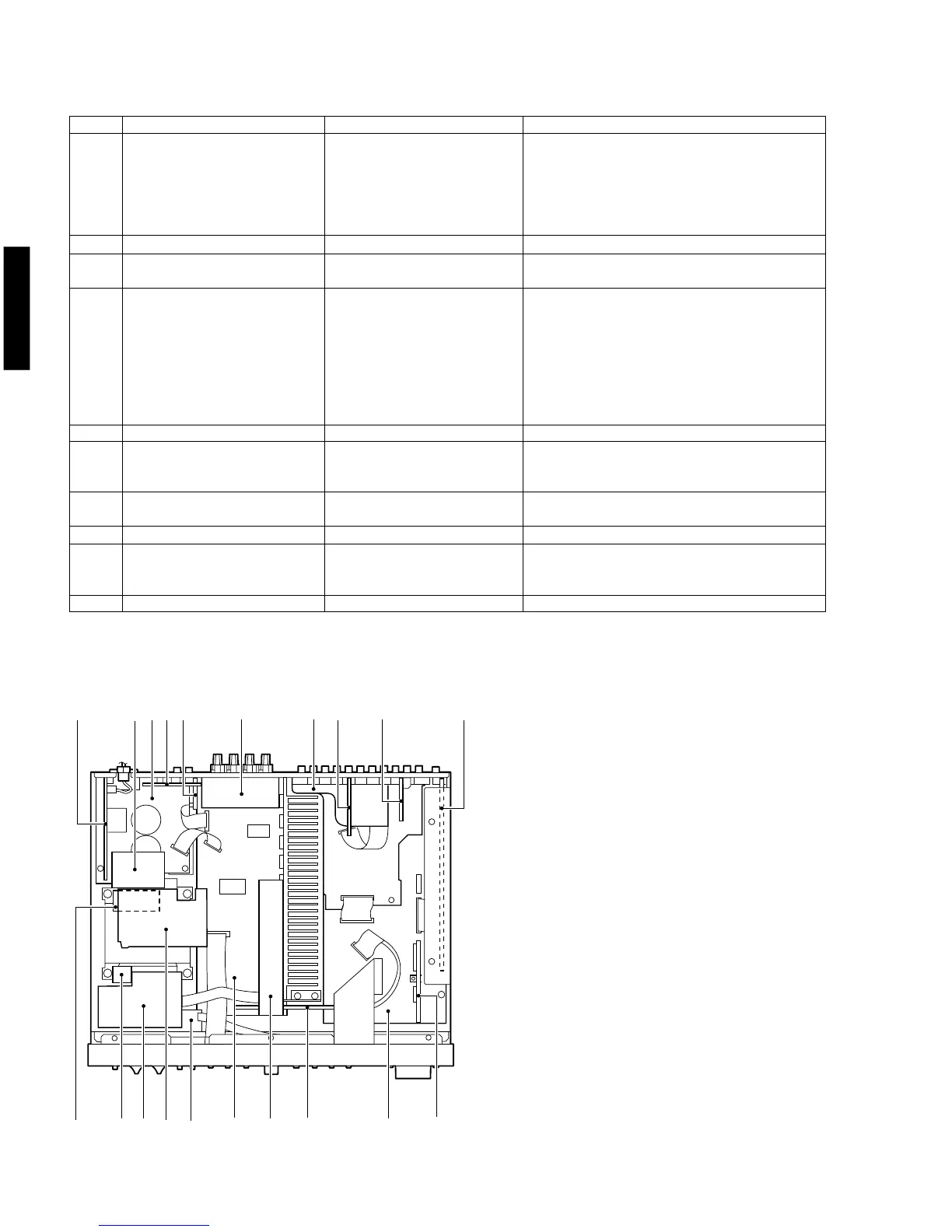

■ INTERNAL VIEW
● SET MENU TABLE
No. SET MENU PRESET VALUE SETTING RANGES
1. SPEAKER SET
1A CENTER SPEAKER LARGE LARGE/SMALL/NONE
1B MAIN SPEAKER LARGE LARGE/SMALL
1C REAR L/R SPEAKER LARGE LARGE/SMALL/NONE
1D LFE/BASS OUT BOTH SUBWOOFER/MAIN/BOTH
1E MAIN LEVEL NORMAL NORMAL/–10dB
2. L/R BALANCE 0 L — 0 — R (0.5 step) (L/R 10.0)
3. HP TONE CTRL BASS : 0dB –6dB — +3dB (1dB step)
TREBLE : 0dB –6dB — +3dB
4. I/O ASSIGNING
4A COMPONENT VIDEO INPUT [A] : DVD DVD, D-TV/CBL, VCR1, VCR2/DVR, V-AUX
[B] : D-TV/CBL D-TV/CBL, VCR1, VCR2/DVR, V-AUX
4B OPTICAL OUT (1) : MD/CD-R DVD, MD/CD-R, D-TV/CBL, VCR1, VCR2/DVR, V-AUX, PHONO, CD, TUNER
4C OPTICAL IN (2) : MD/CD-R MD/CD-R, DVD, D-TV/CBL, VCR1, VCR2/DVR, PHONO, CD, TUNER
(3) : DVD MD/CD-R, DVD, VCR1, VCR2/DVR, PHONO, CD, TUNER
(4) : D-TV/CBL MD/CD-R, VCR1, VCR2/DVR, PHONO, CD, TUNER
4D COAXIAL IN (5) : CD MD/CD-R, DVD, D-TV/CBL, VCR1, VCR2/DVR, V-AUX, PHONO, CD, TUNER
5. INPUT MODE DVD : AUTO AUTO/LAST
6. DOLBY DIGITAL SET
6A LFE LEVEL SPEAKER : 0dB –20dB — 0dB
6B DYNAMIC RANGE SPEAKER : MAX MAX/STD/MIN
7. DTS SET
LFE LEVEL SPEAKER : 0dB –10dB — +10dB
8. SPEAKER DELAY TIME CENTER : 0ms 0ms — 5ms (1ms step)
9. DISPLAY SET BLUE BACK : AUTO AUTO/OFF
OSD SHIFT : 0 –5 — +5
DIMMER : 0 –4 — 0
10. MEMORY GUARD OFF ON/OFF
qwerty ui !0
!1 !2 !3 !4 !5 !8 !9 @0!6 !7
o
q POWER (1) P.C.B.
w MAIN (6) P.C.B.
e MAIN (5) P.C.B.
r POWER (4) P.C.B. (R, T only)
t MAIN (7) P.C.B. (B, G only)
y MAIN (3) P.C.B.
u OPERATION (3) P.C.B.
i OPERATION (5) P.C.B.
o INPUT (4) P.C.B.
!0 DSP P.C.B.
!1 POWER (5) P.C.B. (B, G only)
!2 OPERATION (9) P.C.B.
!3 POWER (2) P.C.B.
!4 POWER (6) P.C.B. (R, T only)
!5 MAIN (4) P.C.B.
!6 MAIN (1) P.C.B.
!7 POWER (3) P.C.B.
!8 MAIN (2) P.C.B.
!9 INPUT (1) P.C.B.
@0 INPUT (2) P.C.B.
