DSP-AX620
DSP-AX620
4

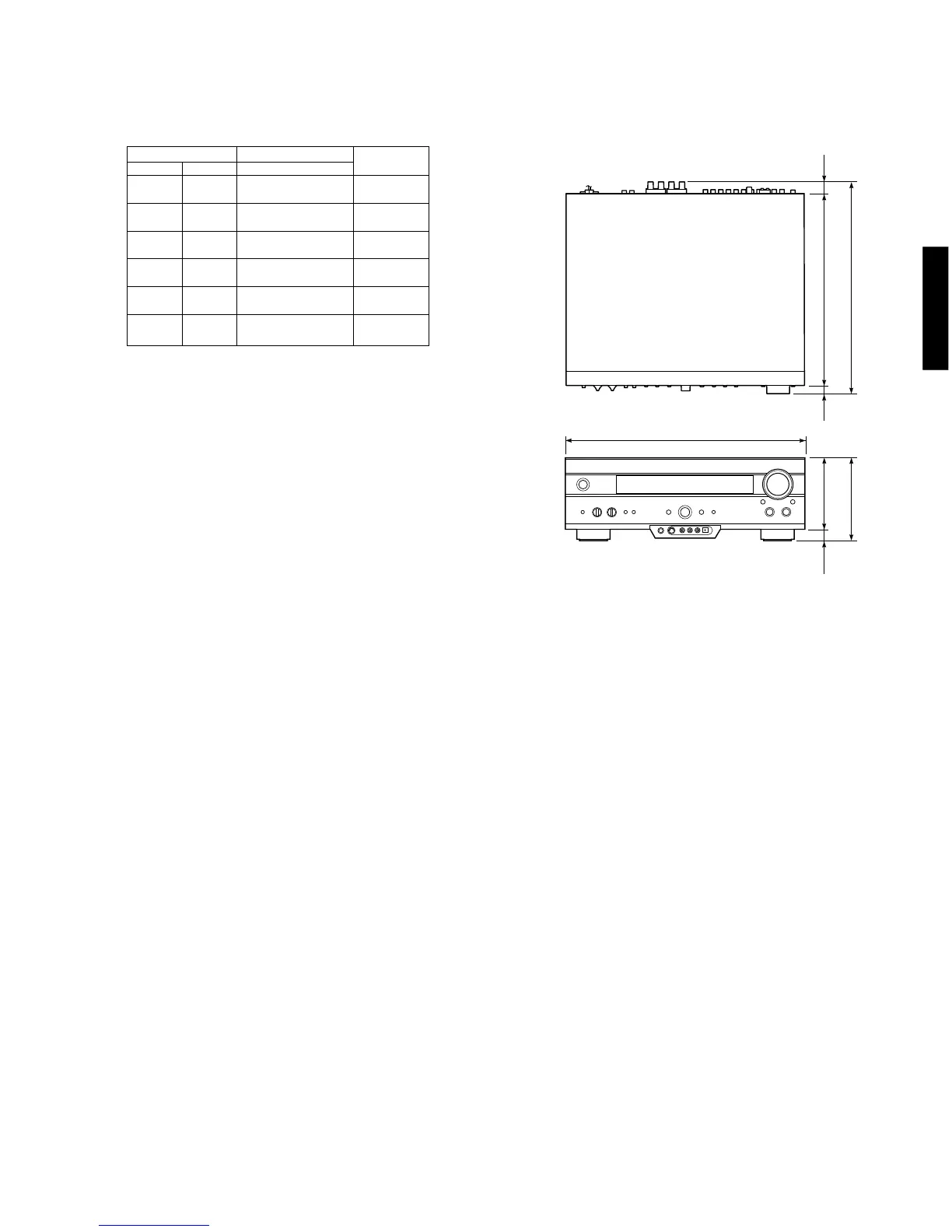

● DIMENSIONS
352.5 (13–7/8")
390 (15–5/16")
16
(5/8")
435 (17–1/8")
21
(13/16")
21.5
(13/16")
130
(5–1/8")
151
(5–15/16")
Units : mm (inch)
Manufactured under license from Dolby Laboratories.
"Dolby Digital", "AC-3", "Pro Logic", and the double-D
symbol V are trademarks of Dolby Laboratories. © 1992-
1997 Dolby Laboratories. All rights reserved.
Manufactured under license from Digital Theater Systems,
Inc. US Pat. No. 5,451,942 and other world-wide patents
issued and pending. "DTS", "DTS Digital Surround", are
trademarks of Digital Theater Systems, Inc. copyright
1996 Digital Theater Systems, inc. All rights reserved.
S : S video signal
V : Composite video signal
O : YES
X: NO
— : NO CARE
Caution: Superimposing function is not usable for component signals.
● SUPERIMPOSING
Input DVD, etc. Output Superimposing
Terminal Signal Monitor connection
S O O O (On screen)
VO — X
SO X X
VO — O (On screen)
S O O O (On screen)
VX — X
SO X X
VX — O (Blue back)
SX — X
VO — O (On screen)
SX — O (Blue back)
VX — O (Blue back)
