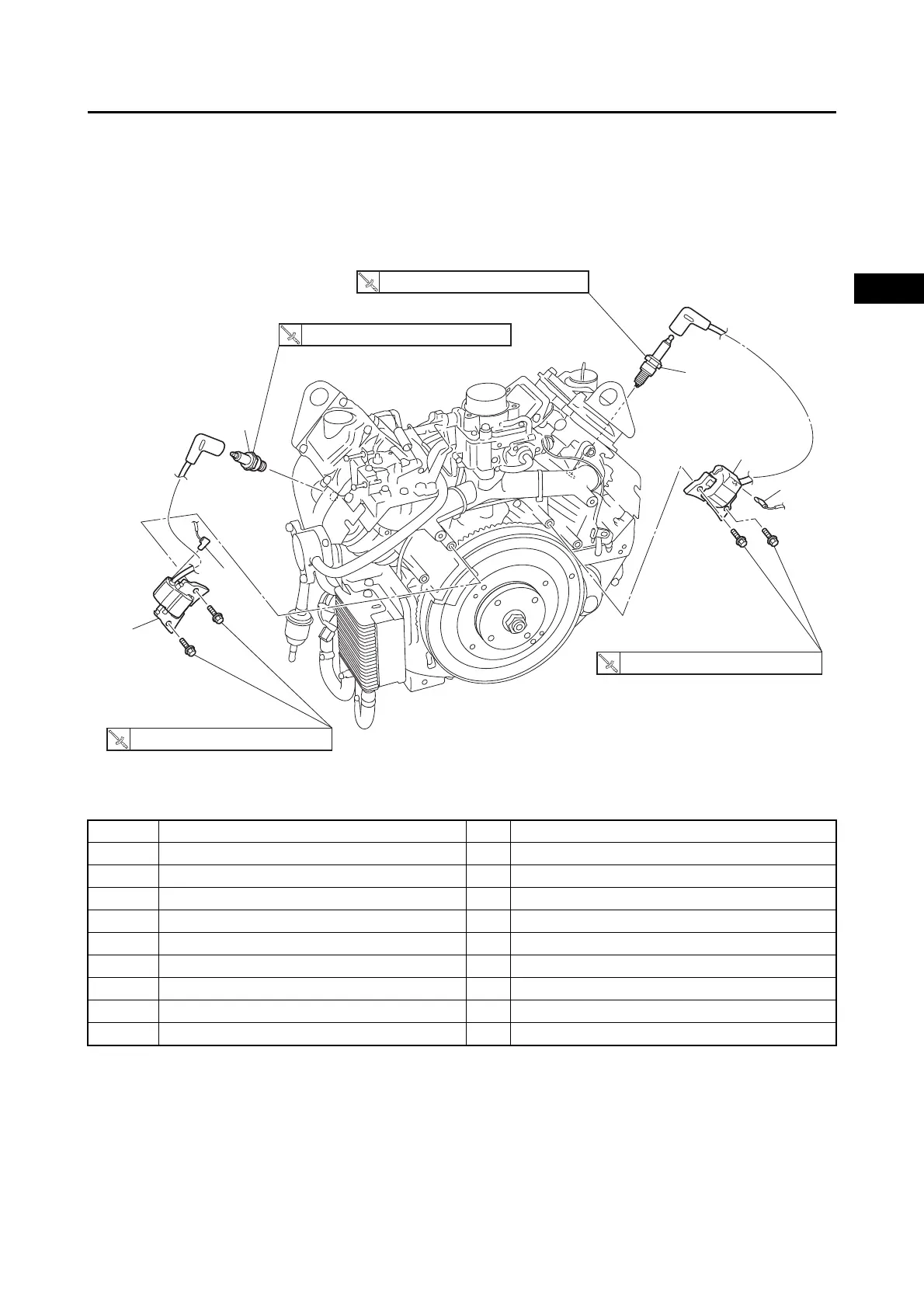

TCI UNITS, FLYWHEEL AND STATOR COIL ASSEMBLY
TCI UNITS
Order Job/Parts to remove Q’ty Remarks
Removing the TCI unit Remove the parts in the order listed.
Muffler Refer to “MUFFLER” on page 3-5.
Air filter Refer to “AIR FILTER” on page 3-3.
Fan case Refer to “CASE AND FAN” on page 3-14.
1 TCI unit #1 lead connector 1 Disconnect.
2 TCI unit #2 lead connector 1 Disconnect.
3 TCI unit #1 1
4 TCI unit #2 1
5 Spark plug 2
8 N・m (0.8 kgf・m, 5.9 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
1
3
5
5
13 N・m (1.3 kgf・m, 9.6 lb・ft)
13 N・m (1.3 kgf・m, 9.6 lb・ft)
2
4
