Yamaha EH63 - Installing the Cylinder Head Assemblies

CYLINDER HEAD COVERS, CYLINDER HEADS
3-33
1
2
3
4
5
6
7
8
9
10
ENGINE
Out of specifications  Resurface or replace.

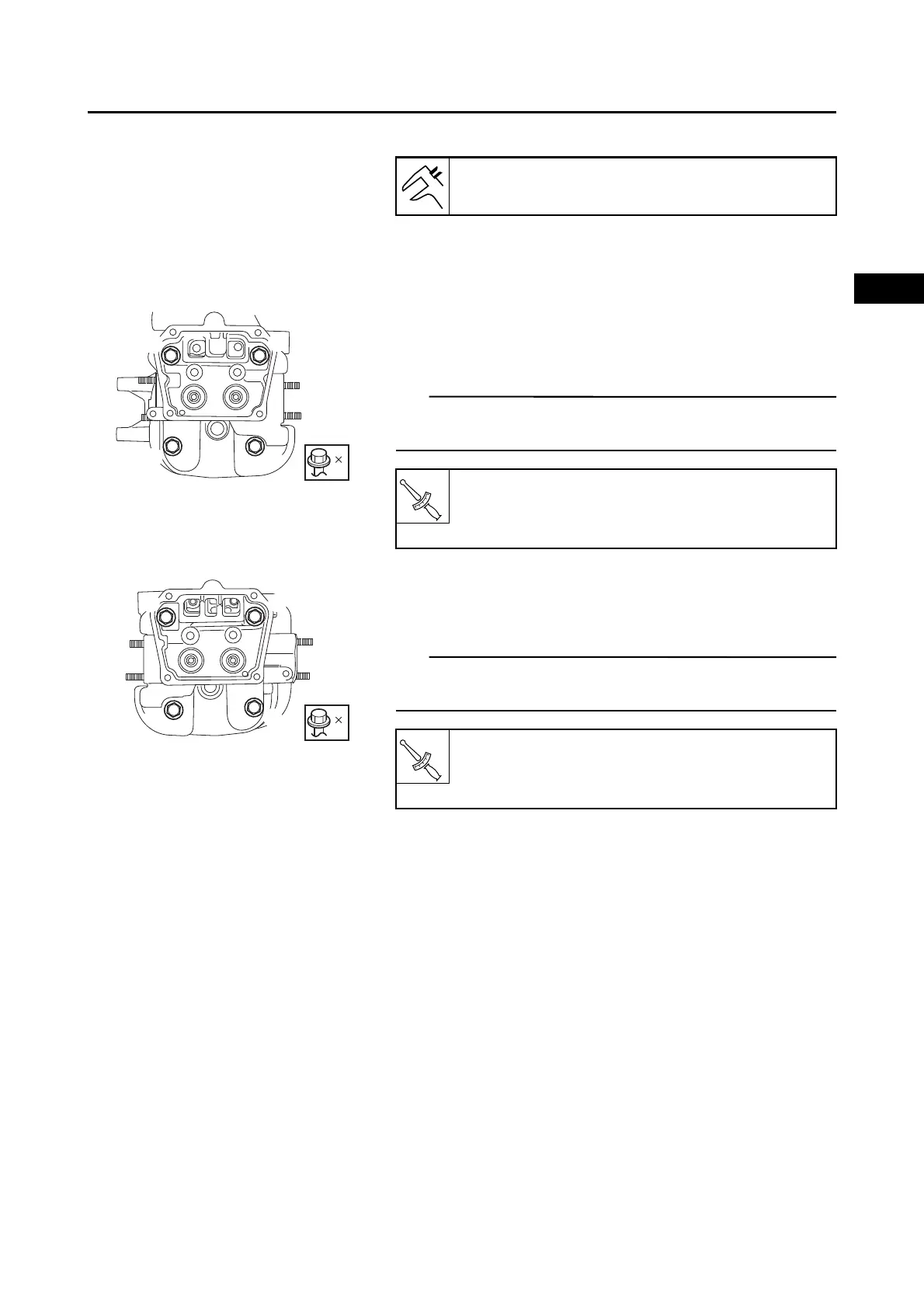

INSTALLING THE CYLINDER HEAD ASSEMBLIES
1. Install:
• Cylinder head assembly #1
• Cylinder head bolt “1”–“4”
TIP
Tighten the bolts to the specified torque in two steps and in
order from “1”–“4”.
2. Install:
• Cylinder head assembly #2
• Cylinder head bolt “1”–“4”
TIP
Tighten the bolts to the specified torque in two steps and in
order from “1”–“4”.
Warpage limit:
0.1 mm (0.0039 in)
4
1
4
23
Cylinder head bolt:
1st: 25 N·m (2.5 kgf·m, 18 lb·ft)
2nd: 45 N·m (4.5 kgf·m, 33 lb·ft)
T
R
.
.
4
1
4
23
Cylinder head bolt:
1st: 25 N·m (2.5 kgf·m, 18 lb·ft)
2nd: 45 N·m (4.5 kgf·m, 33 lb·ft)
T
R
.
.
