Yamaha EH63 - Removing the Flywheel and Stator Coil Assembly

TCI UNITS, FLYWHEEL AND STATOR COIL ASSEMBLY
3-21
1
2
3
4
5
6
7
8
9
10
ENGINE
REMOVING THE FLYWHEEL AND STATOR COIL
ASSEMBLY
1. Remove:
• Air filter
(Refer to “AIR FILTER” on page 3-3.)
2. Remove:
• Fan case and fan
(Refer to “CASE AND FAN” on page 3-14.)
3. Remove:
• Rectifier/regulator
(Refer to “RECTIFIER/REGULATOR” on page
3-13.)
4. Remove:
• Cylinder covers
(Refer to “CYLINDER COVERS” on page 3-17.)

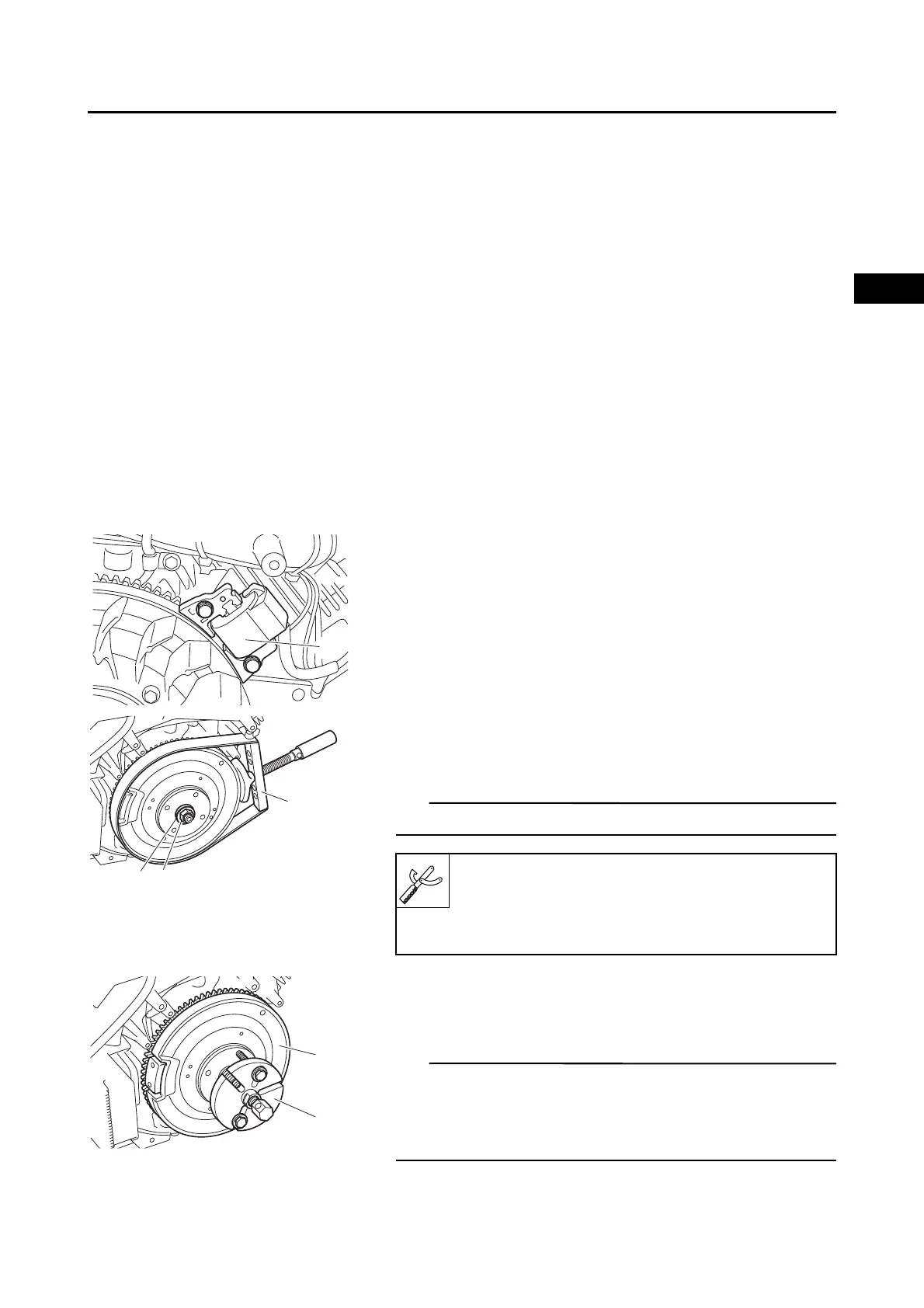

5. Remove:
•TCI units “1”
6. Remove:
• Flywheel nut “1”
• Washer “2”
TIP
Attach the sheave holder “3” to hold the flywheel.
7. Remove:
• Flywheel “1”
• Woodruff key
TIP
• Remove the flywheel “1” using the flywheel puller “2”.
• Fully tighten the tool holding bolts, making sure the tool
body is parallel with the flywheel. If necessary, one bolt
may be backed out slightly to level the tool body.
1
1
3
2
Sheave holder:
90890-01701
Primary clutch holder:
YS-01880-A
1
2
