Yamaha EH63 - Flywheel and Stator Coil Assembly

TCI UNITS, FLYWHEEL AND STATOR COIL ASSEMBLY
3-20
1
2
3
4
5
6
7
8
9
10
ENGINE

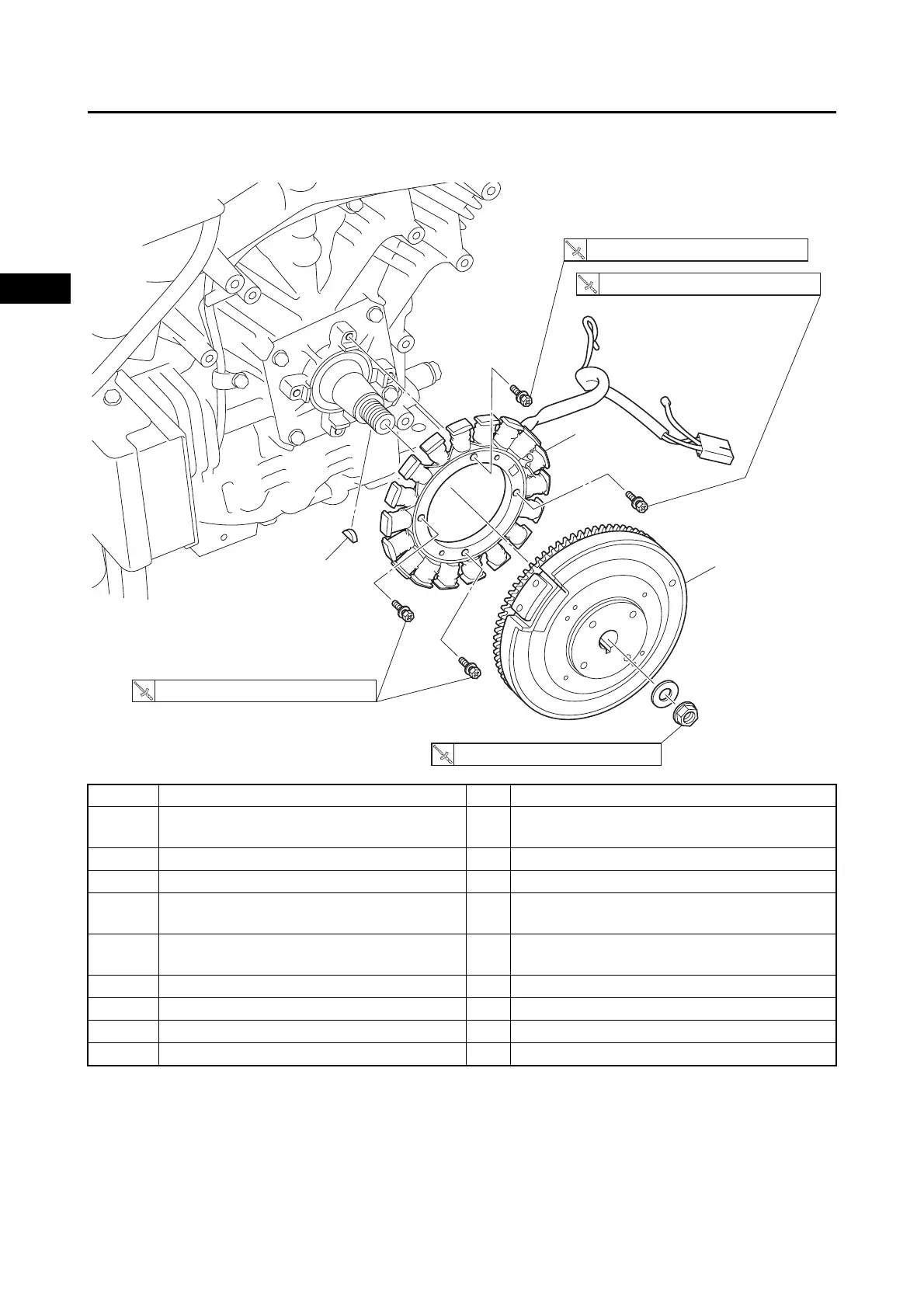

FLYWHEEL AND STATOR COIL ASSEMBLY
Order Job/Parts to remove Q’ty Remarks
Removing the flywheel and stator coil
assembly
Remove the parts in the order listed.
Air filter Refer to “AIR FILTER” on page 3-3.
Fan case and fan Refer to “CASE AND FAN” on page 3-14.
Rectifier/regulator
Refer to “RECTIFIER/REGULATOR” on page
3-13.
Cylinder cover
Refer to “CYLINDER COVERS” on page
3-17.
TCI unit Refer to “TCI UNITS” on page 3-19.
1Flywheel 1
2 Stator coil assembly 1
3 Woodruff key 1
3.4 N・m (0.34 kgf・m, 2.5 lb・ft)
3.4 N・m (0.34 kgf・m, 2.5 lb・ft)
110 N・m (11 kgf・m, 81 lb・ft)
1
2
3
3.4 N・m (0.34 kgf・m, 2.5 lb・ft)
