Yamaha EH63 - Cylinder Head #2

CYLINDER HEAD COVERS, CYLINDER HEADS
3-29
1
2
3
4
5
6
7
8
9
10
ENGINE

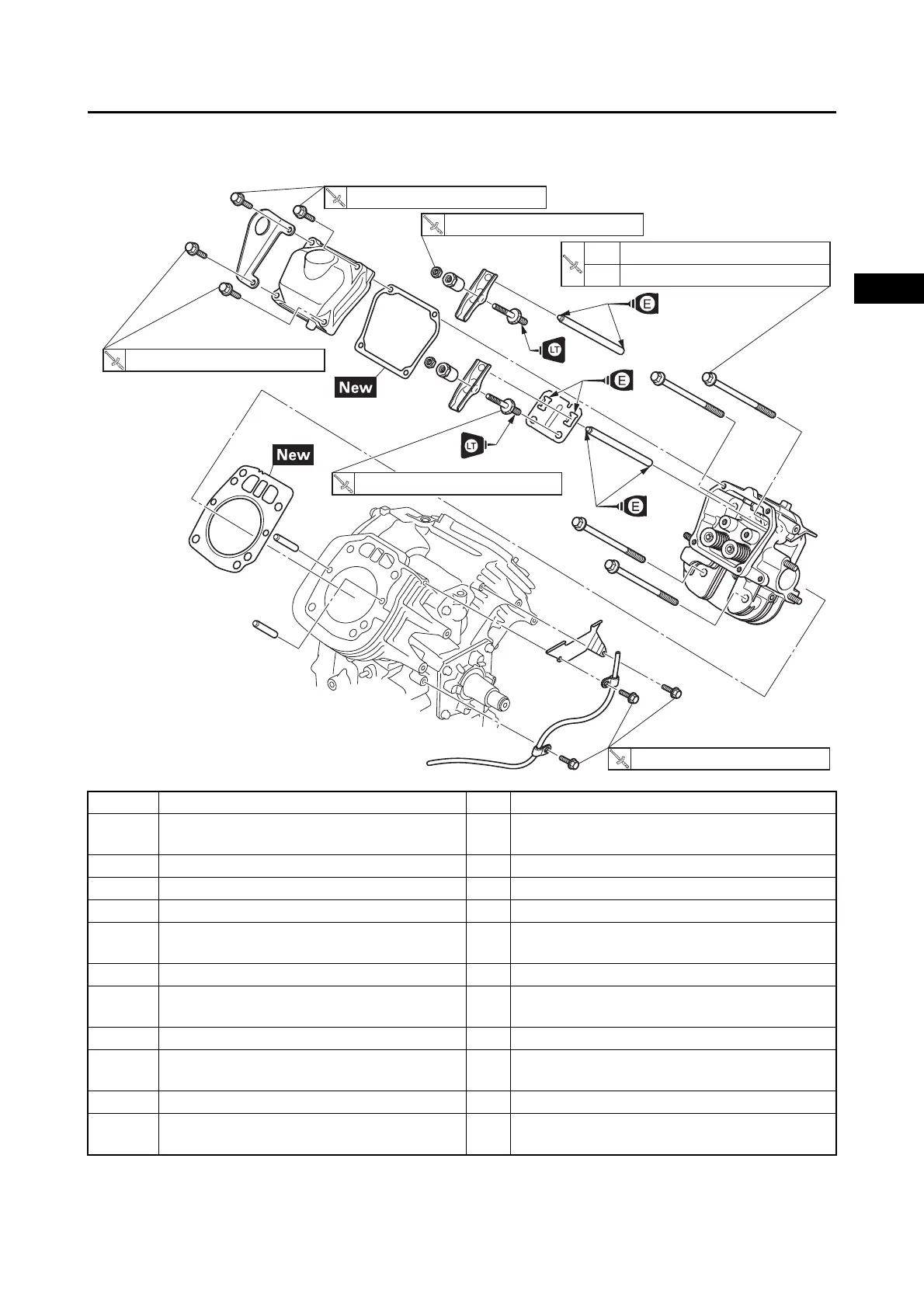

CYLINDER HEAD #2
Order Job/Parts to remove Q’ty Remarks
Removing the cylinder head cover and
cylinder head
Remove the parts in the order listed.
Muffler Refer to “MUFFLER” on page 3-5.
Air filter Refer to “AIR FILTER” on page 3-3.
Fan case and fan Refer to “CASE AND FAN” on page 3-14.
Rectifier/regulator
Refer to “RECTIFIER/REGULATOR” on page
3-13.
Fuel pump Refer to “FUEL PUMP” on page 4-1.
Cylinder cover
Refer to “CYLINDER COVERS” on page
3-17.
TCI unit Refer to “TCI UNITS” on page 3-19.
Carburetor
Refer to “CARBURETOR ASSEMBLY” on
page 4-4.
Intake manifold Refer to “INTAKE MANIFOLD” on page 4-14.
Starter motor assembly
Refer to “REMOVING THE STARTER
MOTOR” on page 5-10.
8 N・m (0.8 kgf・m, 5.9 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
45 N・m (4.5 kgf・m, 33 lb・ft)
25 N・m (2.5 kgf・m, 18 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
18 N・m (1.8 kgf・m, 13 lb・ft)
1st
2nd
