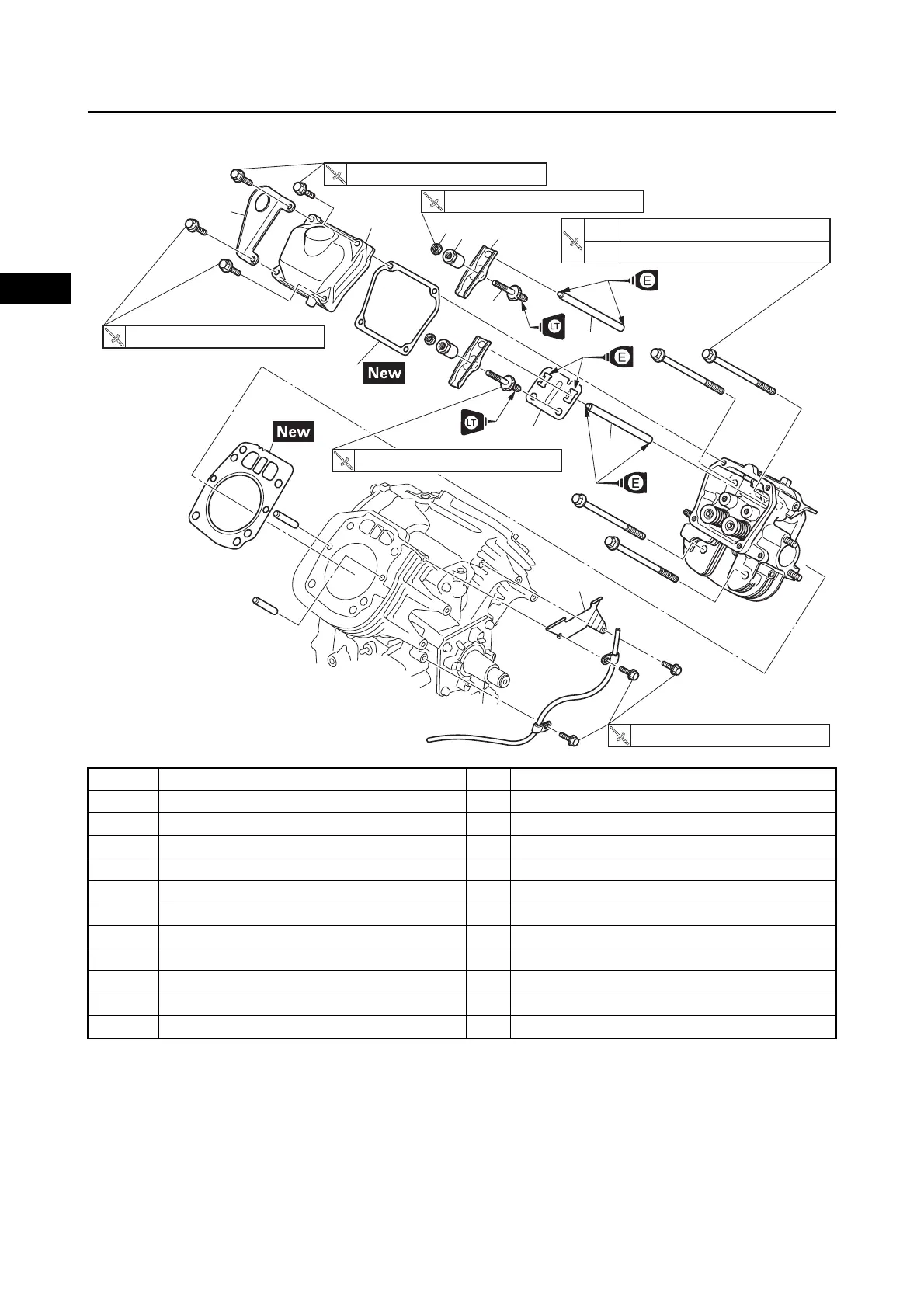

CYLINDER HEAD COVERS, CYLINDER HEADS
3-30
1
2
3
4
5
6
7
8
9
10
ENGINE
Order Job/Parts to remove Q’ty Remarks
1 Engine hanger 1
2 Cylinder head cover 1
3Gasket 1
4 Locknut 2
5 Adjuster 2
6 Rocker arm 2
7 Push rod 1 Intake side
8 Push rod 1 Exhaust side
9 Pivot bolt 2
10 Push rod guide 1
11 Bracket 1 EH64A/EH64K/EH65A/EH65B only
8 N・m (0.8 kgf・m, 5.9 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
45 N・m (4.5 kgf・m, 33 lb・ft)
25 N・m (2.5 kgf・m, 18 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
18 N・m (1.8 kgf・m, 13 lb・ft)
1
2
3
4
5
6
8
7
9
10
11
1st
2nd
