Yamaha EH63 - Crankcase

PISTONS, CAMSHAFT, CRANKCASE, AND CRANKSHAFT
3-47
1
2
3
4
5
6
7
8
9
10
ENGINE
CRANKCASE

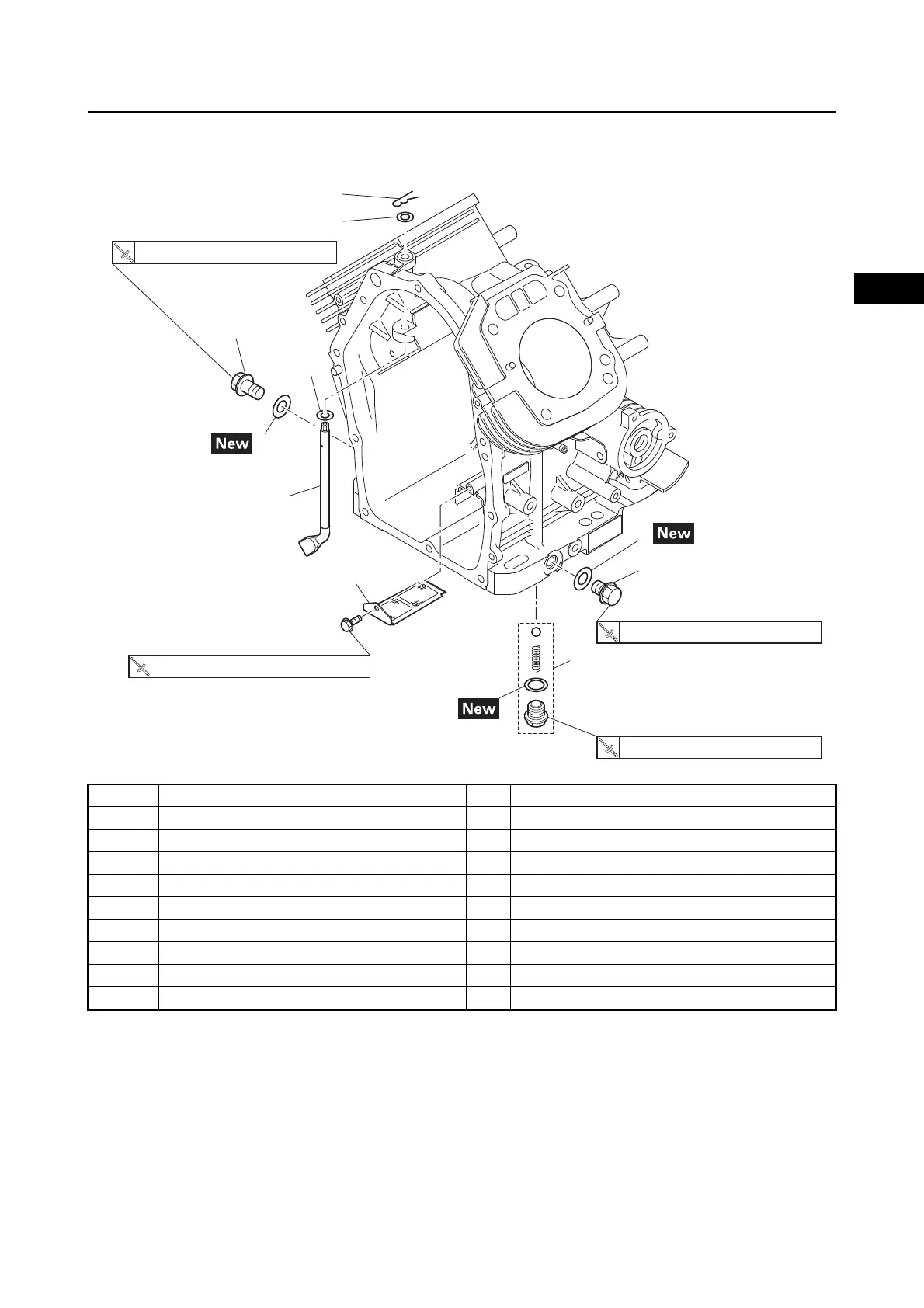

Order Job/Parts to remove Q’ty Remarks
Removing the crankcase Remove the parts in the order listed.
1 Oil drain bolt 2
2Gasket 2
3 Oil pump strainer 1
4Clip 1
5 Washer 1
6 Washer 1
7 Governor fork 1
8 Relief valve 1
1
3
7
2
2
1
4
5
8
20 N・m (2.0 kgf・m, 15 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
6
21 N・m (2.1 kgf・m, 15 lb・ft)
21 N・m (2.1 kgf・m, 15 lb・ft)
