Yamaha EH63 - Oil Pump

OIL PUMP
3-41
1
2
3
4
5
6
7
8
9
10
ENGINE

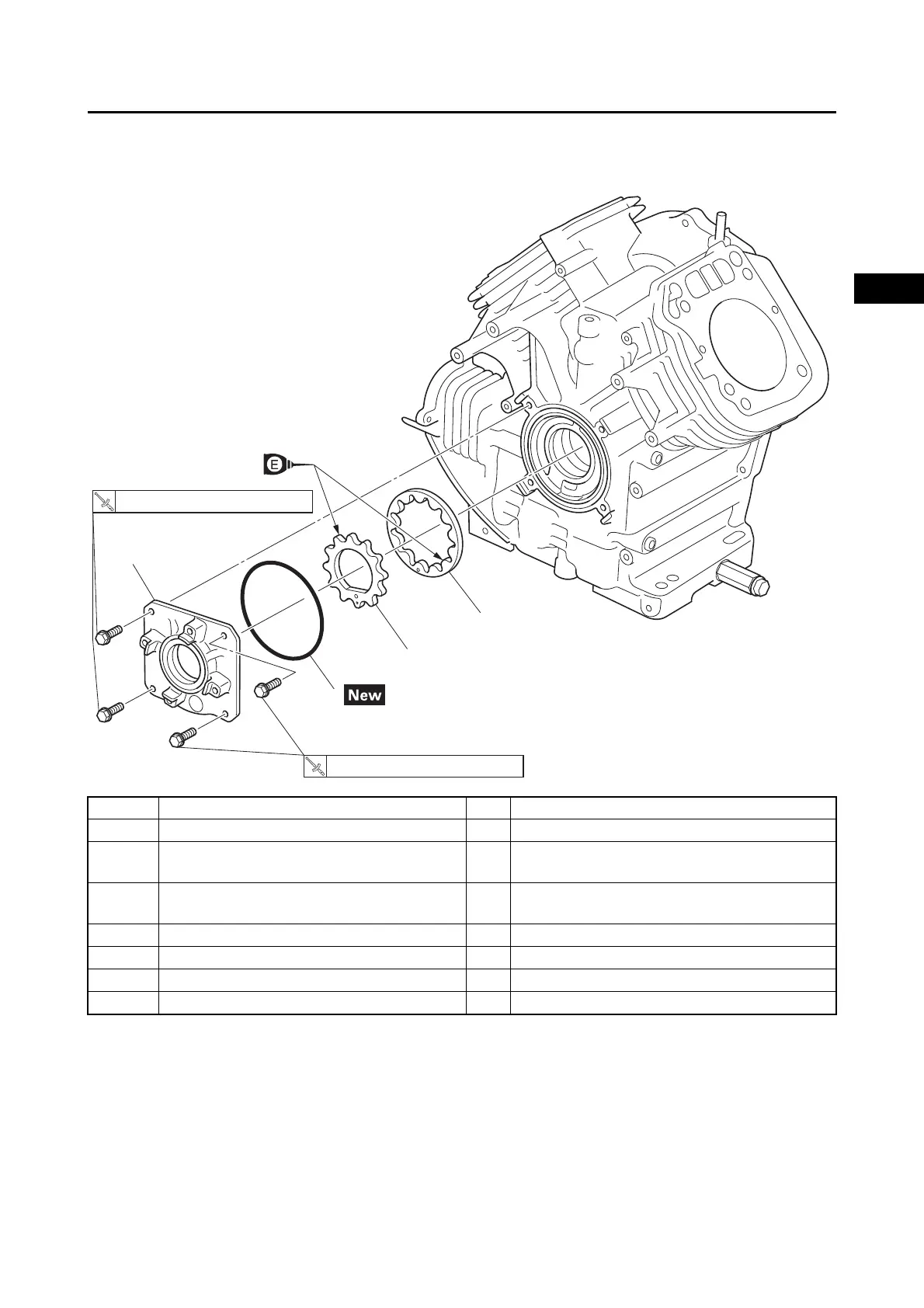

OIL PUMP
Order Job/Parts to remove Q’ty Remarks
Removing the oil pump Remove the parts in the order listed.
Cylinder head assembly
Refer to “CYLINDER HEAD COVERS, CYL-
INDER HEADS” on page 3-26.
Crankshaft
Refer to “PISTONS, CAMSHAFT, CRANK-
CASE, AND CRANKSHAFT” on page 3-44.
1 Oil pump cover 1
2O-ring 1
3 Inner rotor 1
4 Outer rotor 1
8 N・m (0.8 kgf・m, 5.9 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
4
3
2
1
