TCI UNITS, FLYWHEEL AND STATOR COIL ASSEMBLY
3-24
1
2
3
4
5
6
7
8
9
10
ENGINE

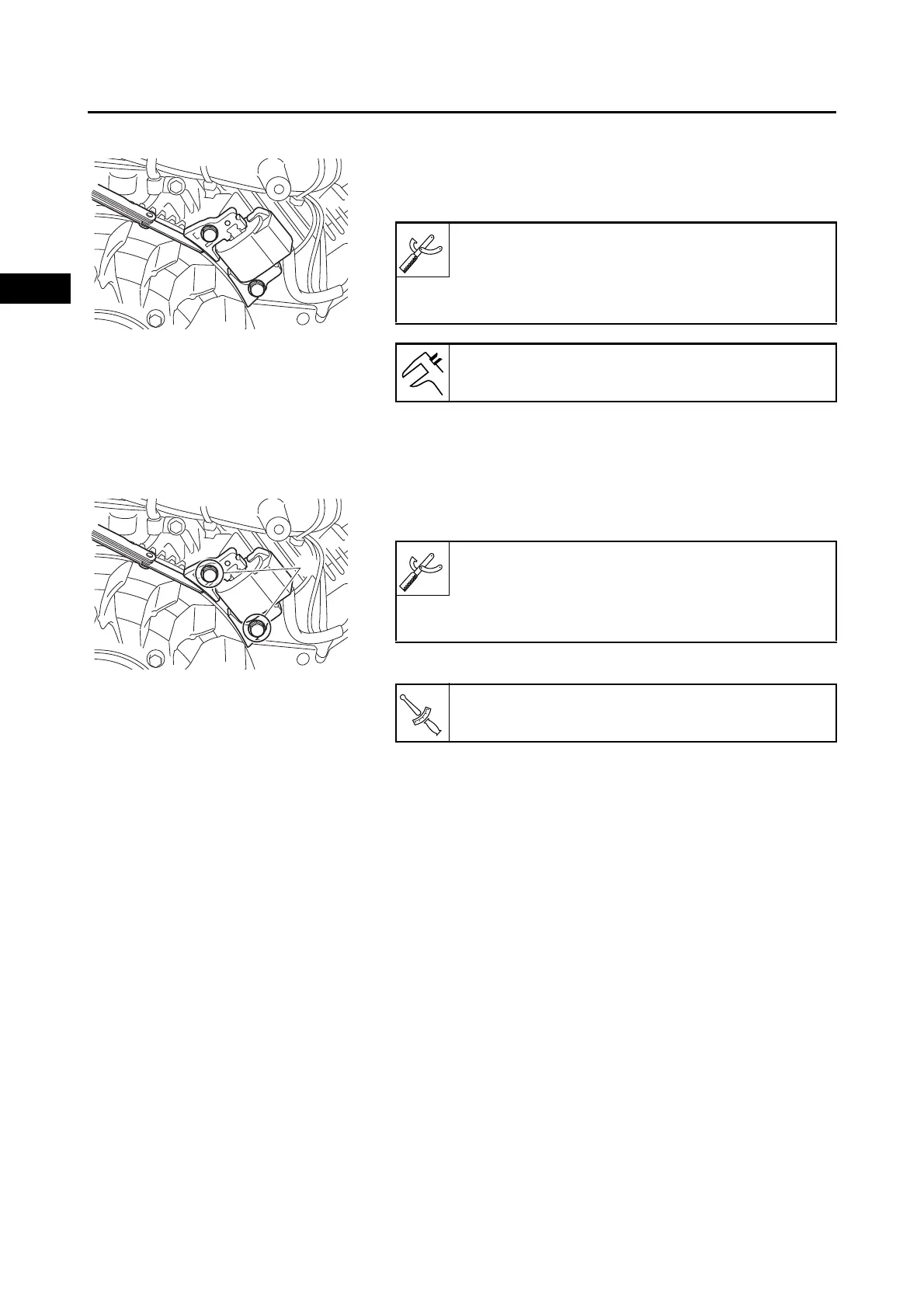

2. Measure:
• TCI unit air gap
Out of specification  Adjust.
3. Adjust:
• TCI unit air gap
Adjustment steps:
a. Loosen the TCI unit bolts “1”.
b. Adjust the TCI unit air gap.
c. Tighten the TCI unit bolts “1”.
Thickness gauge:
90890-03268
Feeler gauge set:
YU-26900-9
TCI unit air gap:
0.3–0.5 mm (0.011–0.019 in)
1
Thickness gauge:
90890-03268
Feeler gauge set:
YU-26900-9
TCI unit bolt:
8 N·m (0.8 kgf·m, 5.9 lb·ft)
T
R
.
.
