Trouble Recovery
107

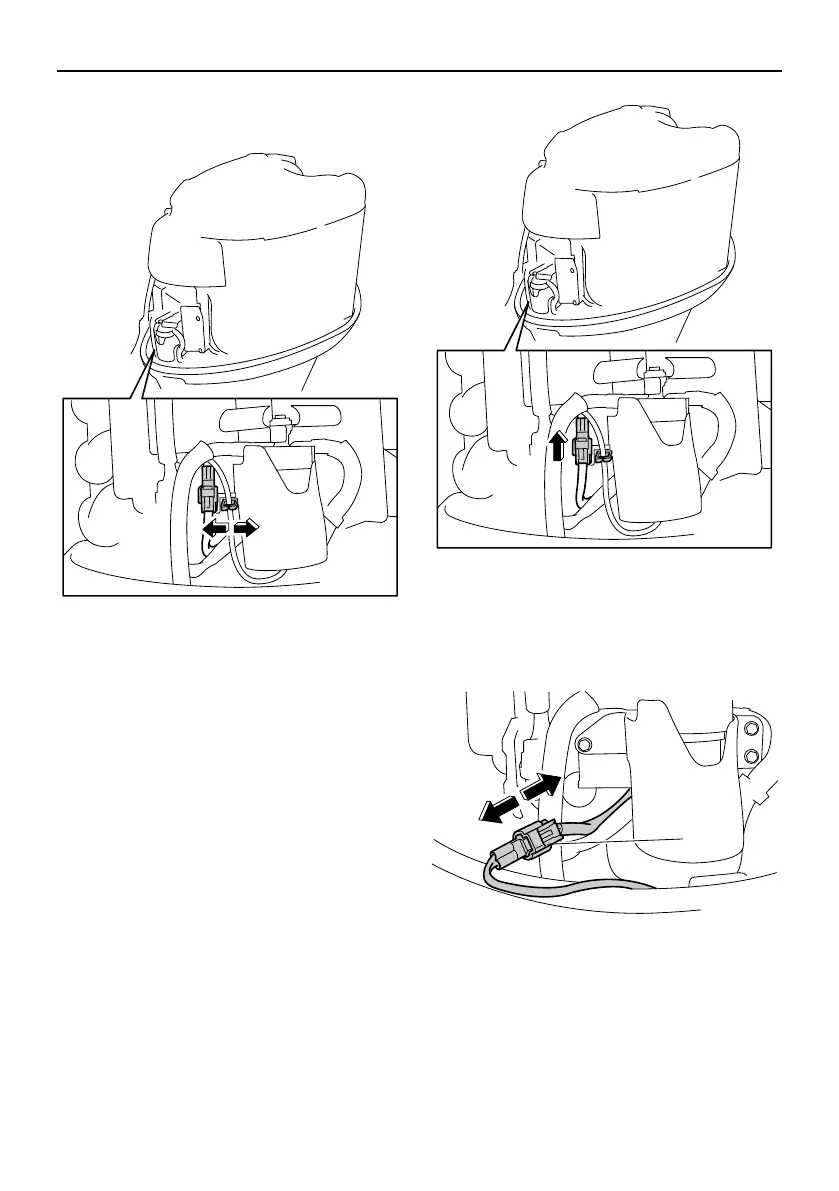

2. Remove the top cowling.
3. Disconnect the lead from the holder.
4. Disconnect the water detection switch
coupler from the holder.
5. Disconnect the water detection switch
coupler. NOTICE: Be careful not to get
any water on the water detection
switch coupler, otherwise a malfunc-
tion could occur.
[ECM01950]
6. Remove the bolts to remove the cover.
1. Water detection switch coupler
6AW-9-25-1E0 107 ページ ２０１０年３月１６日 火曜日 午後５時４５分
